SGS Authorized High Precision Laser Cutting Machine

SGS Authorized High Precision Laser Cutting Machine
Price: US $ 8000-9000/Set
Trade Terms: FOB,CFR
Min Order: 1/Set
Pay Type: L/C,T/T

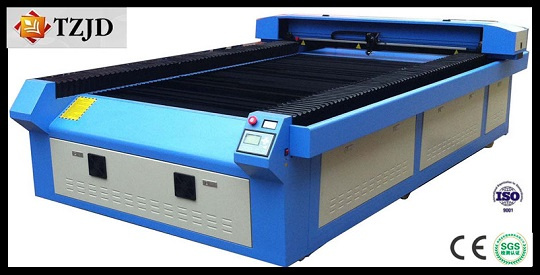

SGS Authorized High precision Laser Cutting machine TZJD-1325L

1. Machine features:
1) Taiwan HIWIN linear guide and precision gear, matched with the advanced DSP Controller, also within stepper/servo motor to ensure the working accuracy.
2) This work table was large enough to bear, extra times were all saved.
3) That working table were all stainless steel material, easily operate and never fray.
4) Continuous & rapid curve cutting function; Selecting shortest path function.
5) USB Interface, with mass storage device; Improve working-speed & working efficiency.
6) LaserCut software compatibility with AutoCAD/Coredraw/Cam/Photoshop/Taijima designing program, output designs directly.

2. Applicable industry:
Label processing, Garment samping, Embroidery, advertising, decoration, arts and crafts, electronics, electric appliances, large format tailoring, mould industry, packing industry, etc.

3. Applicable Materials:
Acrylic, wood planks, label, fabric, paper ware, bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, embroidery, leather, synthetic leather, canvas, artificial leather, glass, marble, crystal, etc.

4. Technical parameters:
Working  area1300mm*2500mm
Laser  power80w/100w/130w/150w/180w
Laser  typeCO2  Sealed  laser  tube  ,   10.6μ m,   water-cooled
Cooling  typeWater  chiller
Engraving  speed0-75000mm/min
Cutting  speed0-50000mm/min
Total  power2KW/H
Drive  motorsStepper/Servo(option)
Laser  output  control0-100%  set  by  software
Min.   engraving  sizeChinese:   1.5mm*1.5mm,   English  letter:     1.0mm*1.0mm
Highest  scanning  precision4000DPI
Locating  accuracy≤ +0.01mm
Controlling  softwareDSP  control  system
Operating  softwareLaserCut
Graphic  format  supportedDST  PLT  BMP  DXF  DWG  AI  LAS, etc
Compatible  softwareCORELDRAW, PHOTOSHOP,   AUTOCAD, TAJIMA, etc.
Color  separationYes
Drive  systemHigh-precision  3-phase  stepper  motor
Auxiliary  equipmentsExhaust  fan  and  air  exhaust  pipe,
red-dot  position  system,
focus  lens  &   reflection  mirrors,
Power  supplyAc110v/AC220V± 10%,   50HZ/60HZ
Working  environmentTemperature: 0-45,   Humidity  5-95%(No  condensate  water)
Working  tableHoneycomb  table/Knife  bar
InterfacePCI  USB
Machine  availablerotary  device,   UP  &   DOWN  system,   auto-focus  device,   etc.

5. Packages: Solid seaworthy wood box package with steel belt.

6. Guarantee and After-sales service:
1)  The quality warranty period is 24 months which counted from the day that the shipping commodity arrived at the port of destination, excluding the physical damage, We will provide you with the fittings for free during the guarantee period. But please kindly note that all users are kindly required to return us the damaged fittings by courier with your charge before we send back the alternative fitting parts. After warranty period, the fittings which you need repaired or changed should be in charge by you, and it will be reasonable charged.
2)  Since it is difficult for our engineer to maintain the machine by face to face, we will create a plenty of online-supports. That is to say, we will give you technical supports by email, MSN/Skype, camera, video, telephone and fax when user meets some problems on installing, operating, adjusting, maintaining, and so on.
3) When you meet some problems with installing, using or adjusting, but our online-support can not solve it, we can offer Door to Door service. If you need our engineer(s) to assemble or maintain or adjust the machine in your area, you would like to be required to assist us to go through the visa formality, traveling expenses prepaid and accommodation arrangement during the business trip and the service period before they dispatched. And please kindly arrange the translating person for the service engineer during their service period. Otherwise, you also can arrange your engineer to come to visit our factory to get a long-term free technical training.

7. Traning to use:
1)  We will supply you with the operation and installation manual in English version together with the machine, including introduction for the composing of equipment, working principle, common knowledge of computer, controlling principle of electronic devices, daily maintenance measures. Personal demonstration will be supplied for equipment installing, adjusting, operating, programming of computer and common malfunction eliminating measures, etc.
2)  We will supply you with brochures for simple trouble shootings of the machine which can help you deal with the common problems happened unexpectedly. Meanwhile, one set of "Instruction Book", "Operation Manual" and "Training Video Disk" for machine / software will be also sent to you together with the machine that could be easily understood and kindly handled by you and your customer.

8. Company information:
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine,advertising machine, marble/stone engraving machine, laser engraving cutting machinemetal mould machine, double heads engraving machine,cylinder engraving machine, etc. The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

9. FAQ:
1) How long is the delivery time?
For standard machines, it would be 5-8 days; For non-standard machines and customized machines according to client s specific requirements, it would be 8 to 15 days.

2) How about the payment terms?
T/T, West Union, L/C

3) Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

4) If some problems happened to this machine during warranty period, what should I do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just let us know, we will give you solutions in 24 hours.

5) What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.

10. Contact information:
Mobile: +86-18615627569

11. Machine accessories:
1draught fan  1
2air pump1
3frigorific water chiller 2
4wind pipe1
5laser power device1
6laser tube(reci)1
7control line2
software (LASERCUT)
controller Card1
power wire2
cotton stick2
focaling stick1
lozengel allen  wrench 3
laser locator1
spanner to load and unload lens1
nut of loading card4
10limit switch1
Prod Model: TZJD-1325L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type: Laser Engraving Cutting Machine
Working Area: 1300mm*2500mm
Laser Tube: 80W 100W 130W 150W 180W
Drive Motor: Stepper, Servo
Certifications: SGS, Ce, ISO 9001, FDA, BV
Guide Rail: Imported Hiwin Square Guide Rails
Control System: Ruida, Leetro
Software: Laserwork
Machine Necessary: Red-DOT Position System, up&Down Table, Auto Focus
Cooling: Water Chiller Cooling System
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.

The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.

Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.

Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.

Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
