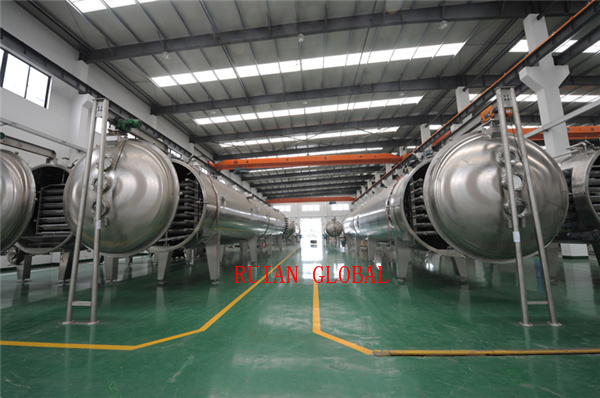

Vacuum Liquid Continuous Dryer for Animal Albumen
| Price: |
US $ 50000-500000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
Vacuum Liquid Continuous Dryer For Animal Albumen
Application:Vacuum belt dryer (B) for liquid&paste is mainly used in drying many kinds of liquid or paste raw material, such as traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer.For above materials, VBD is the best choice:Pharmaceutical industry:Chinese medicine extract, plant extract, egg embryo, PVPK series, fermenting liquid etcFood industry:malt extract, carbohydrate, instant beverage, tea powder, cocoa powder, corn paste etc Chemical Industry:lithium battery,etc
Product Description:1.It meets the GMP hygienic requirements to realize drying by finishing continuous charging,continuous discharging and grinding under vacuum condition;2.It can realize controllable drying temperature(30ºC-145ºC) ,unchanged thermal sensitivity of materials,recover ability of 95%solvent as to solvent materials and vacuum drying of oxidizing materials without oxidation; 3.It can finish drying,grinding,and granulating under vacuum condition; 4.Continuous discharging starts after 20--60minutes,with product yield up to 99%; 5.Highly sticky materials will not stick to the belt(which is Teflon PTFE),and crystal materials will not damage the crystal form after drying; 6.The moisture content of the dried product can optimize such major parameters as temperature,vacuum degree and speed of the drying process,enabling the utilization of the equipment to achieve the best economic benefit;7.It adopts PLC automatic programming control system to realize high-degree automation and greatly reduce labor operating costs; 8.Its operating cost is only one third of or even lower than of its similar drying equipment; 9.CIP automatic online cleaning system with various cleaning methods can clean the equipment completely and quickly after drying and meet the GMP requirements;10. It is suitable for large-scale,continuous and automatic operation. Working PrincipleThis equipment is a vacuum chamber where a material conveying guide belt(Teflon PTFE) is fixed in it.Materials are distributed continuously on the guide belt after they pass through the vacuum continuous distributor on the top of the equipment. Based on material propertise,the material distribution thickness is adjustable (3mm_30mm).The guide belt keeps conveying slowly to the other end,with the heating zone under it to provide drying heat for the belt,so the materials on the belt evaporate water during convoying constantly and the vapor is quickly removed by vacuum. The materials will automatically fall on the second_layer guide belt when they reach the end of the equipment,and they will repeat the operation again and again until they meet the drying requirements. Multi layer structure can be designed according to material process requirements. With(40ºC-180ºC) temperature for each layer and adjustable running speed, this equipment is suitable for drying curve required by all kinds of materials and realizes mild drying. Finally the material fall into the conveying chute at the discharging end,conveyed to the exit hole by the screw conveyor,and then delivered to the material_receiving barrel after grinding and sieving by the sieve device with adjustable mesh (20_200). The drying is finished after continuous discharging.
Advantages:Short drying time (adjustable between 30-90 minutes)Minimum loss of aromaHigh yield of final products(99%)No Oxidation of productSolvent recycling possibleLow product temperatures (adjustable between 20°C-150°C)Less energy consumptionCompletely closed systemEnvironment friendlyGood instant properties of the drier productsPLC Automatic control systemCIP Cleaning systemGMP Standards Parameter:| Model | BVD101-0.4 | BVD101 | BVD205 | BVD210 | BVD330 | BVD450 | BVD570 | BVD690 | BVD8140 |
| Evaporation capacity(kg/h) | 0.5~1 | 1~2 | 5~0 | 10~15 | 25~35 | 50~65 | 70~90 | 80~110 | 120~160 |
| Inner diameter of main machine(mm) | 600 | 800 | 1000 | 1400 | 1600 | 1900 | 2300 | 2500 | 3000 |
| Length of main machine(mm) | 4000 | 7500 | 9000 | 11000 | 13500 | 15500 | 15500 | 18500 | 20000 |
| Height of main machine(mm) | 1800 | 2000 | 2200 | 2200 | 3200 | 3500 | 3800 | 4000 | 4200 |
| Width of belt(mm) | 380 | 460 | 700 | 900 | 900 | 1200 | 1200 | 1200 | 1200 |
| Heat exchange area(m2) | 0.5 | 1 | 5 | 10 | 30 | 50 | 70 | 90 | 140 |
| Area of condenser(m2) | 3 | 5 | 10 | 15 | 20 | 35 | 45 | 52 | 70 |
| Total Installing power(kw) | 4.5 | 7.5 | 14 | 17 | 23 | 45 | 65 | 90 | 120 |
| Prod Model: |
BVD |
| Type: |
Preparation Machinery |
| Finished Dosage Form: |
Granules |
| Certification: |
ISO |
Our company is a professional manufacturer of pharmaceutical, food, chemical industry equipment, our products include extraction equipment, stainless steel pressure vessel equipment, food additives and detergent fermentation system, liquid mixing system, food and chemical industry etc...
API equipment: Herb cutter, washing machine, herb grinder, extraction equipment, concentrator, purification equipment, drying equipment etc...
Packing equipment: Tube filling machine, blister packing machine, liquid packaging machine, carton packing machine, capsule filling machine etc.
Granulating equipment: Wet granulating machine, granulator, dry granulator, boiling dryer, spray dryer, vacuum drying machine, tablet pressing machine, coating machine etc...
Preparation equipment: Multi effect distilled water machine, pure water RO system, pure steam generator, liquid distribution system, CIP cleaning system and liquid packing system
Because we supply good quality machine and competitive price, we also supply good service to customer, so our machine is popular on the world, we welcome all the friends come to our company to check the machine and we warmly hope that we can do our best for you.
