SHANDONG PEF MACHINE TOOL CO., LTD. >> Heavy Model Marble 3D CNC Stone Sculpture Engraving Machine

Heavy Model Marble 3D CNC Stone Sculpture Engraving Machine

Heavy Model Marble 3D CNC Stone Sculpture Engraving Machine
Price: US $ 7000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
1300*2500mm wood cnc machine
PEF S1325B is standard stone engraving machine with heavy duty design, we offer customer-designed service, you just need to tell us your requirements or the workpiece size, materials and we'll give our suggestion

LOOK for agents all over the world!!!
•3 axis with dust proof;
•4 wheels on the front of the table, make the load heavy stone easy;
•With wheels in front for easy put on material;
•#25 Taiwan Linear guide and high precision ball screw;
•Water tank with water cooling sprayer to cool the tool when working;
Working area(mm) 1300*2500*300mm
Table Structure  T-slot table with 25mm hard PVC
Transmission system X,Y axis Gear Rack and z axis Ball screw from Taiwan but with German technology
Lead rail system Taiwan Linear round guide rail
Spindle power 6kw Water-cooling ,3.175/4/6/12.7mm
spindle speed 0-18000 rpm
Motor YAKO easy servo motor(stepper/Yaskawa servo optional)
Drive YAKO easy servo diver
Dust collector system For your option
Tool sensor Option
Software environment Windows 98/2000/XP
Control SystemOriginal NK105 [NC Studio and DSP is optional]
Compatible file formats G code ; *.u00 ; *.mmg ; *.plt
Compatible Softwares Ucancam V8 / Artcam
Working Voltage AC380V,3ph, 50Hz
Precision 0.2mm
Max speed 35m/min
Max engraving speed 15m/min
Max feeding height  300mm
Work-holding devices by fixture
Interface type USB

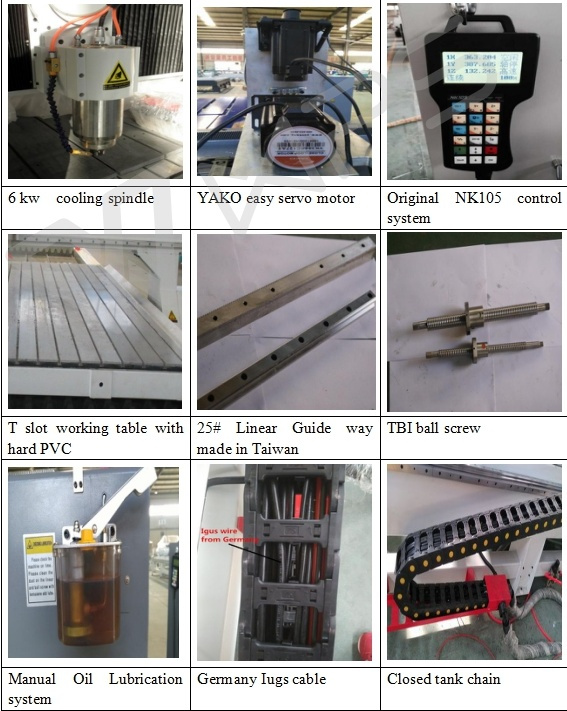

Main parts configuration and picture



Applications industry and material
1. Marble,granite,sandstone,glass,artificialstone,headstone,tablet,such as ceramic engraving and cutting material;
2. Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,headboards and so on;
3. Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.

1,The first use of this machine, it is easy to operate?

---There are English manual or guide video that show how to use machine.If you still have any queation,we can talk from phone or whatsapp.

2,If machine has any problem after I ordered it,how could I do ?

---Free parts send to you in machine warranty period if machine have any problem.

3,Free after-sales service time for machines?

---Please feel free contact us if your machine have any problem,we will give you 24 hours service from phone ,skype and whatsapp.


----T/T (30% in advance, balance before delivery)

5,MOQ and transport?

---Our MOQ is 1 set machine.We could send machine to your country port or your factory.Please tell us your port name or your detailed address.

6,What information do you need to know if you need the machine?

---Please tell us what kind of material you processed and the size and thickness of the material,and please send me the finished picture for our reference.

Our services
Guarantee and After-sales Service:
a,Guarantee for one year.
b,24-hour technical support by email ,calling and masseaging
c,User-friendly English manual for machine

Using and Maintaining
a,Free technician traning for large customers
b,Engineers available to service machinery overseas

if you have any questions ,please feel free to contact me!
ADD: 515 ,Rongxiang Business Building ,Lashan N RD,Huaiyin  District ,Jinan ,Shandong ,China
TEL: 0531-83445666   FAX: 0531-83445666

Nora Wang

Prod Model: F7-S1325B
Condition: New
Warranty: 12 Months
Drive Mode: Yako Easy Servo Motor and Drivers
Voltage: AC220V/380V
Weight: 1500kgs
Delivery Time: 20 Days After Get Deposite
Shandong PEF Machine tool Co., Ltd is one large High-Tech enterprise which specialized in designing, developing and producing various CNC machine and gantry machining centers. All the products have been approved by ISO9001: 2000 and CE, we achieve ERP strategy and have independent right to export and import.

Our factory in Qihe Economic Development Zone of Shandong Province, which with 13000 modern plant, have over 150 workers and 60 professional technician. In order to make all mechanical components with high process precision, we use exported USA HASS CNC Process Center, USA Leader Metrology Three Coordinates Testing Center, Taiwan AWEA Gantry CNC Center and other advanced machinery equipment, to ensure our processing manufacturing capabilities keep the absolute leading position in industry field.

Main products High-level Auto-tool Changer CNC Machinery Center, Simple ATC by Multi-workstage CNC Router, Standard Wide Application Woodworking CNC Router, 3D (Three-dimensional) Cylindrical Materials's Carving and Milling CNC Router, 4 Axis and 5 Axis CNC Machine, Multi-head CNC Engraving Machine, Foam/EPS/Wood Molding CNC Machinery for Mould, CNC Router with Plasma Metal Cutting Function Machine etc...

Our products have been widely exported to over 40 countries and areas including Middle East, America and Europe, Southeast Asia, Africa, South America, Russia, etc. With stable reliable product quality, reasonable price and high quality service, we won the praise of customers at home and abroad.
