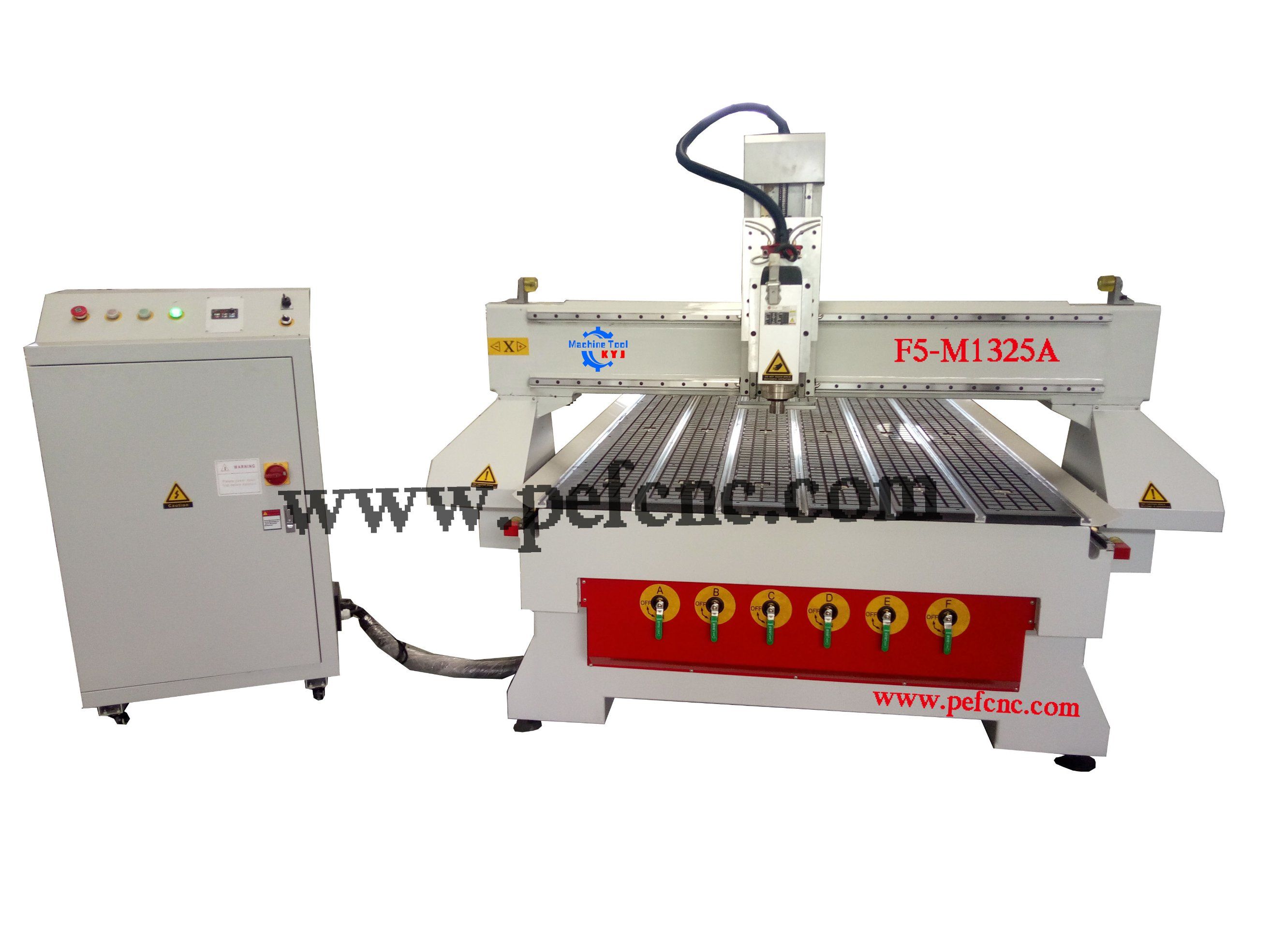

1325 Acrylic/Wood/MDF Carving and Cutting Woodworking wood CNC Router Machine
|Working Area (X*Y*Z)||1300*2500*200mm|

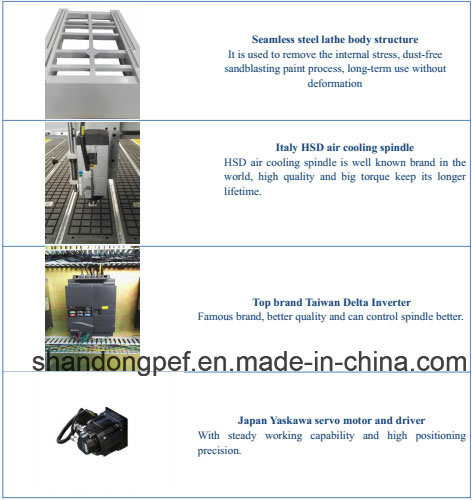

|Structure||Heavy duty strong seamless steel structure|
|Lathe Structure||Seamless Welded Steel Structure|
|Rails||Taiwan 20 Square Rail|
|X,Y Structure||Rack and Pinion Transmission|
|Z Structure||Taiwan TBI φ25mm Ball Screw|
|XYZ Position Precision||+/-0.01mm|
|Max. Idling speed||35m/min|
|Spindle Motor Power||Italy HSD3.2kw ATC cooling spindle, 0-18000rpm/min|
|Working Mode||Yaskawa Stepper Motor and Driver|
|Control system||Weihong NK105 hand control system|
|Command code||G code, HPGL, U00, mmg, plt|
|Working Voltage ||AC380V-/220V-Three Phase (Optional)|
1. Welded with industrial class square tube, which with strong bed. You can use our PEF CNC router more than 10 years;

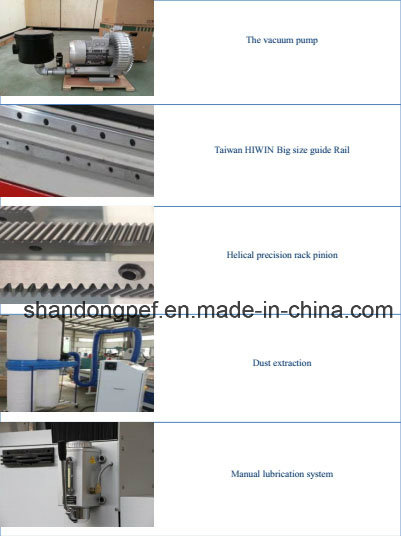

2. Vacuum working table, PVC protection, easily to hold kinds different materials;
3. We can also design vacuum and t-slot table for you, if you also need wood carving;
4. Original NK105 control, very easy operation and support offline which means that you can still operate even though meet power off;
5. China 3.5kw air cooling spindle. China best brand, good using and guaranteed
6. Easy servo system. Big power supply (Stepper and Servo motor for your option);
1. Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on;
2. Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making;
3. Decoration industry: acrylic, PVC, MDF, artificial stone, fiberglass,plastic, and copper and aluminum and other soft metal plate engraving and milling cutting;
1. The first use of this machine, it is easy to operate?
---There are English manual or guide video that show how to use machine.If you still have any queation,we can talk from phone or whatsapp.
2. If machine has any problem after I ordered it,how could I do ?
---Free parts send to you in machine warranty period if machine have any problem.
3. Free after-sales service time for machines?
---Please feel free contact us if your machine have any problem,we will give you 24 hours service from phone ,skype and whatsapp.
---T/T (30% in advance, balance before delivery)
5. What information do you need to know if you need the machine?
---Please tell us what kind of material you processed and the size and thickness of the material,and please send me the finished picture for our reference.
Surviving by integrity, Developing by quality.
Shandong PEF Machine tool Co., Ltd is one large High-Tech enterprise which specialized in designing, developing and producing various CNC machine and gantry machining centers. All the products have been approved by ISO9001: 2000 and CE, we achieve ERP strategy and have independent right to export and import.
Our factory in Qihe Economic Development Zone of Shandong Province, which with 13000 modern plant, have over 150 workers and 60 professional technician. In order to make all mechanical components with high process precision, we use exported USA HASS CNC Process Center, USA Leader Metrology Three Coordinates Testing Center, Taiwan AWEA Gantry CNC Center and other advanced machinery equipment, to ensure our processing manufacturing capabilities keep the absolute leading position in industry field.
Main products High-level Auto-tool Changer CNC Machinery Center, Simple ATC by Multi-workstage CNC Router, Standard Wide Application Woodworking CNC Router, 3D (Three-dimensional) Cylindrical Materials's Carving and Milling CNC Router, 4 Axis and 5 Axis CNC Machine, Multi-head CNC Engraving Machine, Foam/EPS/Wood Molding CNC Machinery for Mould, CNC Router with Plasma Metal Cutting Function Machine etc...
Our products have been widely exported to over 40 countries and areas including Middle East, America and Europe, Southeast Asia, Africa, South America, Russia, etc. With stable reliable product quality, reasonable price and high quality service, we won the praise of customers at home and abroad.
