stone cnc engraving machine for processing mable and granite F7-S1325B

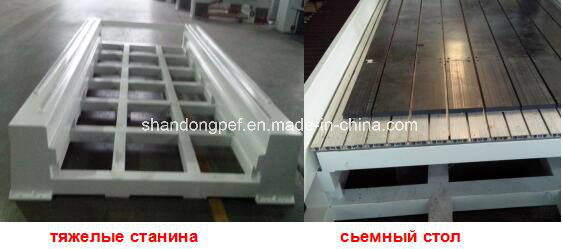

Product Description: | Machine frame | Welded with seamless steel structure |
| Working area | 1500*3000*300mm |
| Table suface | T slot working table with hard PVC |
| Spindle | China 5.5kw water-cooling spindle |
| Inverter | Taiwan Delta inverter |
| Guide rail | HIWIN linear guide rail for XYZ axis |

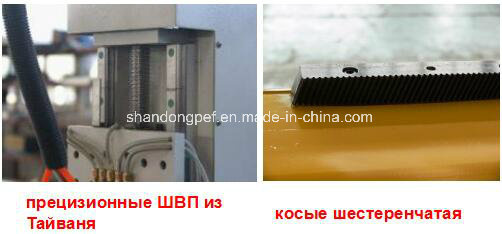

| Transmission | Helical rack and pinion for XY axis, Taiwan TBI ball screw for Z axis |
| Drive mode | servo motor and drives |
| Control system | Weihong NK105 hand control system |
| Lubrication system | Manual lubrication |
| Precision | 0.01mm |
| Max speed | 35m/min |
| Moving Speed | 45m/min |
| Max engraving speed | 15m/min |
| Max feeding height | 300mm |
| Working Voltage | AC380V-/220V-three phase(optional) |
| Net weight | 1700kgs |
| Software | Type3/Artcam/Mastercam/UG |
Standard Features:•3 axis with dust proof;
•6 wheels on the front of the table, make the load heavy stone easy;
•With wheels in front for easy put on material;
•25 Taiwan Linear guide and high precision ball screw;

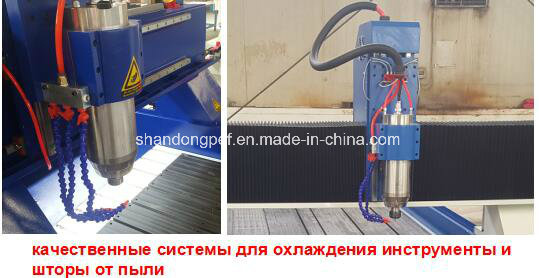

•Water tank with water cooling sprayer to cool the tool when working;
Applicable:1. Marble,granite,sandstone,glass,artificialstone,headstone,tablet,
such as ceramic engraving and cutting material;
2.Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior
doors,headboards and so on;
3.Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other
advertising materials derivatives making.
Applicable materials:Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal
materials.
Shandong PEF Machine tool Co., Ltd is one large High-Tech enterprise which specialized in designing, developing and producing various CNC machine and gantry machining centers. All the products have been approved by ISO9001: 2000 and CE, we achieve ERP strategy and have independent right to export and import.
Our factory in Qihe Economic Development Zone of Shandong Province, which with 13000 modern plant, have over 150 workers and 60 professional technician. In order to make all mechanical components with high process precision, we use exported USA HASS CNC Process Center, USA Leader Metrology Three Coordinates Testing Center, Taiwan AWEA Gantry CNC Center and other advanced machinery equipment, to ensure our processing manufacturing capabilities keep the absolute leading position in industry field.
Main products High-level Auto-tool Changer CNC Machinery Center, Simple ATC by Multi-workstage CNC Router, Standard Wide Application Woodworking CNC Router, 3D (Three-dimensional) Cylindrical Materials's Carving and Milling CNC Router, 4 Axis and 5 Axis CNC Machine, Multi-head CNC Engraving Machine, Foam/EPS/Wood Molding CNC Machinery for Mould, CNC Router with Plasma Metal Cutting Function Machine etc...
Our products have been widely exported to over 40 countries and areas including Middle East, America and Europe, Southeast Asia, Africa, South America, Russia, etc. With stable reliable product quality, reasonable price and high quality service, we won the praise of customers at home and abroad.
