SHANDONG PEF MACHINE TOOL CO., LTD. >> Highlight Acrylic Letter CNC Router CNC Machine (F5-M1325A)

Highlight Acrylic Letter CNC Router CNC Machine (F5-M1325A)

Highlight Acrylic Letter CNC Router CNC Machine (F5-M1325A)
Price: US $ 5999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
LOOK for agents all over the world!!!

Production Description
1300*2500mm wood cnc machine
PEF M1325A is one of classic and best selling router cnc machine. Affordable, low-cost and wide usage, such as for cabinet making, wooden door making etc.. It is equipped with air spindle, original NK105 controller, vacuum table, Taiwan rails and ball screws.

Working size1300*2500*200mm1500*3000*200mm2000*4000*200mm
Table Size1440*3040mm1640*3540mm2140*4540mm
XYZ position precision+/-0.005mm+/-0.005mm+/-0.005mm
Table surfaceT-slot & Vacuum TableT-slot & Vacuum TableT-slot & Vacuum Table
FrameWelded structureWelded structureWelded structure
Max. Idling Speed35m/min35m/min35m/min
Spindle Motor Power3.5KW air cooling spindle3.5KW air cooling spindle3.5KW air cooling spindle
Spindle speed0-18000RPM0-18000RPM0-18000RPM
Working ModeSteeperSteeperSteeper
Drive2811 big YAKO drive2811 big YAKO drive2811 big YAKO drive
InverterFuling 3.7kwFuling 3.7kwFuling 3.7kw
Operating SystemDSP control systemDSP control systemDSP control system
Vacuum systemYes, with 5.5kw pumpYes, with 5.5kw pumpYes, with 5.5kw pump
Work-holdingBy SuctionBy SuctionBy Suction
Lathe StructureSeamless welded steel structureSeamless welded steel structureSeamless welded steel structure
X,Y StructureRack and pinion transmission,Rack and pinion transmission,Rack and pinion transmission,
Z Structureφ25mm Rolling Ball screwφ25mm Rolling Ball screwφ25mm Rolling Ball screw
RailsTaiwn HIWIN 20 square railTaiwn HIWIN 20 square railTaiwn HIWIN 20 square rail
Working VoltageAC380V/50HzAC380V/50HzAC380V/50Hz
CommandG code,HPGL,U00,mmg,pltGcode,HPGL,U00,mmg,pltG code,HPGL,U00,mmg,plt

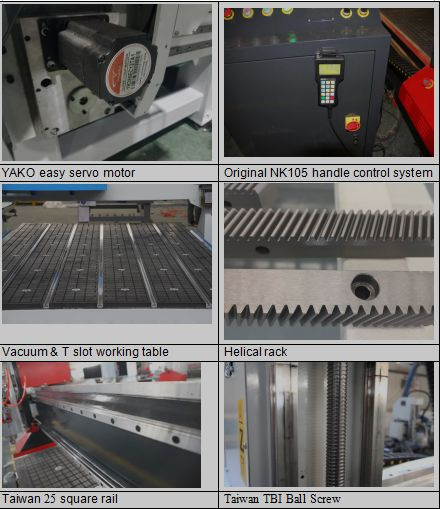

Main parts configuration and picture



Applications industry and material
1.Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on;
2. Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making;
3. Decoration industry: acrylic, PVC, MDF, artificial stone, fiberglass,plastic, and copper and aluminum and other soft metal plate engraving and milling cutting;

other models

1,The first use of this machine, it is easy to operate?

---There are English manual or guide video that show how to use machine.If you still have any queation,we can talk from phone or whatsapp.

2,If machine has any problem after I ordered it,how could I do ?

---Free parts send to you in machine warranty period if machine have any problem.

3,Free after-sales service time for machines?

---Please feel free contact us if your machine have any problem,we will give you 24 hours service from phone ,skype and whatsapp.


----T/T (30% in advance, balance before delivery)

5,MOQ and transport?

---Our MOQ is 1 set machine.We could send machine to your country port or your factory.Please tell us your port name or your detailed address.

6,What information do you need to know if you need the machine?

---Please tell us what kind of material you processed and the size and thickness of the material,and please send me the finished picture for our reference.

Our services
Guarantee and After-sales Service:
a,Guarantee for one year.
b,24-hour technical support by email ,calling and masseaging
c,User-friendly English manual for machine

Using and Maintaining
a,Free technician traning for large customers
b,Engineers available to service machinery overseas

if you have any questions ,please feel free to contact me!
ADD: 515 ,Rongxiang Business Building ,Lashan N RD,Huaiyin  District ,Jinan ,Shandong ,China
TEL: 0531-83445666   FAX: 0531-83445666
Nora Wang


Prod Model: F5-M1325A
Condition: New
Guide Rail: Taiwan 25 Rail Linear Bearings
Lubrication System: Manual Lubrication
Warranty: 12 Months
Table Surface: Vacuum Table
Drive Mode: Yako Easy Servo Motor and Drivers
Vacuum Pump: 5.5kw Water Cooling Vacuum Pump
Place Of Region: Shandong, China(Mainland)
Voltage: AC220V/380V
