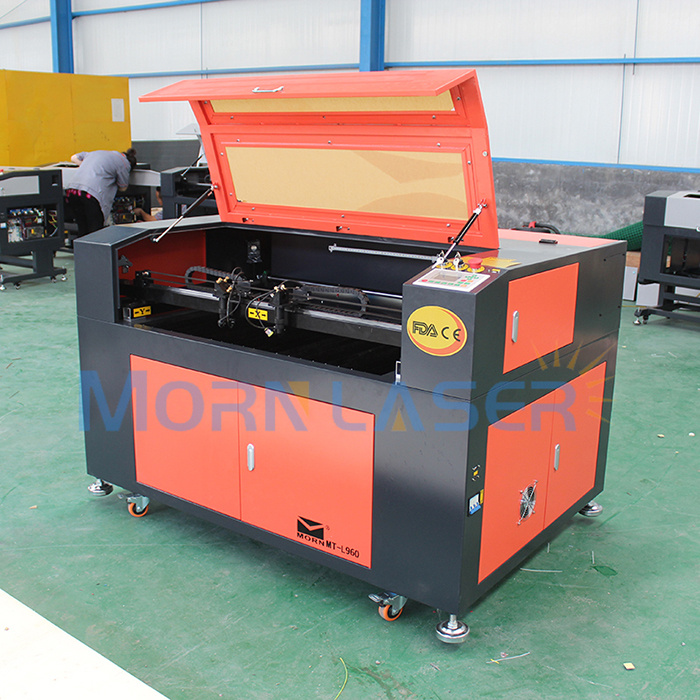

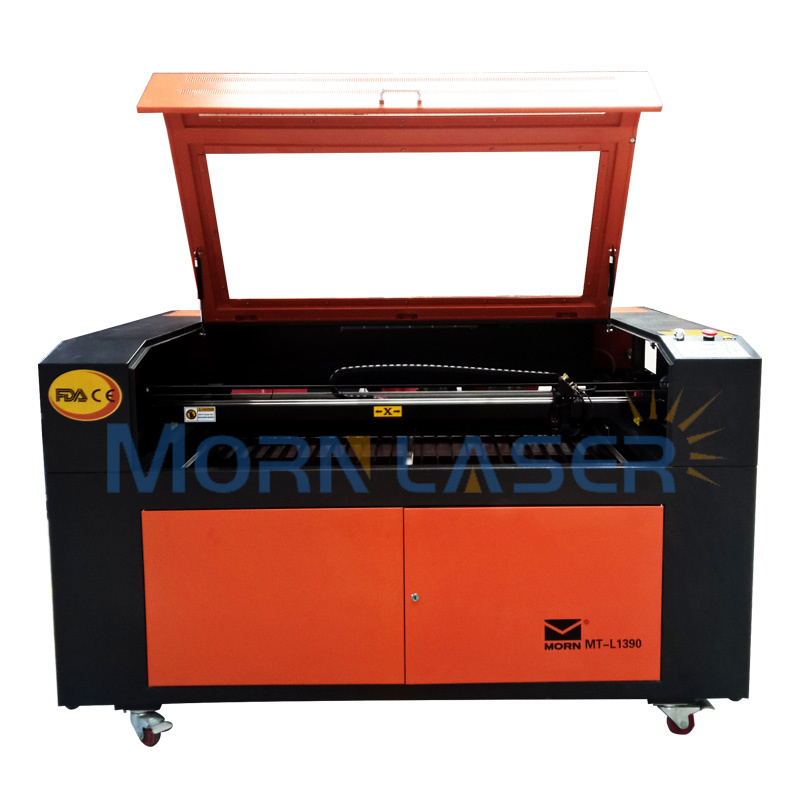

1390 CO2 laser cutting and engraving laser machine
Features:# Working size: 900*600mm ( larger or smaller size can be choosed according your material )
# Laser tube: 2pcs laser tube (80W/100W/130W/150W is optional )

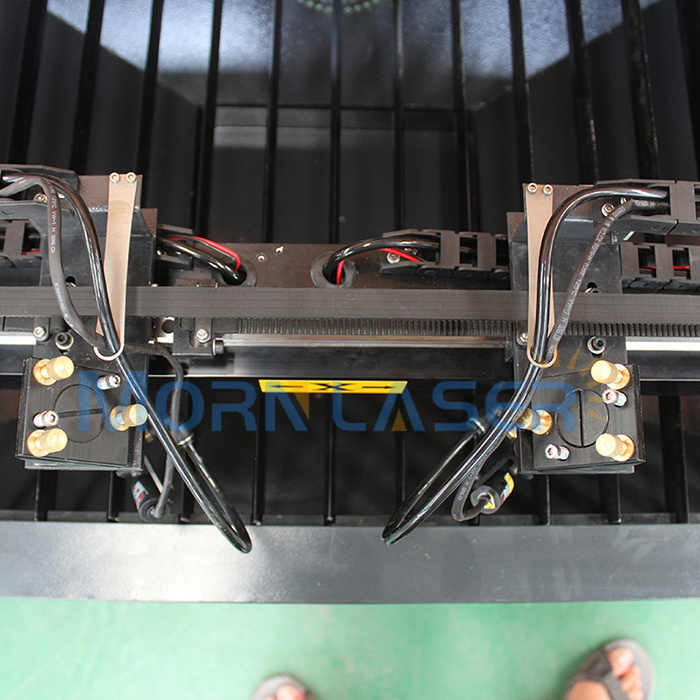

# Laser head: 2pcs laser heads

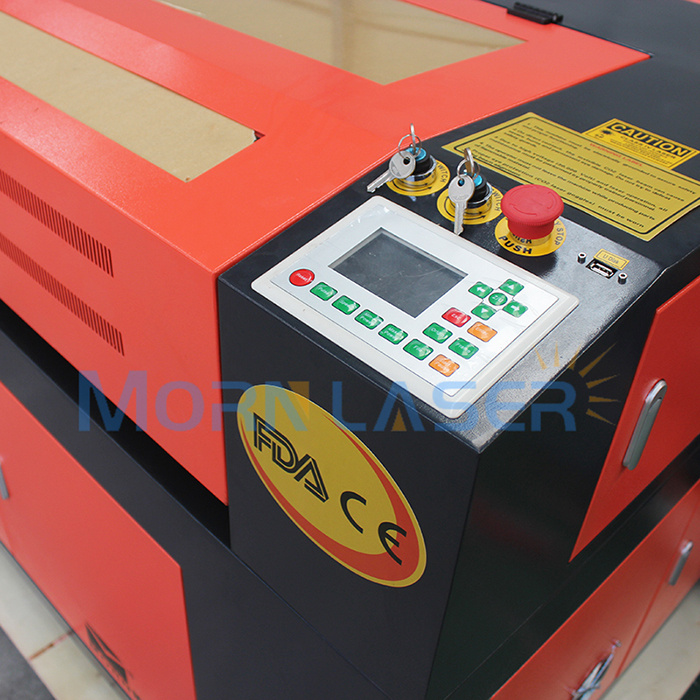

# Control system: Redcam control system
# Lens: Singapore focus and reflection lens
# Guide rail: Taiwan HIWIN linear rail guide
# Cooling system: 2pcs CW3000 water chiller ( CW5000/CW5200/CW6000 optional )
# Table: Aluminum blade or honey comb table can choose
Optional parts:# Electronic up and down work table
# Automatic focus system
# Rotary device(professional working for round products)Parameter:| Machine type | MT-L960D |
| Working area | 1300*2500mm |
| Laser tube type | CO2 sealed glass laser tube |
| Control System | Redcam control system |
| Cooling type | CW3000/CW5000 water chiller optional |
| Laser Power | 80W/100W/130W/150W is optional |
| Lens | Singapore mirrors and lens |
| Guide rail | Taiwan HIWIN square rail guide |
| Resolution ratio | 4500dpi |
| Least moulding character | 1.0X1.0mm english |
| Min line width | <0.15mm |
| Max work speed | 600mm/s |
| Function | Cut and Engrave |
| Front and rear delivery function | Have |
| Voltage | 110V 60HZ / 220V 50HZ |
| Weight | 320kg/380kg ( net/gross ) |
| Package | Veneer case |
Applicable Industry:# Pacaging and engraving industry: Paper engraving and cutting, rubber plate engraving and cutting, etc
# Art and craft industry: Crystal engraving, glass engraving, acrylic engraving and cutting, etc
# Advertisment industry: Acrylic engraving and cutting, color palte engraving, sign carvin, etc
# Clothes industry: leather cutting, fabric design, etc
# Stone industry: marble engraving, photo and text design on granite, etc
# Photo building industry: carving photos on acrylic, photo paper, etc
# Model industry: ABS cutting, model airplane cutting, wood engraving and cutting, etcApplicable materials:Acrylic, Wood, MDF, Leather, Fabric, Rubber, Double color plate, Stone, Glass, Paper, Cardboard, PVC, etc
Package and Deliver Time:# Package: Veneer case
# Deliver time: 25 working days after we received the depositMorn Service and Warranty:1. One yeas warranty for machine, ten months for laser tube
2. Lifetime technical support by free(via email, remote ot online)
3. 24 hours online service to help you use our machine well
4. Will offer you manuel and operation producer when we deliver the machine
5. Offer oversea service for training, installation, operation if necessary
6. Offer trainin at our factory for free (you could visit us and learn in our factory)FAQ:1. Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
2. Does the laser machine can connected to a laptop or desktop computer to work?
A: Yes, the machine have professional port to connect computer and also can connected with other machines. It supports Windows 2000, Windows XP, Win 7 and other operating systems
3. What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
4. How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
5. Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.Similar models for your reference:| Model | Working area | Optional laser power | Electric up-down table |
| MT3050D | 500X300mm | 50W/60W | have |
| MT-L640 | 600X400mm | 50W/60W | have |
| MT-L570 | 700X500mm | 60W/80W | have |
| MT-L960 | 900X600mm | 60W/80W/100W | optional |
| MT-L1390 | 1300X900mm | 60W/80W/100W/130W/150W | optional |
| MT-L1610A | 1600x1000mm | 60W/80W/100W/130W/150W | without |
| MT-L1325 | 1300X2500mm | 60W/80W/100W/130W/150W | optional |
