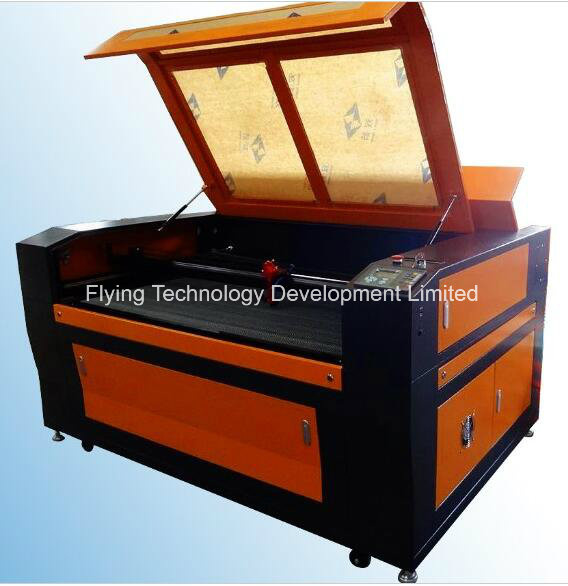

Flying Technology Development Limited >> 1490 CO2 Laser Cutter Cutting Machine

1490 CO2 Laser Cutter Cutting Machine

1490 CO2 Laser Cutter Cutting Machine
Price: US $ 3000-4000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
co2 laser cutting cutter machine FLC1490

Features:
  Equipped with imported dual linear guide,so machine can move stably and cut the adge smoothly. Adopt three-phase motors and drivers,belt can move in fast cutting speed and high precision. With front and rear openings, Materials can extend through machine to allow for a larger work product.

Specifications:
ModelFLC1490
Laser-type10.6um CO2 glass laser tube w/ water-cooling
Laser power60W-150W
Working area1400 x 900mm
Max Engraving speed:0-64, 000mm/min
Max cutting speed0-30, 000mm/min
Laser output control1-100% software setting
Location precisionLess than 0.01mm
Highest scanning precision2500DPI
Operating temperature0 - 45
Operating humidity5- 95% non-condensing
Minimum shaping characterEnglish 1.0 x 1.0mm
Graphic format supportedHPGL, BMP, JPEG, PLT, DST, DXF, and AI ...
Driving systemStepper(Optional: Servo)
Cooling modeWater-cooling and protection system

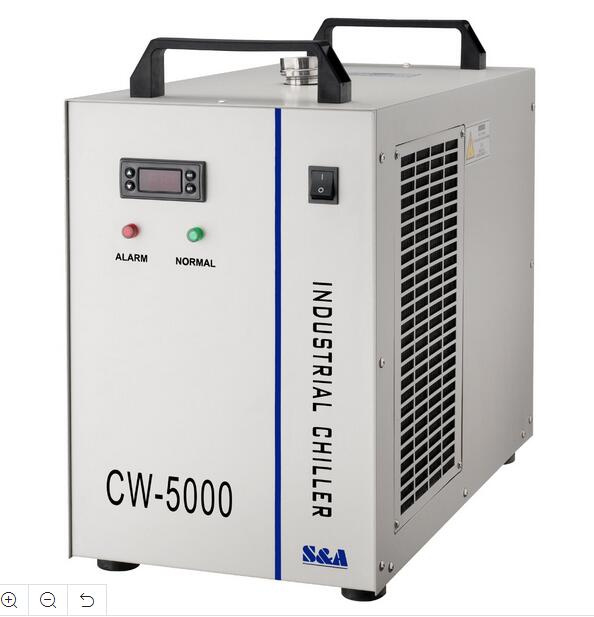

Auxiliary equipmentsExhaust-fans, air-exhaust pipe, air pump, chiller
ControllerDSP
Compatible SoftwareCorelDraw, AutoCAD, Photoshop, TAJIMA
Slope EngravingCan be easily designed within the "Grade Engrave" function.
Color separationUses color property to set function, speed, and laser power

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Cutting Thickness for Partial Materials:
Materials60w80w100w130w150w
Acrylic8mm15mm15mm20mm20mm
Leather ClothOne layerTwo layerTwo layerThree layerThree layer
Wood5mm8mm10mm15mm15mm
Paper3mm6mm8mm8mm8mm
Plastic4mm5mm5mm7mm7mm
Rubber2mm2mm2mm2mm2mm
PVC3mm6mm8mm8mm8mm
MDF3mm6mm8mm10mm10mm
Plywood6mm10mm12mm15mm18mm







Prod Model: FLC1490
Laser Power: 80W-180W
Drive Type: Stepper Drive
Control: CNC
Current: AC
Laser Type: CO2
Certification: Ce
Condition: New
Working Area: 1400*900mm
Flying Technology Development Limited. Was established in 2008. We are well known for our superior quality and service in the field of engineering and manufacturing of Laser Equipment and CNC Router that includes: Laser Engraving and Cutting Machine, CNC Router, CNC plasma cutting machine, Acryling Bending machine, Cutting Plotter, and so on.

Our company is the modern enterprise in combination with resarching, producing and selling, have excellent engineers, technical experts, etc. Each product has its enterprise standard. All of them have the strict quality testing departnment detection, complete with product standards. The product passed the European Union CE authentication and American FDA certificate, the products are sold in eighty countries. Most of the m- aterials which the product use for imported steel and electrical devices, true material anticipates, worth of the money. The employee of our company is very rigorous, serious and responsible. The product from design to production, every link excellence, plus factory's strict inspection so that making the product has excellent quality and minimum malfunction probalility.

Our company is famous for high quality and better after-sale service as the competitive price. Our products are widely used in the following industry, such as Woodworking, Advertising, Artmaking, Model, Electric, CAD/CAM Industry Model, Clothing, Package Printing, Marking, Laser Sealing and so on.

We are searching the distributors around the world. Hope we can cooperate for the world market.
