150W Greeting Cards Laser Marking Machine with 650*650mm Big Working Area
| Price: |
US $ 32000-70000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
150W Greeting Cards Laser Marking Machine with 650*650mm Big Working Area | Model No | Working area | G.W | Packing Dimension |
| GLD-100 | 550mm*550mm | 330KG | 1800mm*1600mm*1800mm |
| GLD-150 | 650mm*650mm | 340KG | 2000mm*1600mm*1800mm |
| GLD-275 | 800mm*800mm | 350KG | 2200mm*1600mm*1800mm |
Product structure :1.Adopts original imported RF laser generator from USA and Germany to ensure the high marking speed. precise beam quality.
2.Stable output performance and long lifetime. Under our professional software control circumstance,.

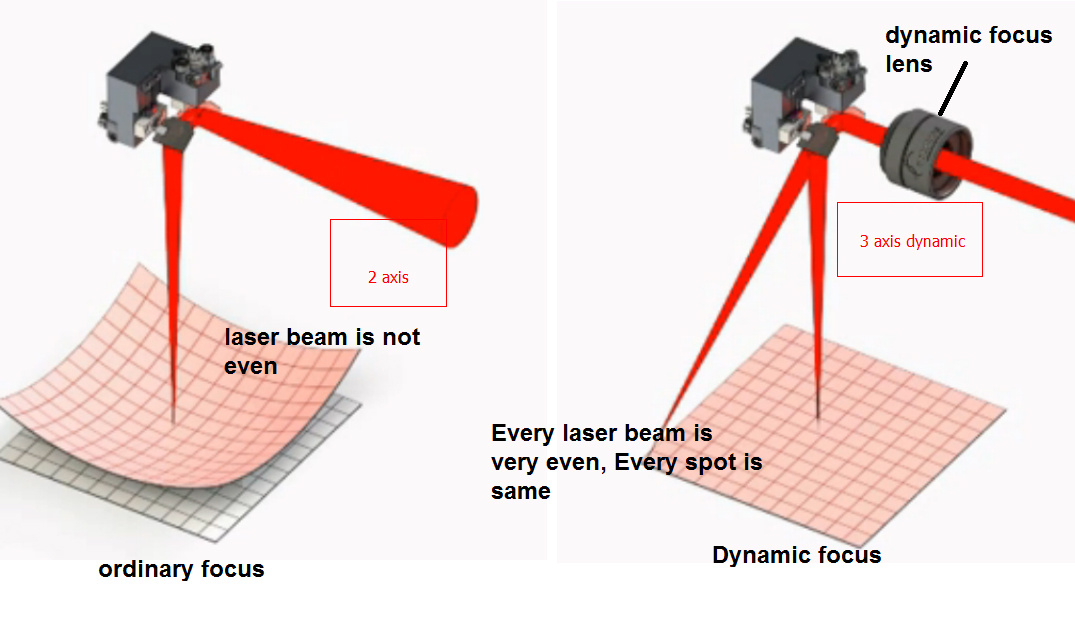

3. The combination of USA digit scanner head and 3D dynamic focal system can make the full advantage use of laser application.
New Design
Optical Design : Adopts the whole-sealed laser optical system, free maintenance without adjustment, Therefore , it can be put into use once it is fixed.
Mechanical Design :The 3 axis laser scanning system have compact structure, dust-proof, easy and accyrate assembly, strong anti-jamming features. It has been taken into full consideration to radiate the heat from the scanning motor and driver board in its design, which ensures the stability of system under the cinditions of the long-time running.
Applicable Industry :Footwear, apparel, arts & crafts, bamboo and wooden products, advertisement decoration, packing, furniture, architectural model and so on.
Applicable materials :Leather, rubber, wood, bamboo, organic glass, ceramic tile, plastics, jade , crystal , fabric and other non-metal materials.
Sample ShowGreeting Card Sample
Technical parameters:| Model | GLD-100/ GLD-150/ GLD-300 |
| Wavelength | 10.64 um |
| Average Power | 100W / 150W / 275W |
| Pulse Frequency | 0-130 KHz |
| Marking Area | 550mm*550mm / 650mm*650mm / 800mm*800mm |
| Max.Linear Speed | 7000mm / s |
| Dynamic Axial Response Time | <4ms |
| Min Character | 1mm |
| Repeat Accuracy | ±0.02mm |
| Cooling system | Water-cooling |
| Average Power Consumption | ≤4.5KW |
| Power Voltage | AC220V 30A 50Hz(60Hz) |
| Marking Graph | User - defined character, CAD data |
| Supported Format | BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Working Humidity | 45% - 75% |
| Environment Temperature | 10ºC ~ 30ºC |
| Prod Model: |
GLD-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Power: |
150W |
| Working Area: |
650*650mm |
| Marking Speed: |
8000mm/S |
| Marking Accuracy: |
0.01mm |
| Power Voltage: |
AC220V/110V 50Hz/60Hz |
Dongguan GloryStar Laser Technology Co. Ltd is a Sino-German cooperation laser machine manufacturer in China, which integrates mechanical, optical, electronic technology together. GloryStar laser Tech is one famous brand in China as well as the world. We have exported our machines to over 100 countries and supply the professional laser application for our customers. More than 10K sets laser machines are working in the market by now.
We specialize in export and service of various types of laser machinery, such as:
1. Diode Pump (Side) series laser marking machines. (Apply for electronic component, hardware, tooling, telecommunication, clocks and watches, plastic and glass parts, automobile, medical equipment, jewelry, architecture construction, packing fields. )
2. End Pump laser marking machines. (Apply for plastic products, digital products, precise machinery, jewelry, sanitary appliance, measuring and cutting tooling, clocks and watches, electronic components and applicants, hardware accessories and tools, telecommunication, automobile parts, architecture construction, packing fields, etc. )
3. Fiber laser marking machines. (Widely used in electronic components, medical equipments industries, watches and glasses, IC card industry, plastic tooling industry, mobile phone and PC keyboard, kitchen and bathroom appliance, etc. )
4. CO2 Series laser marking machines. (Widely used in various consumer products, food and beverage packing garment accessories, cloths and crafts, leather and rubber, nameplates, construction and ceramic, jeans, etc. )
5.3D Dynamic Focus Large-Scale laser marking machines. (Apply to art crafts, bamboo and wooden products, advertising decoration, clothing and leather, jewelry and architecture model, etc. )
6. On-Line laser marking machines. (Widely used in medical, chemical, electronic, tobacco, wine, food and beverage industries)
7. Laser cutting/engraving machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
8. Two Head laser cutting machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
9. Video Camera laser cutting machines. (Widely used in woven labels, logos and trademarks, various embroidery badges and crafts, etc. )
10. Shoes Industry Double heads laser cutting/engraving machines. (Widely used in vamp and outsole of shoe manufacturing process, also apply to the leather bag manufacturing industries. )
11. Specially applied for acrylic or MDF cutting machines. (Widely used in Acrylic and MDF board processing)
12. Movable and Exchanging Table laser cutting machines. (Apply for costume, shoes, cases and bags, computer embroidery, model making, electronic components and appliances, toys, furniture decoration, advertisements, arts and crafts, packing and printing, etc. )
13. Rotary Lifted Flat laser cutting machines. (Widely used in leather, cloth, organic glass, acrylic, rubber, plastic, wood, bamboo, ceramic industries. )
14. Auto Feeding and Unloading laser cutting machines. (Apply for garment, toy and handbag industries. )
15. Sheet metal fiber laser cutting machine. ( widely used for cutting steel, Iron, Stainless steel, Aluminum, Copper and other metal materials)
Glory Star can also manufacture the product designed by the customer' S requirement (OEM). We can arrange and negotiate everything for you: Price, transport, import duties, insurance, and taxes. All you have to do is tell us what you want.
Our Motto: Offer good quality, fair price and excellent service
We sincerely welcome our friends from all over the world.
