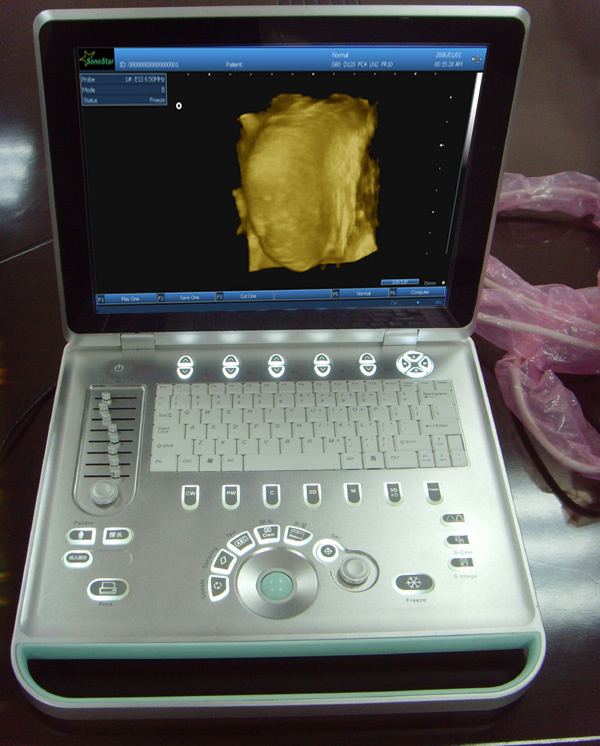

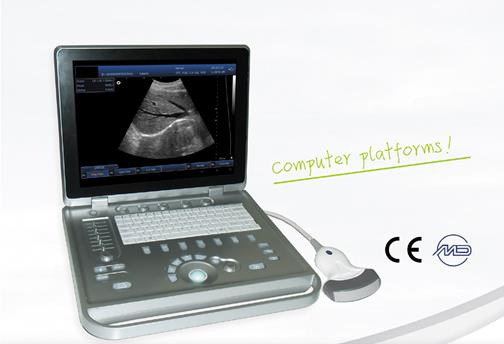

15inch LED Portable Laptop Ultrasound Scanner
| Price: |
US $ 2000-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Feature:-15 inch LED screen-Pretty, thin, and light
-2 probe connector
-Full digital imaging technology, crystal-clear Image

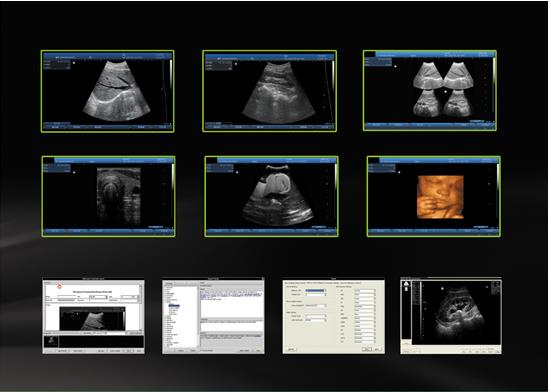

-3D Image function
-PC based, abundant functions
-Detail report edit function
-Powerful image management
-Large volume storage image and cineloop
-Not only can save image but also can save video
-DICOM display and transfer
-Compatible with laser/inkjet printers
-Abundant calculation functions and can select different calculate formula
-Can save and select some groups inspect parameter so save time to adjust per time
-Built-in battery(Work 5 hours)
-Multilingual(English, French, German, Spanish and so on)-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.Specification:-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
-Real-time Zoom on B mode
-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
Measurement and calculation(human): B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.Veterinary: Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image store: by hardisk or USB disk, can save image and also video(avi or swf format)
-3D image function(optional): can get rebuilt 3D image by any probe
-Work time by built-in battery: about 5 hours-Monitor: 15 inch color LED screen
-Probe Connector:2

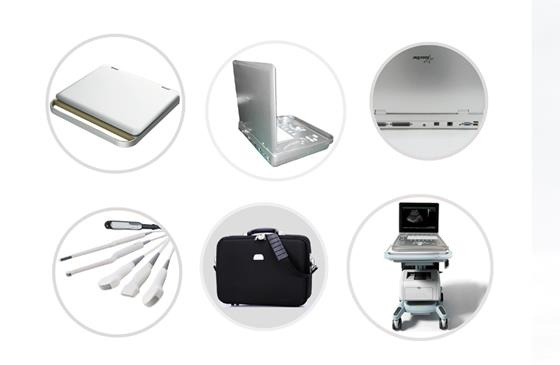

-Dimension: 362mm×340mm×60mm -Weight: Around 4.8Kg Standard Configuration: One main host, one convex probe(3.5MHz), one power adapter, one aluminum trunk.Optional: Linear, Trans-vaginal, Micro-convex,Rectal Probe; Bag; Trolley; Laser Printer.
FAQHow long is the Warranty? Free warranty for 18months,whole-life maintenance. How to make the purchase?Confirm all the details of your order.Provide us your full information for Proforma Invoice.Pay by T/T or other way according to the amount of PI.We will make the shipment to you upon payment collection and provide you tracking number of DHL or other express in 1-2 days.We will keep tracking your parcel till you get it successfully. How to get aftersales service?If any question or problem during your using, please feel free to contact us.We will provide you solutions as soon as we can no later than 24-48 hours.
Please feel free to contact us for much more details
| Prod Model: |
TY-6868S-1 Plus |
| Probes: |
Two |
| Monitor Size: |
15inch |
Wuhan Tianyi Electronics Co., Ltd. Was founded in 1998. It is a high-tech joint-stock enterprise, specializing in medical equipment research, development, production and sales, including B_ultrasonic machine, medical ultrasound imaging systems, with strong capability to develop new products.
In 2008, the company launched a grand series of digital B-ultrasound diagnostic apparatus in the forefront of the industry, greatly meeting the needs of the vast number of users. Advanced technology, sophisticated design, scientific management, strict quality control, as well as life-after-sales service make our products popular in hospitals and clinics. The products have been widely used in medical ultrasound diagnosis in liver, gall and spleen, pancreas, kidney, heart, bladder, uterus, accessories, a fetus, and family planning departments to check pregnancy, and other checks in the Obstetrics and Gynecology.
The Company has passed YY/T0287-2003 (1S013485: 2003) Medical Devices Quality Management System and IS09001: 2000 Quality Management System Certification. The right to import and export-oriented carry out the companies foundation in the international market. The quality of products has obtained good comments at home and abroad.
All the colleagues in the company will strive to improve the service system and lower the price of our products to make the customers more satisfied. Tianyi campony will contribute to develop modern medical equipment the IPPF and a medical unit, in order to promote universal health!
