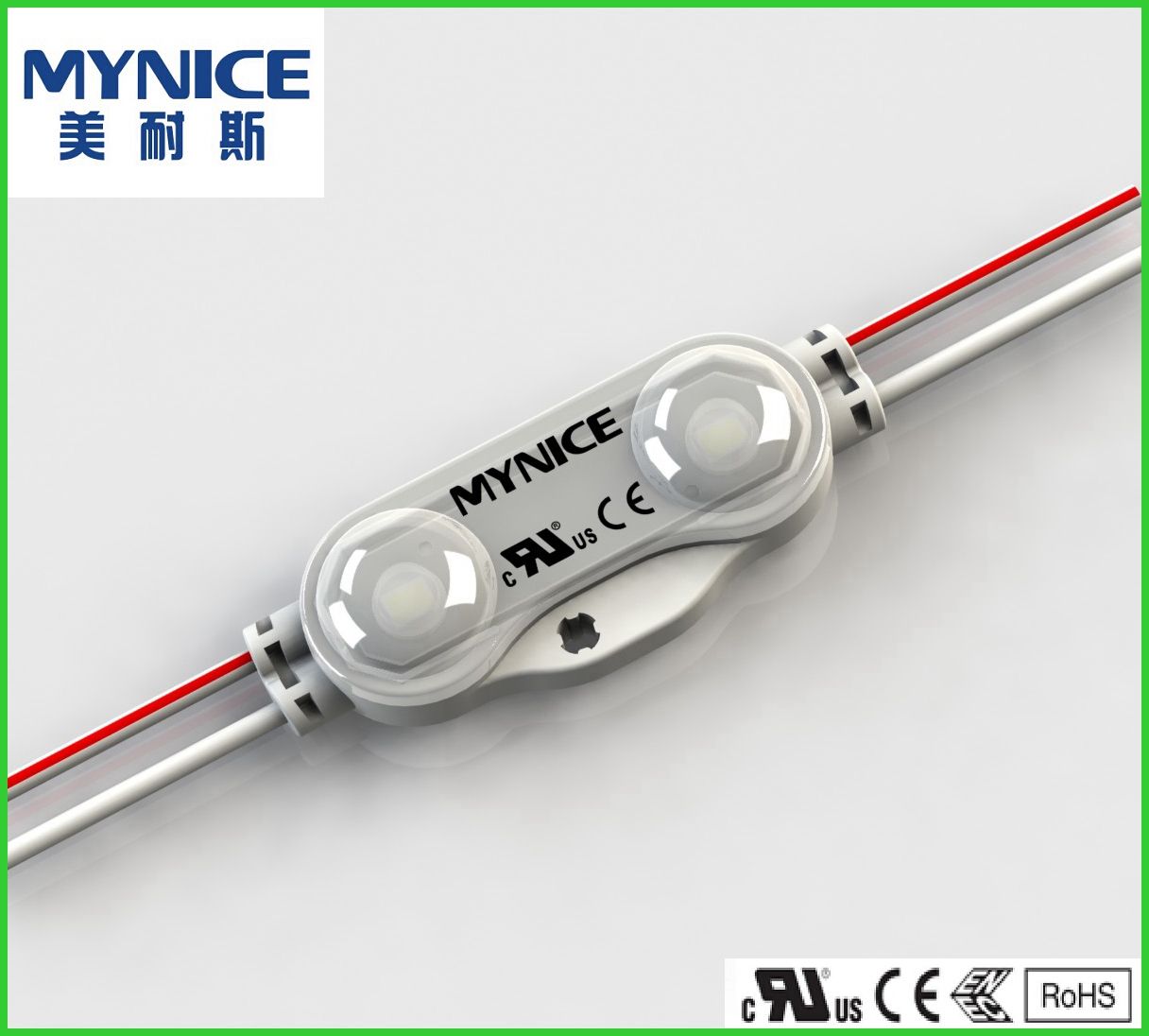

Product Features:
1.Chain of 20pcs or 75pcs LED modules.
2.High efficiency LED.
3.High color consistency (MacAdam 4).
4.Beam characteristic: 160°.
5.Protection class of LED module: IP67.
6.Flexible chain,can be spit betweetn any module.
7.Mounting with screw or premounted double-sided adhesive tape possible.
8.Nominal life-time up to 50,000H (Tc 50ºC).
9.Module size: 42X18.5X10mm
Areas of application:
a>LED Signage and illuminated advertising.
b>Best for led backlight,60-150mm depth light boxes and channel letters.
c>Permanent outdoor use in enclosed light boxes or channel letters.
Techincal Data:
| Item No. | Nominal Voltage | Color Temperature | CRI | Flux | Power | Luminous Ffficacy |
| M22GN02A | 12V | 2700-3300K | >70 | 90LM | 1.0W | 90.0LM/W |
| M22GW02A | 12V | 5500-6500K | >70 | 95LM | 1.0W | 95.0LM/W |
| M22GW02A | 12V | 8000-12000K | >70 | 95LM | 1.0W | 95.0LW/W |
1. Tolerance range for optical and electrical data: -15/+15%.
2. All value @ ta=25ºC
3. Tolerance range for the supply voltage: 12V:±5%.
Application Data:
| Max connection number | 75pcs |
| Distance of Modules(Wire) | 200mm |
| Ambient temperature | -25ºC to +50ºC |
| Max working temperature | 65ºC |
| Storage temperature | -40ºC to +85ºC |
| Risk group(EN62471:2008) | 1 |
| Certification list | CE/UL/ENEC/RoHS |
Packaging information:
| Product name | Weight per pc. | Packaging,Low volume | Packaging,Low volume |
| M21GX02A | 10.8g | 75pcs. 0.81kg | 1200pcs. 15.0kg |
Trade Terms:
1.Payment: Samples or small orders 100% payment advance by Paypal, Western Union, T/T
2.Mass order: T/T 30% advance 70% before shipping
3.Delivery time: Samples/small orders 3-5days Mass order: 7-12days
4.Discount can provided for mass orders
Shipping:
1. FedEx/DHL/UPS/TNT for samples/small orders, Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery port: Shenzhen.
Noted:
_ The power cable should meet the actual maximum current and power.
_ All the end point of wire should be treated with waterproof;
_ Pay attention to the maximum number of connections, prohibit overloading.
_ All the power supply must has the corresponding certification.
_ Our company reserves the right of final interpretation.
_ Subject to change without notice.
