2.4 Inch Sunlight Readable LCD Display Module

Name: 2.4 Inch Sunlight Readable LCD Display Module
Brand: china-crystals.com
SKU: 728733842
Availability: InStock
Rating: 4.5 (89 reviews)

Price:	US $ 1-5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TFT102A
Certification:	RoHS and ISO 9001:2008 Certification
ODM:	OEM Product Design/Production
Display Type:	TFT Transmissive 262K Color
Display Resolution:	240xrgbx320
Viewing Angle:	12 O'clock
LCD Driver:	St7789V
Application:	Graphic Design
Aspect Ratio:	4:3
Feature:	With Remote Control
Type:	TFT
Widescreen:	Not Widescreen
Response Time:	10ms
3D:	Not 3D
Screen Size:	2.4"
Optimum Resolution:	320X240
Interface Type:	RGB

Product Description

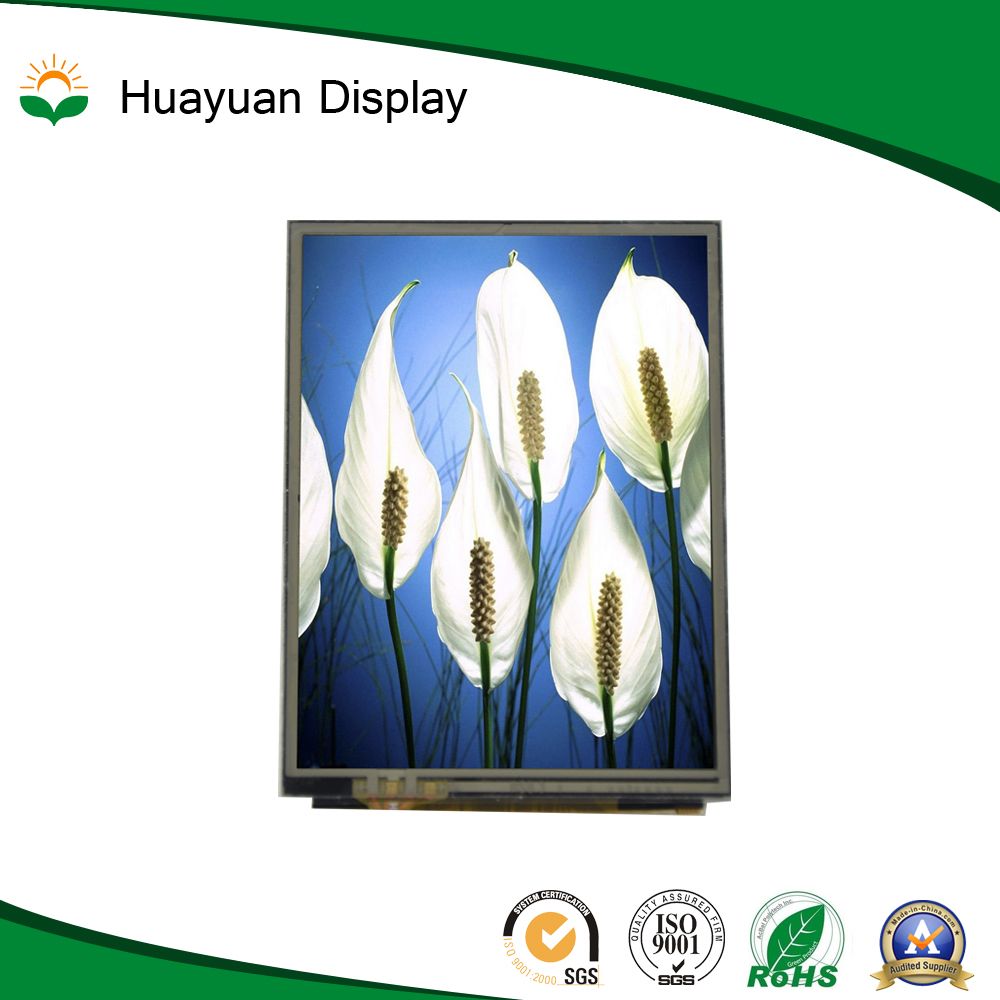

Color LCD module 2.4 inch with LCD module

1.General Specification
LCD Type: TFT Transmissive
Driver element: a-Si TFT Active matrix
Number of Dots: 240*(RGB)*320 Dots
Pixel Arrangement: RGB Vertical Stripe
Active Area: 36.72 *48.96 mm
Viewing Direction:12 O'clock
Driver IC: ILI9341
Module Size(W*H*T): 42.72x60.26x2.46mm
Approx. Weight: TBD
Back Light :White LED
System interface: 16 BITS 80 parallel interface

240 dot-source and 320 dot-gate outputs;
65k Color can be selected by software;
White LED back light;
BITS 80 parallel interface;
Applications:Mobile phone PSP PDA GPS

2. FAQ

FAQ

Q1: Are you a factory or trading company?

A1: We are manufacturer.

Please refer to our company show

Q2: Where is your factory located? How can I visit there?

A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station.

Q3: How can I get some samples?

A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount.

Q4: How does your factory do regarding quality control?

A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification.

Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement

Delivery time: 5-7 days for sample and 25-30 days for mass production.

Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei

Exhibition information: Our company will participate 2017 electronics exhibition in Korea.

Related products:

Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized.

Application:

Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics.

Tel: +86-731-28668968

Fax: +86-731-28660280

3. Related Products

1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.)

2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.)

3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17", etc.

4. TN/STN/HTN/VA segment custom lcd,LED backlight panel

All kinds of LCD Module can customize according to customer`s requirement.

Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
. Do not store the module in surroundings containing organic solvent or corrosive gas.
. Store the module in an anti-electrostatic container or bag.

Application:
Autoelectronics,3D&Shutter,Meters&Instrument,Telecommunication,Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics

We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.

The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.

Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.

Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of

Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
