Price: | US $ 0.1-5/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union,Paypal,Money Gram |
RODUCT PREVIEW:

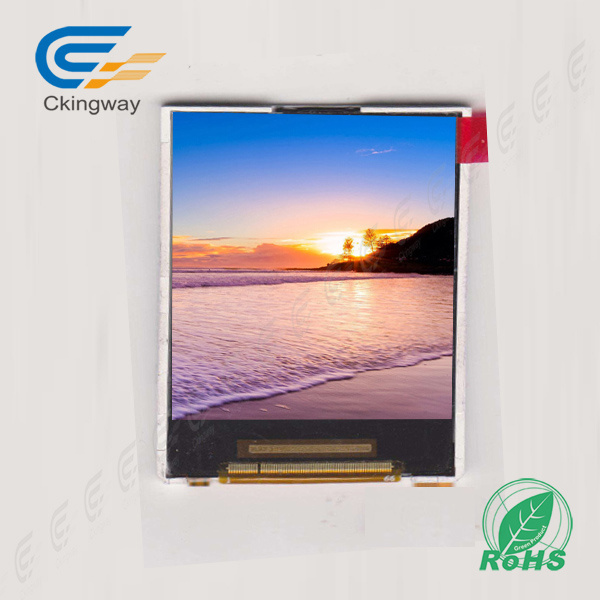

Small Size TFT, The CKT020M033LQN-A4, is a small-size 2.0" TFT with High brightness. All our color display products can be modified to be sunlight-readable, and touch panels can added or removed. upon request (there may or may not be tooling associated with sunlightreadability or touch-panel changes).
Model No.: | CKT020M033LQN-A4 |
Screen Diagonal | 2.0" |
Module area (W*H*T): | 37.88*51.5*2.5 mm |
Active area (W*H): | 30.6*40.8 mm |
Pixel pitch (W*H): | 0.1275*0.1275 mm |
Resolution | 240*360 |
Driver IC | ILI9341V |
Recommended Viewing Direction | 6 O' Clock |
Interface Type | 8 BIT MCU |
Colors | 65K |
Backlight Type | 4-DIES WHITE LED |
Net Weight: | 25g/pc Max |
Prod Model: | CKT020M033LQN-A4 |
---|---|
Screen Diagonal: | 2 " |
Module Area (W*H*T): | 37.88X51.50X2.50 mm |
Active Area (W*H): | 30.6X40.8 mm |
Pixel Pitch (W*H): | 0.1275*0.1275 mm |
Resolution: | 240xrgbx320 |
Driver IC: | Ili9341V |
Recommended Viewing Direction: | 6:00 |
Interface Type: | 8bits Parallel |
Colors: | 16.7m |
Backlight Type: | LED |
Usage: | Smart Home |
Digital LCD Module Type: | Metering Module |
Touch Screen Type: | Infrared |
Type: | LCM |
Response Time: | 25ms |
Display Technology: | TFT |
DOT-Matrix Graphic LCD Module Type: | Row/Column Control Type |
LCD Drive Mode: | Multiplex Drive LCD Module |
Viewing Angle: | All O'clock |
Customized: | Custom Service Available |
