| Price: | US $ 3200-4200/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Product | 640 960 1310 1390 1610 1810 1910 1325 1630 1360 |
| Laser Type | Reci EFR Yongli CO2 Laser Tube |
| Control Soft | Rd Vision |
| Laser Power | 40W 50W 60W 80W 100W 150W 300W |
| Engraving Speed | 0-75000mm/min |
| Engraving Thickness | 0-20mm |
| Cutting Speed | 0-60000mm/min |
| Cutting Thickness | 0-20mm |
| Repeated Positioning Accuracy | ±0.01mm |
| Working Voltage | AC 110-220V ± 10%, 50-60HZ |
| Working Temperature | 0-45°C |
| Working Humidity | 5-95% |
| Minimum Character | 1mm |
| Guideway | Linear Guideway |
| Positioning Mode | Red Light |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, Laser CAD, etc |
| Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc |
| Cooling Mode | Water Cooling |
| Interface | USB 2.0 |
| Size (L*W*H) | 1400*835*620mm |
| Weight | 120KG |
| Optional Device | Water-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine |
| 6040 | 600*400mm | 60W,80W |
| 9060 | 900*600mm | 60W,80W ,100W |
| 1280 | 1200*800mm | 60W,80W,100W,130w (150W) |
| 1390 | 1300*900mm | 60W,80W,100W,130W (150W) |
| 1490 | 1400*900mm | 80W,100W,130w,150W (180W) |
| 1612 | 1600*1200mm | 80W,100W,130w,150W,180W |
| 1325 | 1300*2500mm | 100W,130w,150W,180W |
| 1218 | 1200*1800mm | 350W. Die board, Metal and non-metal cutting |
| 1610 1625 | 1600*1000mm 1600*2500mm | 60W,80W,100W,130w,150W Auto feeding function |
| 1490 1325 | 1400*900mm 1300*2500mm | 150W,180W Metal and non-metal cutting(mixed) |
| Laser tube Power | 50w | 60w | 80w | 100w | 130w | 150w | 300w |
| Wood | 3mm | 5mm | 6mm | 8mm | 12mm | 15mm | 24mm |
| MDF | 1mm | 2mm | 2.5mm | 4mm | 5mm | 7mm | 17mm |
| Plywood | 3mm | 5mm | 6mm | 8mm | 12mm | 15mm | 24mm |
| Plastic | 2mm | 4mm | 5mm | 8mm | 10mm | 15mm | 24mm |
| Rubber | 1mm | 1.5mm | 2mm | 3mm | 4mm | 5mm | 10mm |
| Acrylic | 4mm | 6mm | 8mm | 10mm | 15mm | 17mm | 26mm |
| Delivery | Within 7 working days for production, we will arrange delivery after received the total payment |
| Packing | Firstly, Packed the machine with plastic sheet for clearing and damp proofing. Secondly, Then put the machine in the plywood case for safety and clashing. Thirdly, Transport the plywood case into the container. |
1) This is the first time I use this kind of machine, is it easy operate?
We have English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24 hours service from phone and skype.
3) Shipping & Packing
We could send machine to your country port directly, please tell us your port name. There will be
best shipping freight and machine price send to you.
Please send an inquiry to us, if you have any question. We will try our best to serve you.
| Prod Model: | Bk-6040 9060 1280 1310 1390 |
|---|---|
| Power Supply: | 220V/50Hz |
| Compatible Software: | Coreldraw, Autocad, Photoshop, Laser CAD, etc |
| Control Software: | Rd-Work |
| Cutting Thickness: | 0-20mm |
| Certification: | Ce, GS, ISO, SGS, FDA |
| Laser Tube: | Reci/Efr/Yongli |
| Software: | Rd Vision |
| Teaching: | Videos and Operation Manual |

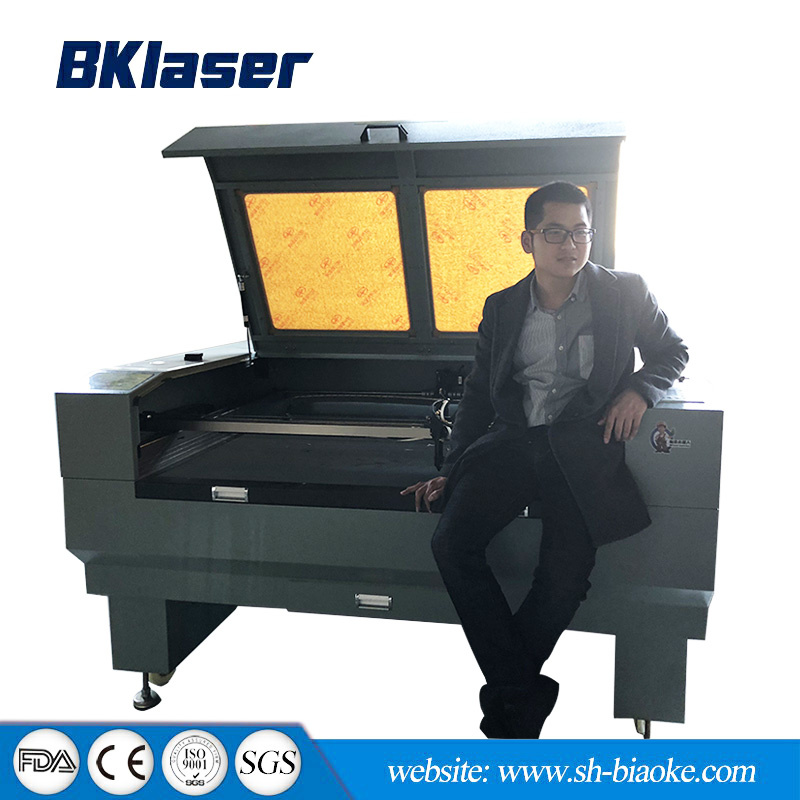

| Product Name: | Industrial Use CO2 Laser Cutting Engraving Machine |
| Application Materials: | Acrylic, Crystal, Glass, Leather, MDF, Paper |
