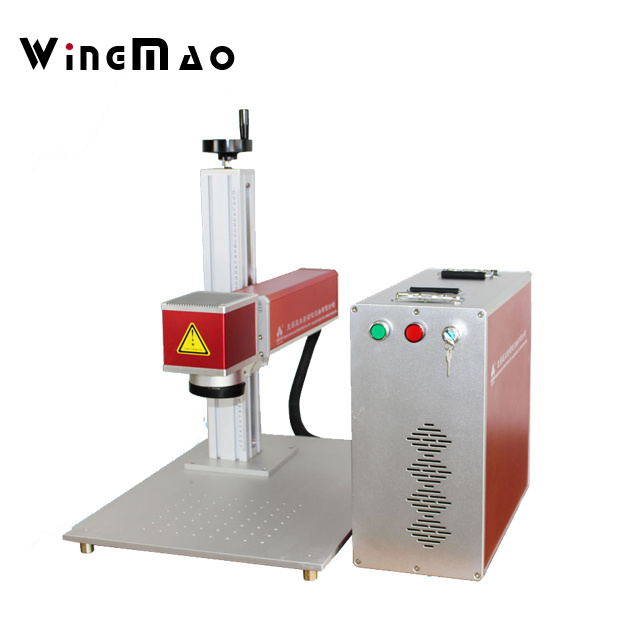

20W Fiber Laser Marking Machine for Stainless Steel

20W Fiber Laser Marking Machine for Stainless Steel
Price: US $ 3500-12000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram

Product Specifications


Prod Model: LMT2000N
Wavelength: 1064nm
Cooling: Air Cooling
Marking Window: 110*110mm/200*200mm/300*300mm
Minimal Marking Width: 0.01mm
Maximal Marking Depth: 0.01~0.50mm
Minimal Marking Character Height: 0.15mm
Pulse Frequency: <=200kHz
Maximal Marking Speed: 12000mm/S
Positioning Accuracy: +/-0.02mm
Expected Laser Mtbf: 100, 000 Hours

Product Description

20W Fiber Laser Marking Machine for Stainless Steel

Marking video:
https://youtu.be/1B3pUELt7wo
https://youtu.be/whWl_yK_n0g




Details:





Sample shows:



 Applicable material:
MaterialFiber Laer MaterialCO2 Laser
AluminumWood
Stainless SteelAcrylic
ABSFabric
BrassGlass
Carbon FiberCoated Metals
Carbon NanotubeCeramic
Cobalt Chorme SteelDelrin
CopperCloth
Colored DelrinLeather
Diallyl PhthalateMarble
Glass Filled PPEKMatte Board
Glass Filled TelfonMelamine
MagnesiumPaper
Metal Plated CeramicsMylar
MolybdenumPress  Board
Mild SteelRubber
NylonWood Veneer
Polybutylene TerephthalateFiber Glass
PolysulphonePainted Metals
PETTile
SantoprenePlastic
Silicon CarbideCork
Silicon SteelCorian
Silicon Wafers  Anodized Aluminum

Machine specifications:
Output Power:10W/20W/30W
Wavelength:1064nm
Pulse Frequency:20~60KHz
Marking Window:110mm*110mm
Min. Character Size:0.15mm
Max. Marking Depth:0.01~0.50mm, depends on the marking material
Min. Marking Width:0.01mm
Max. Marking Speed:12,000mm/s
Beam QualityM2<1.5
Positioning Accuracy:+/-0.02mm
Expected MTBF:100,000 hours
Cooling:Air Cooled
Working Temperature:0°C~40°C (32°F~104°F)
Power Consumption:<=500W

We are VIP customer for both DHL and TNT express, the end customer can enjoy fast door to door service with reasonable freight cost. We welcome customer to bear the freight by self-owned account ID, the exchange bank commission could be saved.

As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.

FAQ

1.What's the service I can get if I buy your fiber laser marking machine?

Normally we give online support to our valuable customer, and we think online support is more than enough: with excellent technical documents and FAQ database,customers can trouble shoot and get the problem fixed in time, as for hardware failure, we would guide customer to get the proper replacement in most timely manner, make sure the production would not be hampered. On site service can also be given case by case.

2.What is your fiber laser source, I need Germany lasers, can you make it, and what is the difference between them?

Normally we configure China top fiber laser for our laser marker, cutter, the imported lasers could be given as per request. You are most welcome to consult our marketing specialist for the laser difference.

3.Have you sent any fiber laser marking machine to my country?

We have sent the laser marking machine to the most of developed countries, and we also expanding fast in developing countries, you are most welcome to contact us in this regards.

4.What certificate does your company have?

CE, FDA and ISO for all.



Contact:Snowy Fang
Mobile:+86-182 2849 0406




Chongqing YongMao Machinery and Electronics Equipment Co., Ltd is a leading industrial marking equipment and service company, providing a second to none product, service and maintenance program which we can implement to best suit our growing customer demands.

With 8 years experience in marking industry, we are proud to provide our customer a complete range of markers, whether it be DOT peen marking, scribe marking or laser marking.

"We will endeavor to maintain and extend our growing reputation at the forefront of this industry by carrying out continuous quality improvement process and customer-centric service, the goal of the company is to be a partner to the customers, and to help them with the fulfilment of their requirements and targets", with such mission, starting from a small factory with 4 staffs only, YongMao quickly expanded to be a famous manufacture in China.

Yongmao products have been widely used in the diverse industry segments such as Automotive, Motorcycle, General Engineering, Plastics, Wooden, Food & Pharmaceutical industries, our customers ranging from China national held giant company, e. g. "China National Heavy Duty Truck Group Co., Ltd", "China South Industries Group Corporation" to SME (small and medium enterprises) and individual personnel.
