| Price: | US $ 0.1/Piece |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Set |
| Pay Type: | T/T,D/P,Western Union |
| Prod Model: | HSGP-4KB |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: | Automatic |
| Current: | AC |
| Laser Type: | Semiconductor |
| Engraving Machine Type: | 2d 3D Laser Engraving Machine for Crystal |
| Usage: | Crystal; Galss; Hard Plastic |
| Focus Diameter: | 0.02mm |
| Max Engraving Speed: | 220000points/Minute |
| Laser Head: | Single |
| Focal Length: | 160mm |
| Laser Power: | 3W |
Our HSGP series is a high resolution laser engravingmachine, is really a fine processing machine with advantages of high fidelity and high stablity, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
Suitable material :
Our machine suitable for engraving inside of the crystal cube, common glass. transparent acrylic,and also can marking on surface of metal and hard plastic .

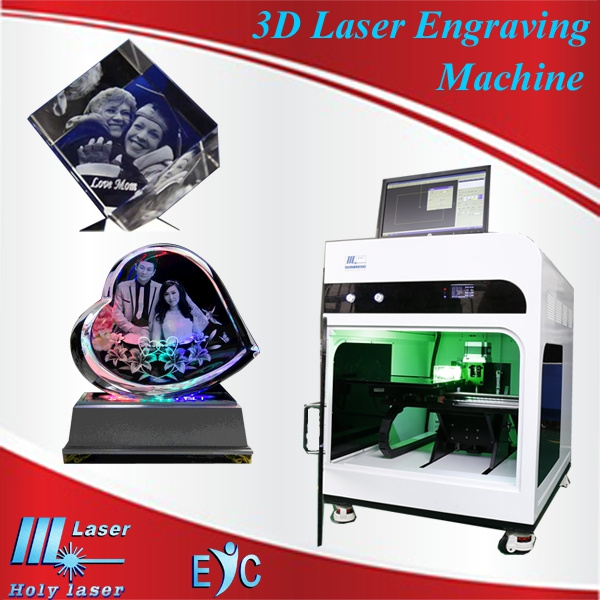

Product Description for 2d 3D Laser Engraving Machine for Crystal (HSGP-4KB)
Our 3D laser engraving machine adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration
Advantages for 2d 3D Laser Engraving Machine for Crystal (HSGP-4KB)
1. CE,FCC, FDA approved,
2.This machine can engraving both 2D nad 3D, (depends on your design).
3. Our machine good for quantity production.
4. With newest laser, high speed.
5, Our machine also good for big size engraving as big as 300*400*150mm (also very suitable for family ,friends ..etc)
Factory Profile:
After-sale service:
Warmly welcome you visit our factory!!!
Warmly welcome you contact us directly for more information!!!
| HSGP-4KB | |
| laser / laser wavelength | semiconductor diode/ 532nm |
| laser repetition frequency | 2000hz |
| marking speed | 220, 000dots/min. |
| max. marking scope | 300*400*150mm |
| focus diameter/resolution | 0.02nm/ 800DPI |
| working | with high speed scanner+X+Y+Z (5 axis) |
| positioning accuracy | 10μ m |
| continuous working time | 24 hours |
| coolinf/quality warranty | air colling |
| lifetime | more than 20, 000hours |
| gross power/noise | 1.5KW/ 50db |
| power requirement | single phase 220V or 110 V (+/- 10%), 50Hz or 60 Hz |
| software |
self reseach software for 3D, 2Ddots cloud, and for control machine |
| suitable materials | Crystal, glass, hard plastic, acrylic, metal, etc. |
| working environment | temperature10-28° C, humidity |
| Operation system | Windows XP, Windows 7 |
| Software language | English, Portugal, Russion etc. |
