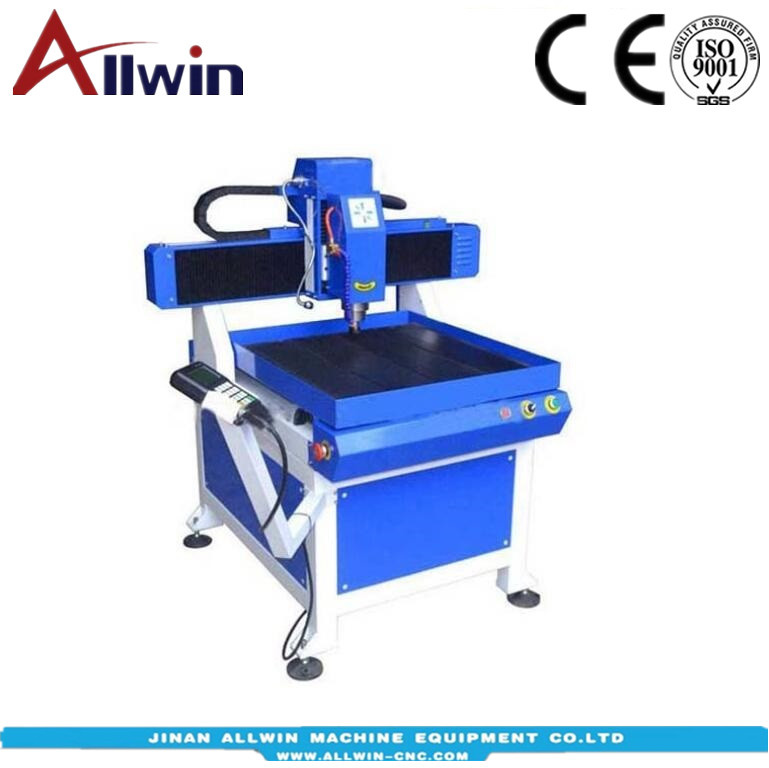

Mini CNC router engraving machine 4040
Feature:
1 whole machine cast by iron, very strong.
2 Taiwan Hiwin square rails and TBI ball screw for 3 axis
3 France schneider electrical parts and Japan OMRON limit switch
4 5 axis rotary with speed reducer, stainless steel water tank
5 stepper motor and leashine driver, 5 axis MACH 3 control system
Parameter:
Description | Parameter |
X,Y,Z Working Area | 600x600x150mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | T-slot Table |
Frame | whole cast by iron |
X, Y,Z Structure | Hiwin Rail Linear Guide and ball screw |
Max. Power Consumption | (Without Spindle) 1.5Kw |
Max. Rapid Travel Rate | 16000mm/min |
Max. Working Speed | 10000mm/min |
Spindle Power | 1.5KW water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper Motor |
Working Voltage | AC220 50/60Hz |
Command Language | G Code |
Operating System | Mach3 |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
X,Y Resolution | <0.01mm |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Inverter | Delta/Fuling |
Electrical components | Schneider |
Limit switch | OMRON |
Driver | Leadshine or Yako |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.High precision
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
FAQ:
1.How long about the machine's guarantee?
2 years
2.How about your after-sales service ?
Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.
3.How can we install the machine?
English version manual and operation video CD disk.
4.How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal
5.Do you Arrange Shipment For The Machines?
Yes, dear customers, for FOB or CIF price, we will arrange shipment for you.
For EXW price, clients need to arrange shipment by themselves or their agents.
6.How to contact us?
| Prod Model: | 6060 |
|---|---|
| Power(W): | 1.5kw |
| Weight: | 324kgs |
| Operating System: | DSP/Weihong |
| Warranty: | 1 Year |
| Table Structure: | T-Slot Table |
| Driving System: | Servo Motor/Stepper Motor |
| Command: | G Command |
| Guide Rail: | Square Rail |
| Spindle Speed: | 0-24000 (R/ Min) |
| Service: | Offering Oversea Service |
