Product Specifications
| Prod Model: |
YSD4200B |
| Image Gray Scale: |
256 Level |
| Scanning Mode: |
B, 2b, B/M, M, 4b, 9b, Zoom |
| Time Gain Control: |
8 Segment Adjustment |
| Gynecology Measurement: |
Uterus, Cervix, Endometrium, L/R Ovary |
| Monitor: |
15 Inch LED Screen |
| Cardiology: |
LV, LV Function, Lvpw, Rvawt |
| Small Parts: |
Optic, Thyroid, Jaw and Face |
| Gain: |
0-100dB |
| Weight: |
4.8kg |
| Warranty: |
2 Years |
| Classification: |
Imaging Diagnostic Equipment |
| Type: |
Ultrasound Scanner |
| Certification: |
FDA |
| Group: |
Middle-aged and Old |
Product Description

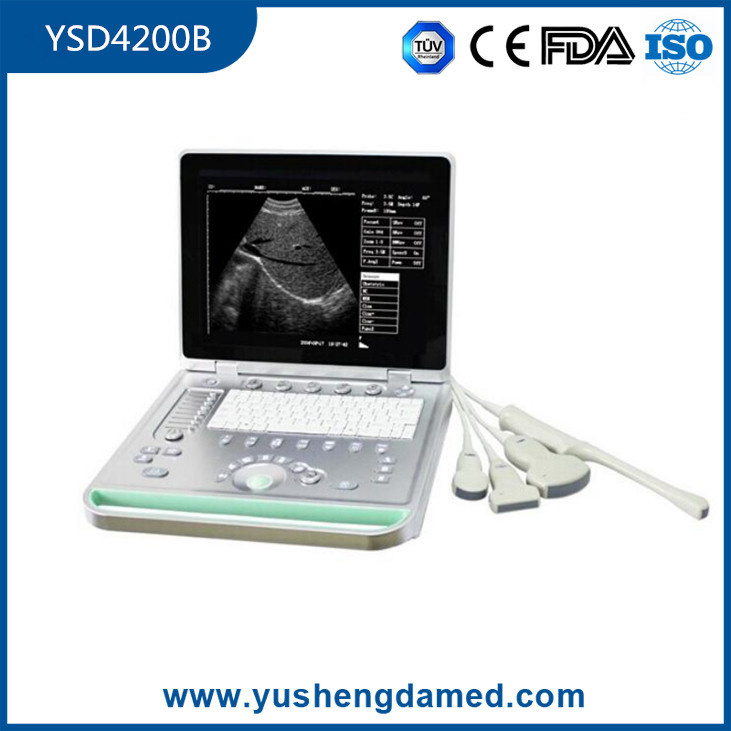

YSD4200B Full Digital Laptop Ultrasound Scanner
Feature:
1. -15 inch large LCD screen
2. -Full digital imaging technology, crystal-clear Image
3. -Pretty and light
4. -Silica gel backlight gravure laser keyboard
5. -8 segment TGC
6. -USB flash disk large volume image storage
7. -2 probe connector
8. -Broadband multi frequency probes
9. -Cine loop-Built
10. -in battery(can work more than 5 hours)
11. -High Cost-effective
Specifations
| Display size | 15 inch LCD screen |
| Working frequency | 2.0MHz~10MHz |
| Display mode | B, B+B, B+M, M, 4B |
| Scanning range | Convex array 60°~150° |
| Amplification factor | 1.0, 1.2, 1.5,2.0 |
| Gain control | 8 segments TGC and overall gain can be adjusted respectively |
| Image processing | 8 γ corrections, frame correlation, point correlation, line correlation,digital filtering, digital edge enhancement and pseudo color processing, etc |
| Image gray-scale | 256 levels |
| Scanning line number | 512 lines/frame |
| Frame rate | 30 frames/second |
| Digital scanning conversion | 512×512×8 bits |
| Memory | USB flash disk large volume image storage |
| Conventional measurements | distance, perimeter, area, volume |
| Obstetric measurement | gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement and fetus weight, etc. |
| Report function | auto make report |
| Built-in battery capacity | can work more than 5 hours-Output interface: USB port, video. |
| Overall size | 362mm×340mm×60mm |
| Total weight | 4.8Kg |
Other Information:
Standard configuration | YSD4200B main unit, |
| 3.5MHz convex probe, |
| Power Adapter |
| Lithium Battery |
| Aluminum Box |
| Certifications |
| user manual |
| Packing list |
| warranty list |
| Optional | 3D function software |
| Electronic linear array probe |
| Electronic rectum probe |
| Electronic micro-convex probe |
| Electronic high frequency linear probe |
| Electronic convex cardic probe |
| Video printer, laser printer, inkjet printer |
| Foot switch |
| Delivery Time | within 3-5 working days after payment |
| Warranty | 24 months |
| Packing size | 490mm×385mm×250mm |
| Gross Weight | 7KG |
Why choose us:
We got production and business certification from Chengdu food and Drug Administration
We got business license from Chengdu City Administration of industry and commerce
We got products certificate of registration and have checked in the website of SFDA
We have accepted the onsite check from SFDA every quarter
We finished the training of laws and regulations in medical equipments field
We have well-established system about material purchasing, employee training,store management,after-sales service process.etc
We adheres the beliefs of "Support Healthy Life", our company spirits are quality, service,trust,thanksgiving
Chengdu Yushengda Technology Co., Ltd. Is a hi-tech limited company engaged in developing, producing and selling medical ultrasonic diagnosis apparatus. The company has high-qualified professional stuffs in researching, producing, marketing and management. There's a brand-new manufacturing plant and advanced suit of equipment for producing and inspecting the products. It Can produce 5, 000 sets of ultrasound scamner and more than 10000 hospital bed per year.
The YSD series of B-mode ultrasonic diagnosis devices adopt super-scale integrated electro circuit and new SMT technic. The quality of products is stable and credible. It has passed the medical ultrasonic quality monitor and inspection center. The technical and safe standards are all conformed to the GB10152-1997. Since 2003, it was awarded "high-quality, keeping regulation, good faith" honored enterprise of Sichuan.
The spirit of the company is"unity, sincerity, factualness, innovation". We all try our best for"true feelings to customer, diligent permanently for innovation, improving continuously for quality, creating brand by sureness", which makes more satisfaction to customers. The company has been carried out the quality managing system of YY/T0287-2003, won the certificate of medical device quality managing system. The products are sold to domestic markets and overseas markets, such as Europe, Africa. The products are becoming more and more popular.
We'll stick to our policy and work harder all the time in order that we can provide more and better products, and making contributions to the development of national medical devices and people's health!
