Product Specifications
| Prod Model: |
HSGP-2KC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Focal Length/Focus Diameter: |
150mm/0.02mm |
| Maximum Pulse Speed Points: |
180000points/Minutes |
| Device Input Power: |
AC220V± 10% 50-60Hz |
| Beam Quality: |
M2<1.5 |
| Application Materials: |
Crystal. Glass, Metal, Plastic, etc |
| Cooling/Machine Weight: |
Air Cooling /200kg |
| Laser Frequency: |
3000Hz |
| Maximum Marking Scope: |
X=150*Y=200*Z=60mm |
| Laser Head/Resolution: |
One/800dpi |
| Product Name: |
Special High-Frequency Laser Engraving Machinehsgp |
Product Description

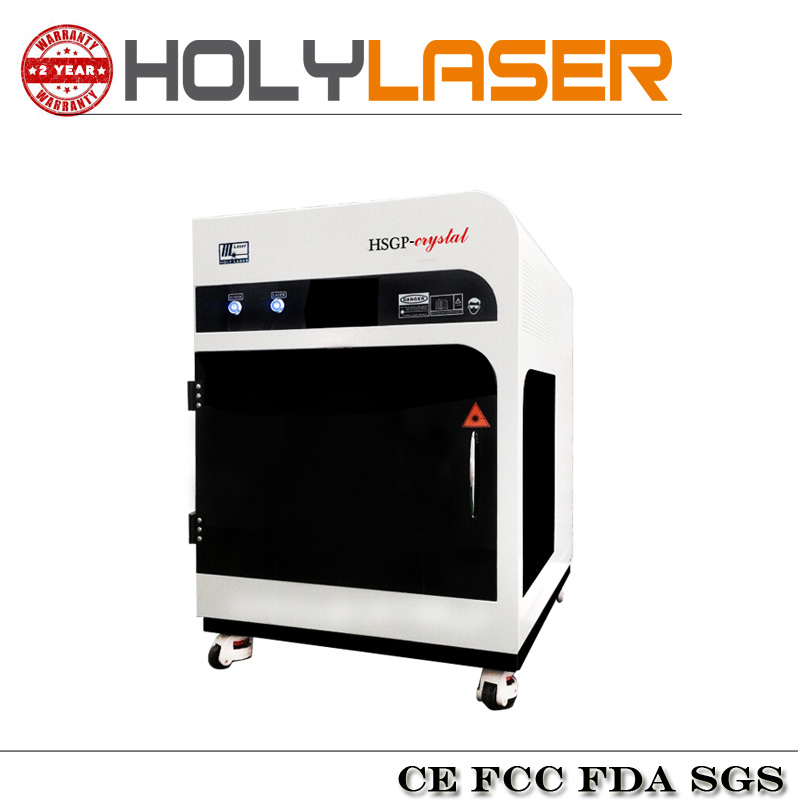

Features for 3D crystal laser engraving machine for HSGP-2KC:
The 3D crystal engraving laser machine, is a high resolution laser engravingmachine, is really a fine processing machine with advantages of high fidelity and high stablity, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
You can engraving 2d or 3D photos of animals, people, scenery, wood, flower, logo, words, object and so on.
Working process:
Our this crystal laser engraving machine HSGP-2KC sales very well, with 300mm*400mm*150mm marking scope, then you can engraving one PC bigger size crystal as big as 300x400x150mm, or you can engraving about so many small size crystal in one time togerther. Marking speed is: 120, 000 dots/min. For one PC 50x50x80mm, need only 2 mints. So for shop or small quantity produce is very suitable.
Applicable materials of the 3D crystal laser engraving machine:
Crystal, glass, hard plastic, metal, Acrylic, and other transparent materials, etc.
Aftersale service:
One year warranty period, made damage negotiable.
Life long maintenance
Free training for customer
Trade Terms:
1, Payment: By T/T or westem Union etc.
2, 100% payment if the total amount less than USD10000USD,
30% deposit and 70% balance before shipment if the total amount is more than USD 10000USD.
3, Lead time: 7-10 working days.
4, MOQ: 1PC
Our service:
1, reply your enquiry in 24 working hours.
2, Experienced staffs answer all your questions in fluent English.
3, Special discount and protection of sales area provided to our distributor.
Company and products information related:
Yi Wu Holy laser Technology Co. Ltd is a high-tech enterprise located in the world's largest small commodity distributing center-YIWU city, ZheJiang Province, is next to PuJiang, a place which is known as the capital of the crystal in China. We are specialized in designing. Producing and distributing serious of laser equipment. We mainly trade in series of laser machines including CO2 high-speed Laser engraving equipment. Laser cutter. Import nonmetal laser marking machines. Metal marking machines and Laser subsurface engraving equipment etc.
| laser/ laser wavelength | semiconductor diode/ 532nm |
| laser repetition frequency | 2000Hz |
| engraving deepth | 120, 000 point/min. |
| engraving area | 300*400*150mm |
| focus diameter/ resolution | 0.02MM / 800 DPI |
| working | with high speed scanner+X+Y+Z |
| positioning accuracy | 10um |
| continous working time | 24hours |
| cooling/ quality warranty | Air cooling |
| laser lifetime | 20, 000hours |
| gross power/ niose | 1.5kw/ 50db |
| power requirement | 220V or 110v(+/-10%), 50hz or 60Hz |
| software | self reseach software for 3D, 2Ddots cloud,
and for control machine |
| file format | JPG, BMP, DWG, DXF, etc. |
| suitable materials | Crystal, glass, hard plastic, acrylic, metal, etc. |
| working environment | temperature10-28° C, humidity less than 70%,
non-condensed |
|
