Product Specifications
| Prod Model: |
HSGP-4KB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Focus Diameter: |
0.02mm |
| Laser Head: |
Single |
| Focal Length: |
150mm |
| Laser Power: |
3W |
| Cooling: |
Air Cooling |
| Beam Quality: |
M2<1.5 |
| Resolution: |
800dpi |
| Max Engraving Speed: |
220, 000points/Minute |
| Max Engraving Scope: |
300*400*150mm |
| Frequency: |
4000Hz |
Product Description

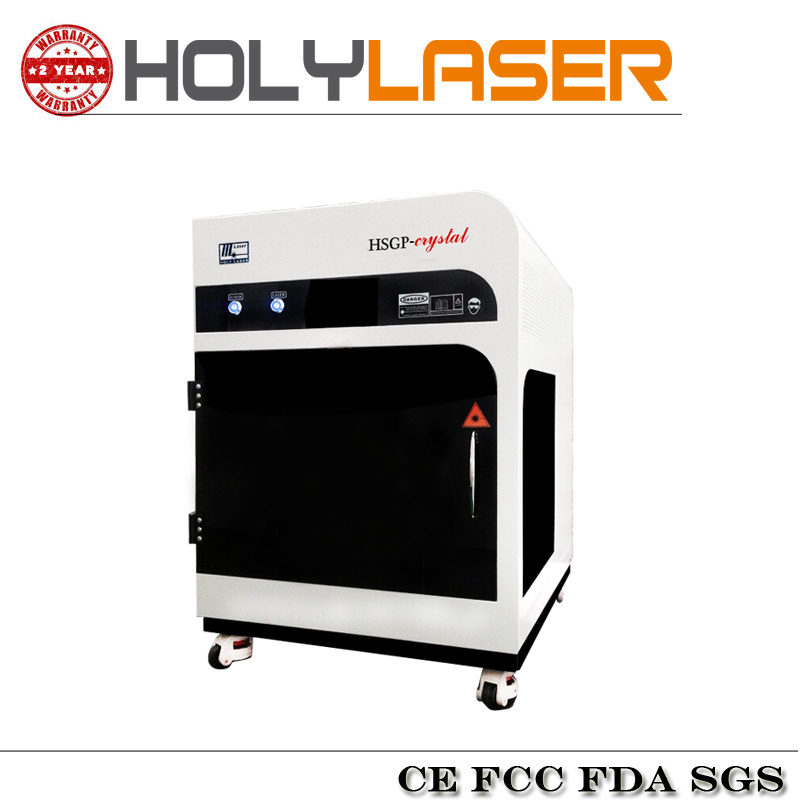

This 3D crystal laser engraving machine with high resolution, with advantages of high fidelity and high stability, which is definitely suitable for fine model engraving processing centers, photo pringting shop, wedding photography, souvenirs, personalized gifts shops, etc.
Good engrave quality, high solution. The pattern of engraving is exquisite, crystal-clear and strong tri-dimensional sense.
Perfect Laser High-Speed Scan Laser Engraving machine primary use the 3D camera to take the three dimensional portraits on the human body, and then through the laser inner carving technology make beam dots inside crystal, many dots to form a three-dimensional images.
This type of machine use the imported air cooling laser system, so it not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristic, good stability and easy maintain, Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.
Use the imported air cooling laser system, stable, easy maintenance
Non-touch style laser process ensures that the surface of the crystalline lens keeps its nice appearance
Added function if you need:
We can install the laser for engraving all kinds of metal, like gold. Silver, iron, copper, zinc, stainless steel and so on.
For wedding ring, bracelet, jewelry, component of machine, clocks and watches, glass industry, etc. Very well.
Working process for the economic crystal cube laser engraving machine:
HSGP-4KB with max. Marking scope: 300x400x150mm, means you can engraving one PC bigger size crystal as big as 300x400x150mm, or you can engraving so many small size crystal in one time togerther. Marking speed is: 220, 000dots/min., for one PC 50x50x80mm, need only 2 mints.
70% crystal gift factory in China crystal town here using our 3D crystal/glass cube engraving machine for big order, big quantity production, 24 hours working.
Applicable materials:
Crystal, acrylic, glass, hard plastic, and other transparent materials, etc.
After sales service:
One year warranty period, man made damage negotiable
Lifelong maintenance
Free training for customer
Free design for you to engraving which are suitable for gift
Trade Terms:
1, 1, Payment: By T/T or westem Union etc.
2, 100% payment if the total amount less than USD10000USD,
30% deposit and 70% balance before shipment if the total amount is more than USD 10000USD.
3, Lead time: 7-10 working days.
4, MOQ: 1PC
Our service:
1, reply your enquiry in 24 working hours.
2, Experienced staffs answer all your questions in fluent English.
3, Special discount and protection of sales area provided to our distributor.
Company and products information related:
Yi Wu Holy laser Technology Co. Ltd is a high-tech enterprise located in the world's largest small commodity distributing center-YIWU city, ZheJiang Province, is next to PuJiang, a place which is known as the capital of the crystal in China. We are specialized in designing. Producing and distributing serious of laser equipment. We mainly trade in series of laser machines including CO2 high-speed Laser engraving equipment. Laser cutter. Import nonmetal laser marking machines. Metal marking machines and Laser subsurface engraving equipment etc.
| parameter name: | parameter value: |
| model number: | HSGP- 4 KB |
| Laser -pumped mode: | diode semiconductor |
| wavelength: | 532nm |
| frequency: | 4 000HZ |
| Maximum single pulse energy: | 1.2mj |
| power: | 4 W |
| Q-mode: | A-O Q-switch |
| pulse width: | 6.5ns |
| beam quality: | M2< 1.5 |
| Max. Engraving speed: | 220, 000points /minutes |
| Max. engraving scope: | 300*400*150mm |
| laser head: | one |
| resolution: | 800DPI |
| focus: | 150mm |
| focus diameter: | 0.02mm |
| cooling mode: | air cooling |
| applicable materials: | crystal, glass etc. |
| device input power: | AC220V ± 10% 50-60Hz |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
