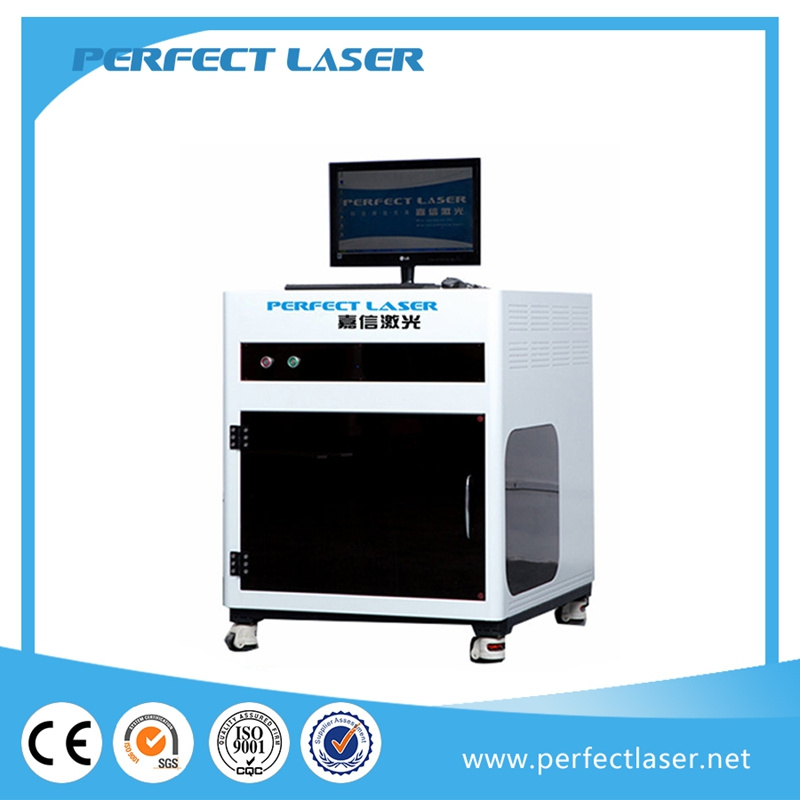

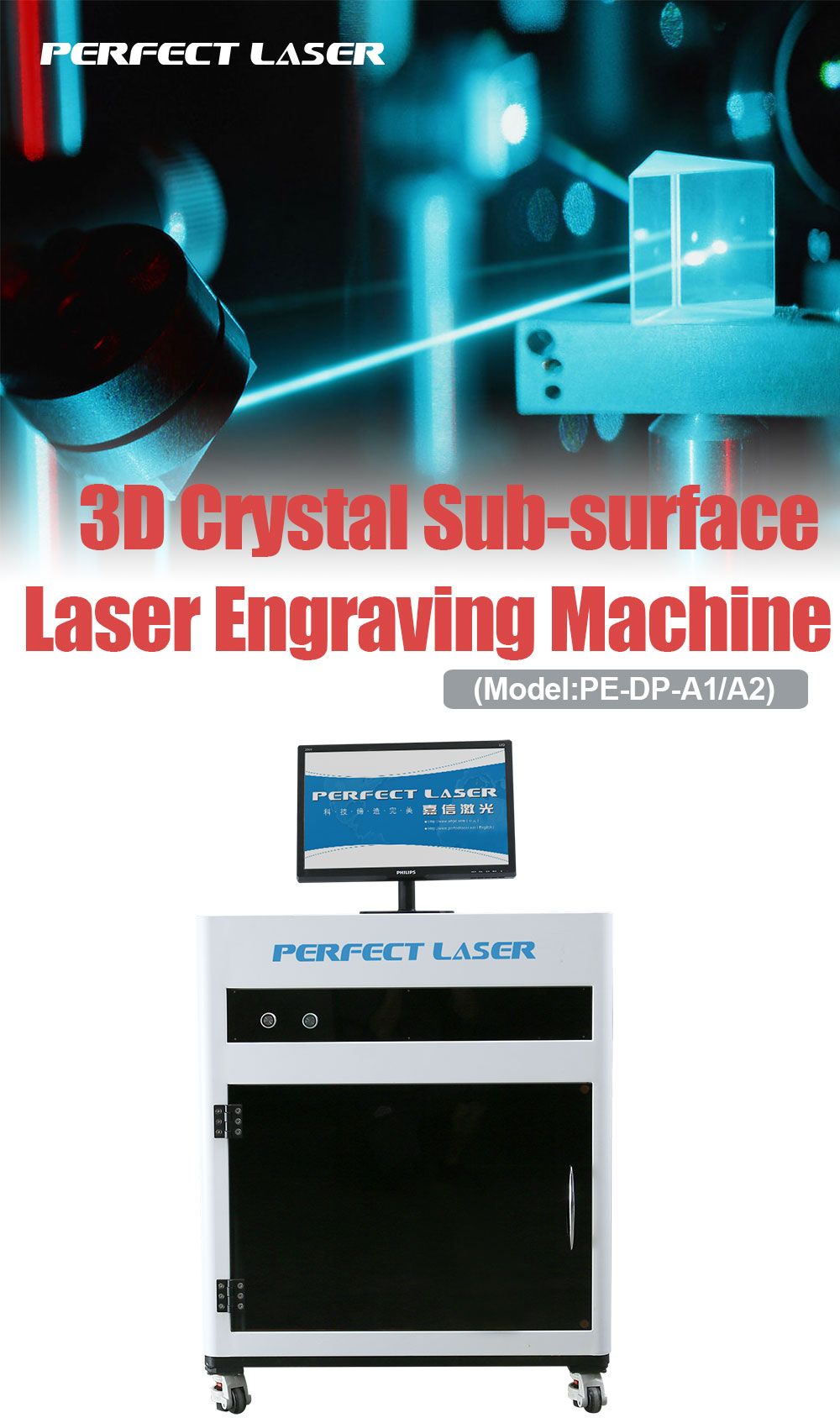

3D Photo Crystal Laser Inner Engraving Machine
| Price: |
US $ 1-17800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
3D Photo Crystal Laser Inner Engraving Machine

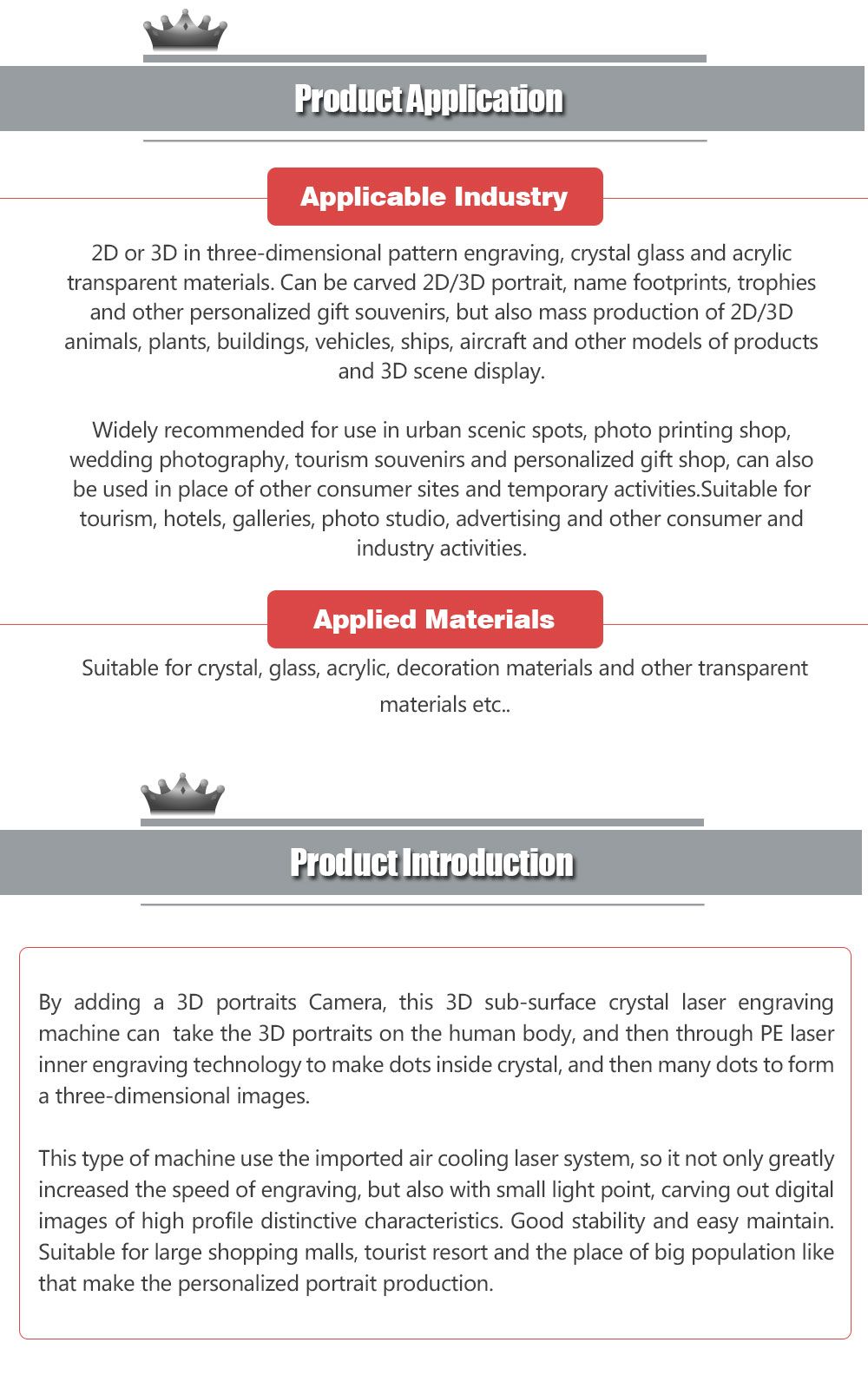

Description:
Perfect Laser High-speed Scan laser Sub-surface Engraving Machine primarily use the 3D camera to take the three-dimensional portraits on the human body, and then through PE the laser inner carving technology make dots inside crystal. Many dots to form a three-dimensional images. This type of machine use the imported air cooling laser system, so it not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristics. Good stability and easy maintain. Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.

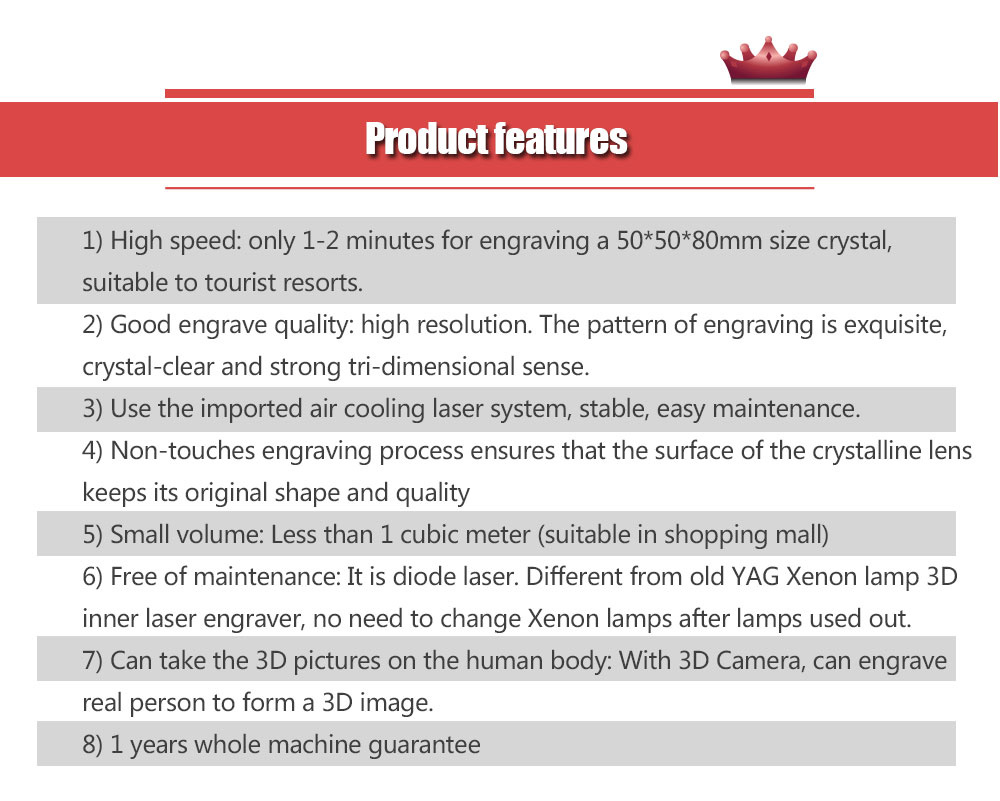

Advantage:
High speed, only 2-3 minutes for one 3D portrait engraving, suitable to tourist resorts
Good engrave quality, high solution. The pattern of engraving is exquisite, crystal-clear and strong tri-dimensional sense.
Use the imported air cooling laser system, stable, easy maintenance
Non-touch style process ensures that the surface of the crystalline lens keeps its.
| CE Model/Parameter | PE-DP-A1 | PE-DP-A2 | PE-DP-A3 |
| Pumped type | ND: YAG Diode Pumped |
| Diode Working Span | >12000 hours |
| Laser Wave Length | 532nm |
| Laser Frequency | 2000Hz |
| Max Pulse Power | 0.7mj |
| Laser Power | 3 w |
| Q Adjust Method | Electro optically Q Switched |
| Max Engraving Speed Dots/min | 120000 dots/min |
| MaxEngraving Range | 90*90*150mm | 300*300*150mm | 300*400*150mm |
| Max Crystal Size | 120*120*120mm | 320*320*170mm | 320*420*170mm |
| Engraving Dot Size | 20-40um |
| Beam Quality | m2<1.5 |
| Laser Head | 1 Head |
| Resolution | 900dpi |
| Focus Diameter | 0.04mm |
| Applications Materials | All transparent material |
| Cooling Method | Air Cooling |
| Electrical Source Require | AC220V±10% 50-60Hz |
| Software | Special English 3D Engraving software |
| Engraving Accuracy | 0.005mm |
| Constant Working Time | >20 Hours |
| Format Support | JPG,BMP,DWG,DXF,etc |
| Time for engraving a 50*50*80mm crystal | <3 mins |
| Dimension of Main Machine | 580*620*720mm |
| Weight | 80 kgs | 150 kgs | 200 kgs |
| Guarantee Time | One Year |
About us
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001:2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser will continue to embrace and create a better future with open mind.
Contact information
Perfect Laser Co., Ltd. (China)
Contact: Daisy / Sales Department
Tel: 0086-27-86791986
MP: 0086-13871253601 Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
| Prod Model: |
PE-DP-A1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Laser Type: |
Diode |
| Control: |
CNC |
| Current: |
AC |
| Usage: |
Crystal |
| Working Size: |
90*90*150mm, 300*300*150mm, 400*3008150mm |
