Product Specifications
| Prod Model: |
SCU4030 |
| Terms: |
Technical Parameters |
| Model: |
Scu4030 |
| Power: |
Metal RF 30W Laser Tube |
| Software: |
Rdcam |
| Controlling System: |
Rd System |
| Idle Speed: |
≤1200mm/S |
| Min. Line Width: |
0.2mm |
| Drive: |
Stepper Motor Drive/Servo Motor Drive |
| Net Weight: |
60kg |
| Package: |
Standard Crate for Export |
Product Description

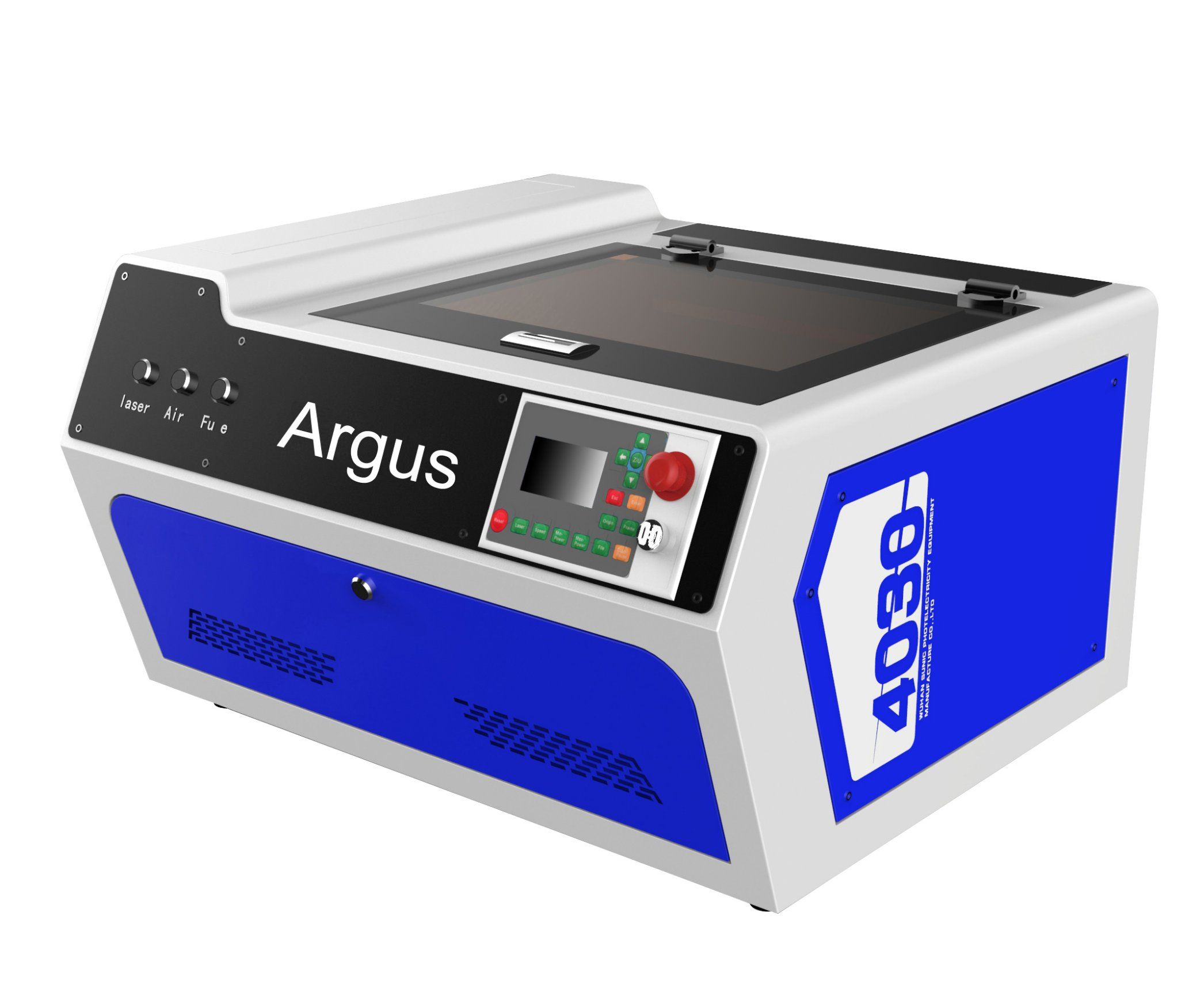

Mini Laser Cutting Machine For Leather Paper 400X300MM 30W

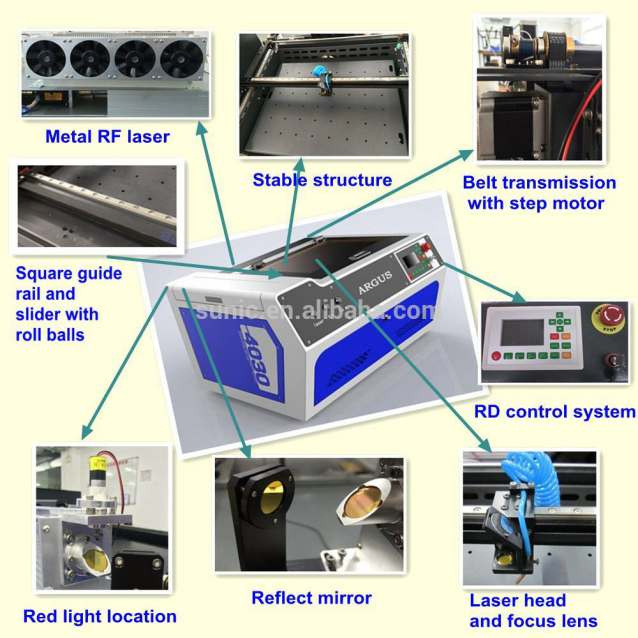

Equipment Performance of Portable Laser Cutting Machine SCU4030: *Designed for engraving nonmetals and painted metals.
*Unique designed engraving motion system with , providing efficiency work.
*Max.Practical Engraving Speed 1200mm/s.
*Multifunctional Red Light Indication, can be use to adjust optical path.
*High quality&frequency laser beam, spot diameter<0.2mm, more accurate.
*Metal RF laser tube, long lifespan, after inflation can be use again.
*Desktop type, can be set on the desk.
Technical Parameters of Portable Laser Cutting Machine SCU4030:| Terms | Technical Parameters |
| Model | SCU4030 |
| Working platform size | 400x300mm |
| Power | Metal RF 30w Laser Tube |
| Controlling system | RD System |
| Software | RDCAM |
| Drive | Stepper Motor Drive/Servo Motor Drive |
| Transmission | Belt Transmission/Ball Screw Transmission |
| Support format | PLT, BMP, DXF, T100, etc |
| Process Material | Nonmetals, Painted Metals |
| Idle speed | ≤1200mm/s |
| Repeated accuracy | ≤±0.025mm |
| Min. line Width | 0.2mm |
| Cooling ways | Forced-air Cooling |
| Working temperature | 0-35°C |
| Working humidity | 5-95% |
| Working Power | 220V/50Hz/1.5kVA(Customized) |
| Auxiliary Equipment | Air pump, Exhaust Fan |
| Up & Down Table | 15cm adjustable, or customized |
| Optional configuration | Rotary Device |
| Dimension | 750x810x580mm |
| Net weight | 60KG |
| Package | Standard Crate for export |
Samples:
Applicable Fields & Materials: The machine is widely applied in the fine engraving, cutting and hollowing out on nonmetals with all kinds of characters, graphs, images, trademarks and so on.
*Handcraft industry. Plywood,Glass,Marble,Density board,Gifts,Trophy, Marks, Key chains.
*Furniture, Wood,Bamboo,MDF, Home textile, Seat Cushions,Ceramic.
*Advertising industry, Advertising plate, Acrylic, Plastic, PVC,Signs.
*Garment,Jeans,Leather,Chemical leather, Shoes material.
*Decoration, Paper Board,Organic glass,Vases,Derma.
*Model manufacturing.

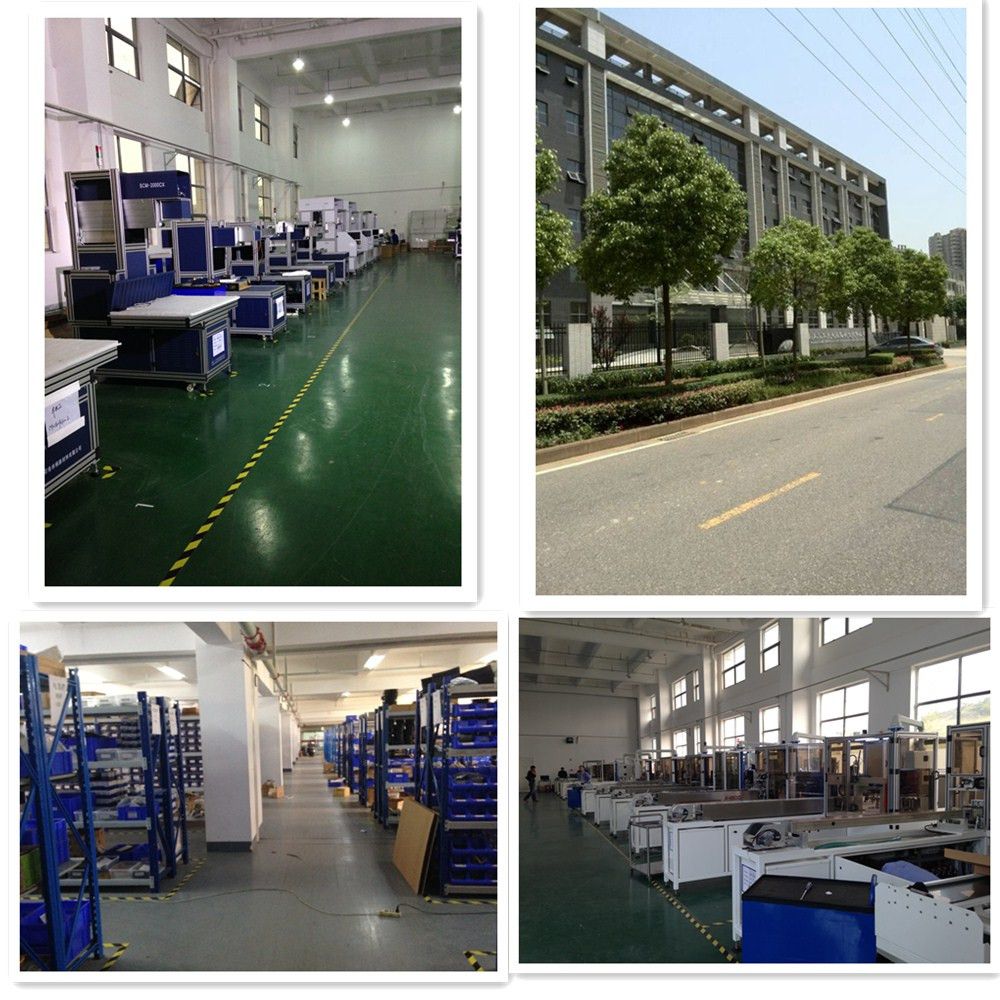

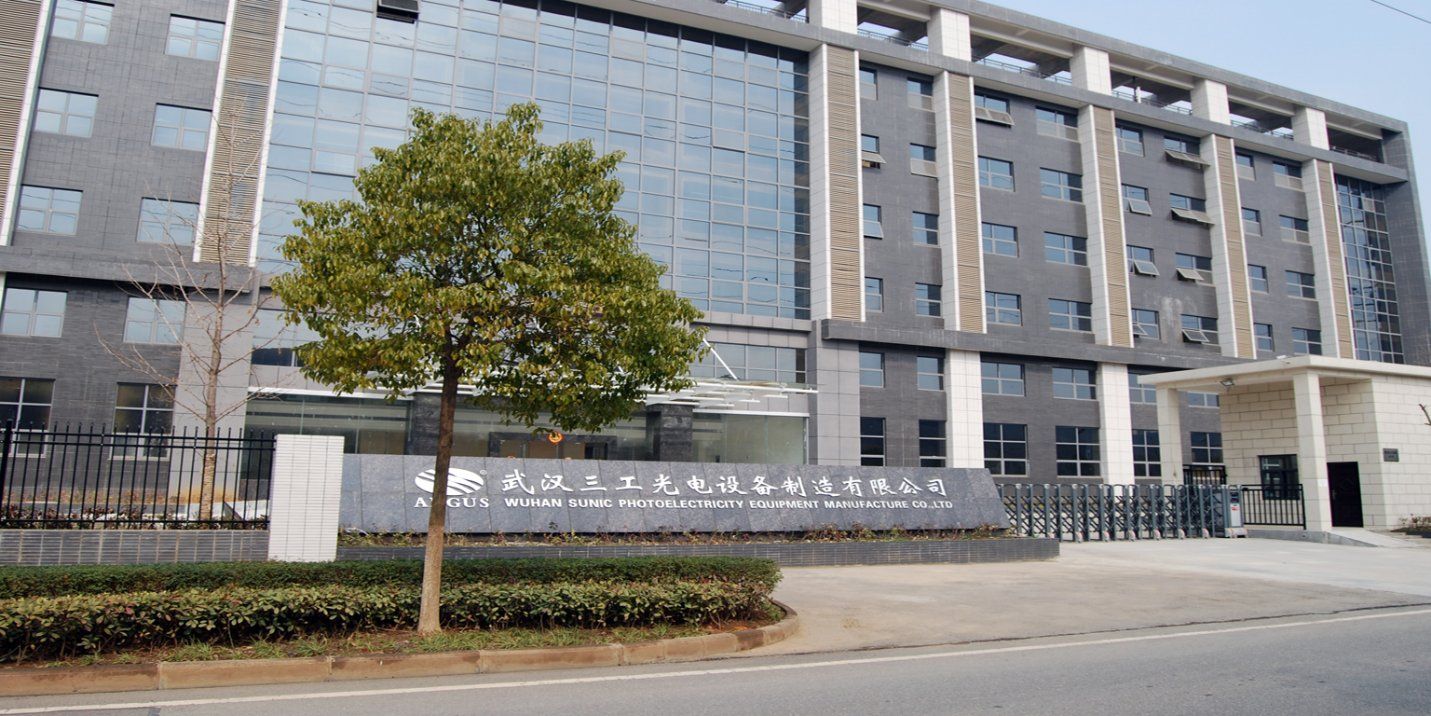

Company & Workshop
Wuhan Sunic Photoelectricity Equipment Manufacture Co.,Ltd (Sunic Laser) has been dedicated to the manufacturing of Laser equipments since 1998. We are specialized in designing, manufacturing as well as providing services for Laser processing machines and whole equipments for Solar PV production line. We offer complete solutions with Laser application for customers all over the world. Sunic Laser would like to be customer's technical consultant and support in Laser and solar equipments to make further development and progress together.
Our Certifications
Our ServicePre-sales Service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser cutting & engraving solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etcAfter-sales Service:
1) 1 year warranty for laser machine and components;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support. Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
The guarantee period shall be 1 year counting from the date on which the commodity arrives at the port of destination.
1) One year free maintenance, lifelong caring.
2) Free technical consultant and software updating.
3) Customer Service responding in 12hours.
4) Continuous support with software and hardware after free maintenance.Packing & Delivery
FAQQ: Are you trading company or manufacturer ?
A: We are factory, and has been in the laser field for 20 years.
Q: How long is your delivery time?
A: Generally it is 3-7 days, it also depends on the machine model and quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the carrier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Please feel free to contact us if you have any inquiries or questions. Thanks.
Contact: Bruce
Company: Wuhan Sunic Photoelectricity Equipment Manufacture Co., Ltd.
Mobile: 0086-15671685305
Add: No.4 Huanglongshan North Road, East Lake High-Tech District, Wuhan, Hubei, China
Web: www.arguslaser.net
The Sunic Laser Co., Ltd began production in 1998 and is now one of the largest producers of industrial LASER equipment in China. With more than 200 employees (combined experience totals more than 1000 years! ), we have self-operation export and import rights to well over 80 different countries.
Since 1998, we have consistently weeded out older technology to implement the latest available technology in all of our 30+ LASER machines. The unparalleled growth of our company is evidenced in our four factory relocations over the last 7 years - each new premises allowing us to double the production capacity of the previous. Our sales of Scribing Machines are 85% domestic, making us the largest market occupier in this sector (in mainland China).
Aside from the Solar Industry, we supply a wide range of Marking Machines, Cutting Machines, and Engraving Machines that use the finest available German LASER sources where applicable. From cutting edge (no pun intended) Fibre LASERS to high-power CO2 LASERS, we will ensure that we provide you with the highest quality machine for your project - whilst maintaining a competitive price! Our mission is to provide you with consistently high quality in all areas of our business from the machines we make, through to our after-sales service. Our goal is to help you grow your business such that you come back to us for more of our quality products in the future.
