Product Specifications
| Prod Model: |
ST42Q1-0002 |
| Application: |
Semi Outdoor AD Player |
| Installation: |
Vertical |
| Type: |
Touch Screen Panel AD Player |
| Interface Type: |
HDMI |
| OS: |
Android |
| Customized: |
Customized |
| Screen Size: |
42"-65" |
Product Description
Key features

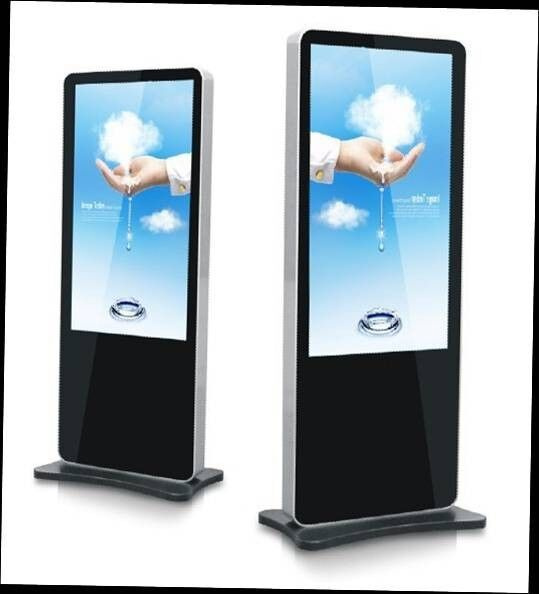

Available size: 42,47, 55, 65, floor stand or wall mounted
Outdoor waterproof level IP65 sunlight readable
Super brightness up to 2500nits
Quality tempered glass for protection
Anti-moisture, anti-lightning, safety lock
Support to load interactive software applications
Intelligent temperature control system to keep its internal thermostat dry environment, prevent fogging, condensate phenomenon
Support 10 groups timed period back light control, convenient and easy to operate
Provide detection for internal voltage. It'll self-closing for protection once it deviates from the standard value range
The front use of imported anti-glare AR laminated glass, can effectively increase the internal light is projected to reduce the reflection of external light
The liquid crystal screen display image colors more vivid and bright
Galvanized steel shell, via a dedicated outdoor powder paint, waterproof sunscreen, anti-corrosion, explosion-proof professional surface treatment; can be used outdoors for 10 years without fading.
Full galvanize steel cabinet, the outer surface of imported metal paint, anti-magnetic, anti-static, waterproof material imports
Optional
1.Windows system: support to customized Windows 8.1/10 OS
2.Optional: 3G/4G module, camera, WiFi probe.
3.Touch screen: support to customized IR touch (6 points)/capacitive touch (10 points)
Application

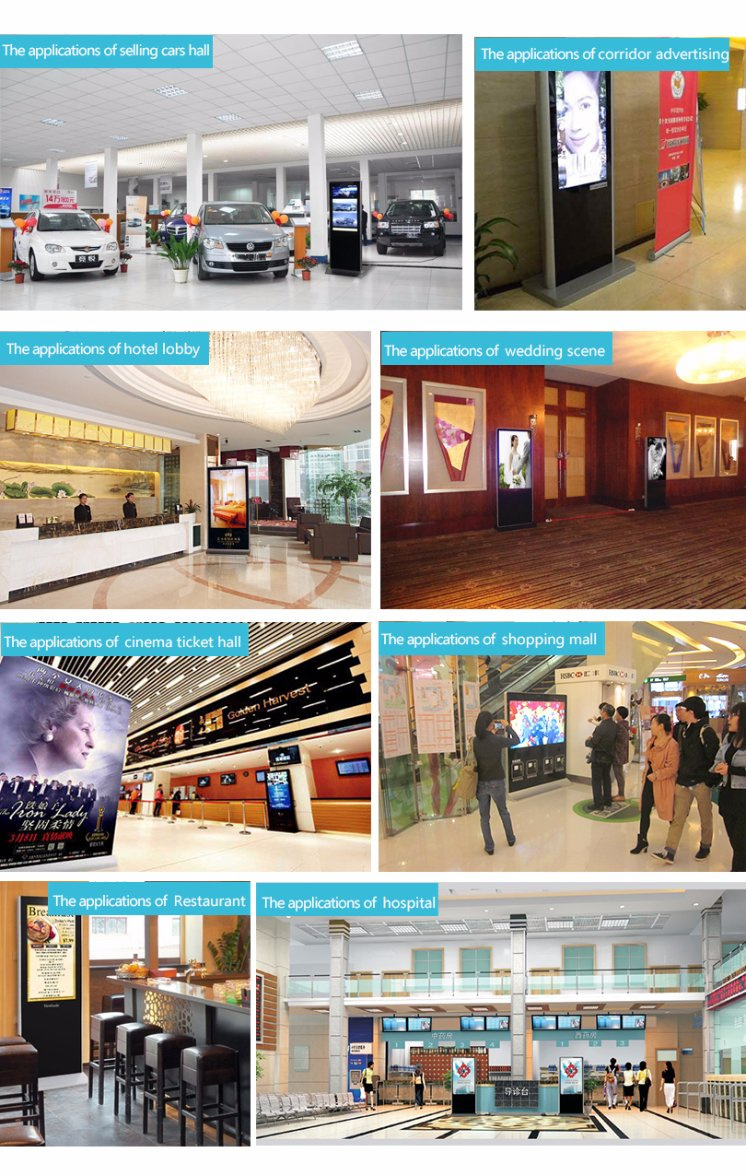

Bank, school, park, square, parking lot, train/bus/metro/railway station, airport, shopping mall, cinema, library, stadium, semi outdoor & outdoor environment.
| Cooling system | FC (fan cooling) AC (air conditioning) |
| Size | 42 inches |
| Brand | AUO/LG/Samsung |
| Black light | LED |
| Resolution | 1920*1080 |
| Brightness | 350cd/ |
| Contrast ratio | 3000:1 |
| Service life | 50000hours |
| OS | Android |
| Port | HDMI×1, USB×1, SD1, CF×1 |
| Waterproof grade | IP65 |
| Power input | AC 100~240V, 50/60 Hz |
| Max power | 400W |
| Working temperature | -10ºC~+55ºC |
| Working humidity | 10%~90% |
