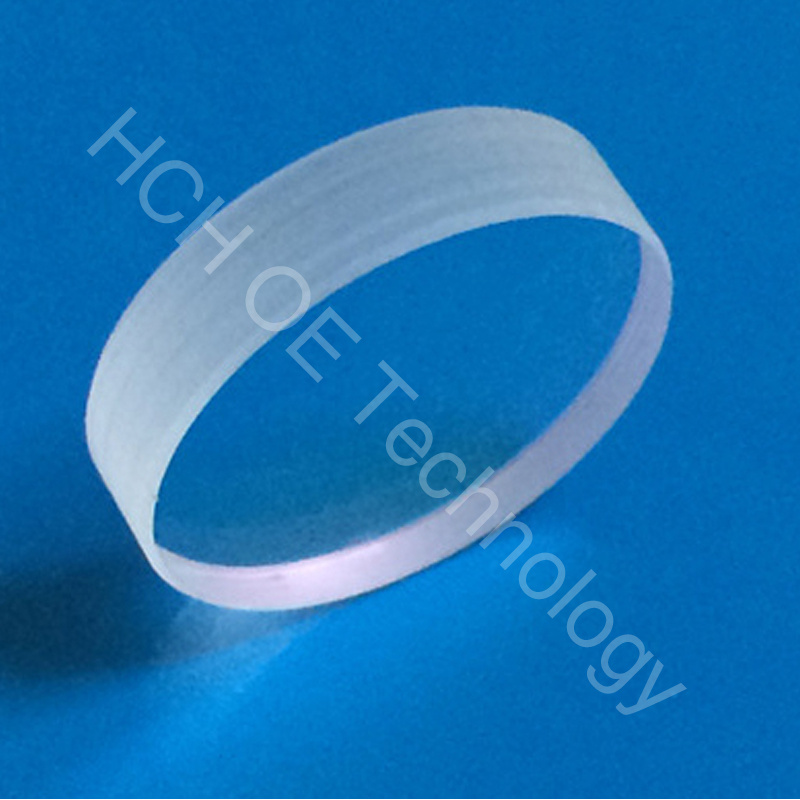

This sapphire window is treated with special heat treatment, making it far more intense than other materials, even the average sapphire material.
After testing, the window can withstand a 1 kilogram ball of steel falling from a height of 1 meter without cracking.
Therefore, this window is applied to flame detectors to prevent any flammable and explosive situations.
Product Family Description
- Features Extreme Surface Hardness Chemical Resistance
- Transmits Wavelengths Ranging From UV to Mid-Infrared
- Thinner and Stronger than Standard Glass Windows

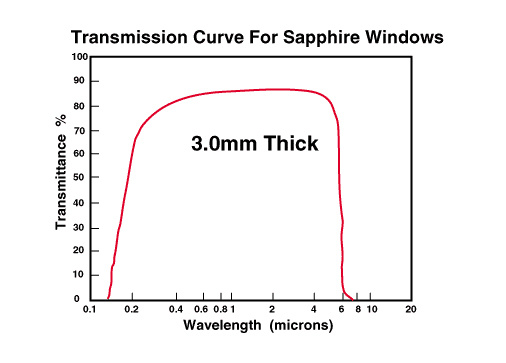

HCH Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3) and is useful in a transmission range from 0.2 - 5.5μm.
Common Specifications for Product Family
| Surface Flatness: | 2λ (typical) | Clear Aperture (%): | ≥90 |
| ≤3.5 | | 80-50 |
| Sapphire (Al2O3) |
Specifications
| Uncoated | | 52.8 |
| ±0.10 | | 5.0 |
Thickness Tolerance (mm): | ±0.05 | Type: | Protective Window |
| Surface Roughness (μm): | 0.1 per inch | | 0.008 for Visible Light
Orthogonal to Optical Axis |
| Orientation of Axis | C or A | Wavelength Range (nm): | 200 - 5500 |
