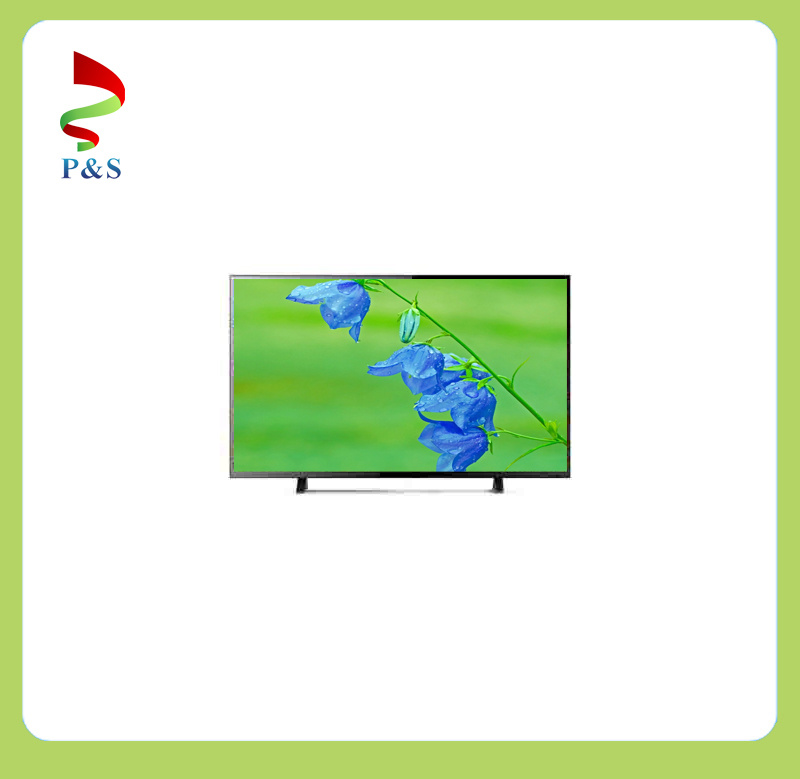

69.5 Inch IPS TFT LCD Multi-Media Display with Resolution 3840 (RGB) X2160 TV Monitor

69.5 Inch IPS TFT LCD Multi-Media Display with Resolution 3840 (RGB) X2160 TV Monitor

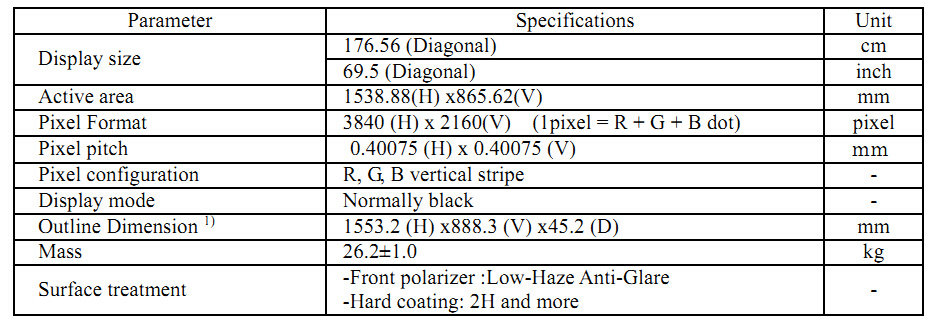

General Specifications:

1.  Application

This technical literature applies to the color 69.5" TFT-LCD module.

* This technical literature is proprietary products of SAKAI DISPLAY PRODUCTS CORPORATION ("SDP") and includes materials protected under copyright of SDP. Do not reproduce or cause any third party to reproduce them in any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of SDP.
*This product is designed to be used for general AV appliances.
* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains, automobiles, etc.), rescue and security equipment and various safety related equipment which require higher reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant system design should be taken.
* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications, telecommunication equipment (trunk lines), nuclear  power control equipment and medical or other equipment for life support.
* SDP assumes no responsibility for any damage resulting from the use of the device that does not comply with the instructions and the precautions specified in these technical literature.
* Contact and consult with a SDP sales representative for any questions about this device.
* This technical literature is subject to change without notice.

2.  Overview

This module is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver ICs, control circuit, and LED backlight system etc.  Graphics and texts can be displayed on a 3840×RGB×2160(QFHD) dots panel with  one billion colors (RGB 10bits) by using V-By-One® HS to interface, +12.0V DC supply voltages.
And in order to improve the response time of LCD, this module applies the Over Shoot driving (O/S driving) technology for the control circuit. In the O/S driving technology, signals are being applied to the Liquid Crystal according to a pre-fixed process as an image signal of the present frame when a difference is found between image signal of the previous frame and that of the current frame after comparing them.
With this technology, image signals can be set so that liquid crystal response completes within one frame. As a result, motion blur reduces and clearer display performance can be realized.
With combination of these technologies, motion blur can be reduced and clearer display performance can be realized.

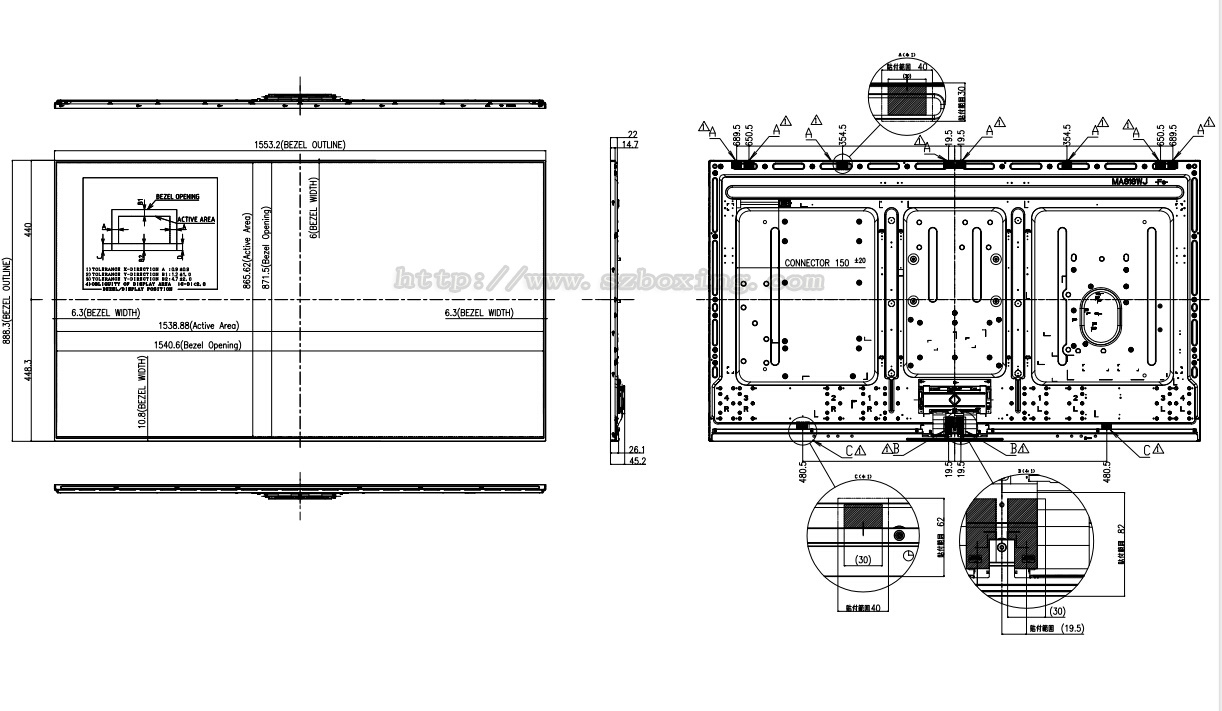

3. Mechanical Specification




Drawing:




Company Advantage:

* Small MOQ accepted

*Competitive price and short lead-time.

*ISO9001 and ROSH certificated factory supplied.

*TFT LCD module, touch panel, PCB with SMT/COB solutions

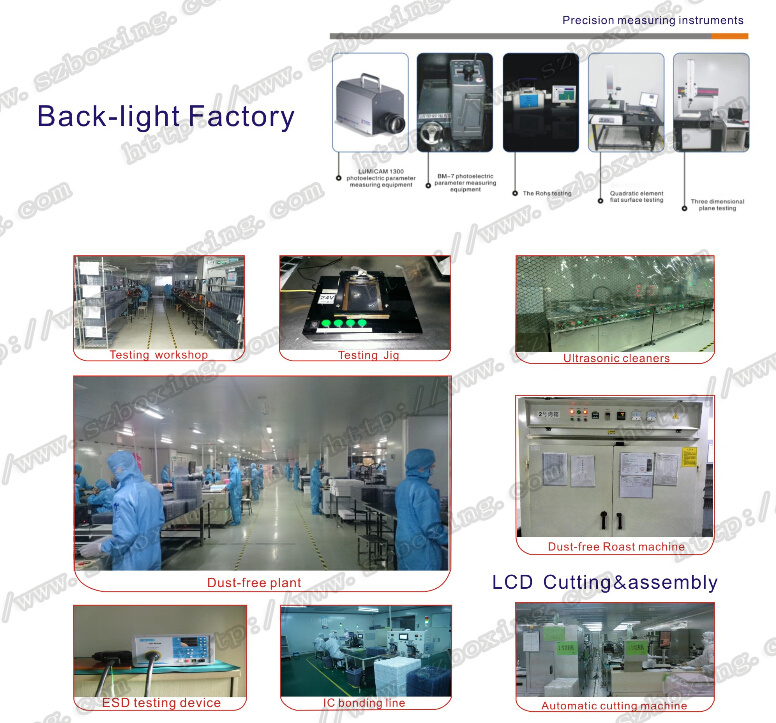

Quality Control:

Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!

We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.




Packaging and Delivery:

1). Payment Terms: T/T, Paypal

2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.

3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.

4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.

5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
