Product Features
1, Compact design with Antiglare ring
2, LM80 approved LED light source and CRI 83Ra
3, TUV, SAA, UL approved power supply
4, CE, RoHS approved
5, 3 years' warranty
Technical Specifications
| Part No. | Power | Dimension(mm) | Input Voltage | CCT | Luminous flux | Hole Cut-out Diameter |
| 3.5'' inches | | | | | | |
| 3.5'' inches | 6W | φ125*H60 | AC100-240V 50/60Hz | 3000k-3500k | 600LM±100lm | φ90mm |
| 4000k-4500k |
| 5500k-6500k |
| 4'' inches | | | | | | |
| 4'' inches | 10W | φ140*H80 | AC100-240V 50/60Hz | 3000k-3500k | 1000LM ± 10% | φ120mm |
| 4000k-4500k |
| 5500k-6500k |
| 12W | φ140*H80 | AC100-240V 50/60Hz | 3000k-3500k | 1200LM ± 10% | φ120mm |
| 4000k-4500k |
| 5500k-6500k |
| 5''inches | | | | | | |
| 5''inches | 15W | φ180*H80 | AC100-240V 50/60Hz | 3000k-3500k | 1500LM ± 10% | φ150mm |
| 4000k-4500k |
| 5500k-6500k |
| 6''inches | | | | | | |
| 6''inches | 20W | φ190*H80 | AC100-240V 50/60Hz | 3000k-3500k | 2000LM ± 10% | φ170mm |
| 4000k-4500k |
| 5500k-6500k |
| 8''inches | | | | | | |
| 8''inches | 25W | φ230*H88 | AC100-240V 50/60Hz | 3000k-3500k | 2500LM ± 10% | φ200mm |
| 4000k-4500k |
| 5500k-6500k |
| 30W | φ230*H88 | AC100-240V 50/61Hz | 3000k-3501k | 3000LM ± 10% | φ200mm |
| 4000k-4501k |
| 5500k-6501k |

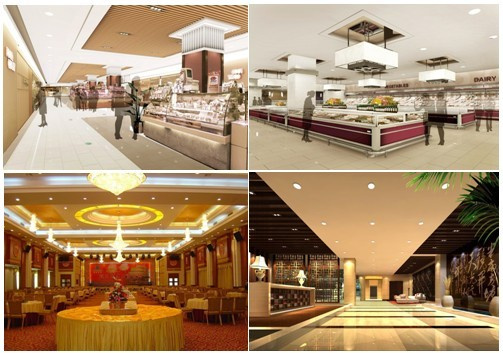

Project Case:
User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
