| Price: | US $ 223-243/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | T/T,D/P,Paypal,Money Gram |
| Product Name | ||
| Item No. | FL-8328 | FL-8928 |
| Receiver Parameter | ||
| Oscillation Model | Quartz crystal oscillator | Phase Lock Loop Frequency Synthesis |
| Frequency Range | VHF 190MHz~280MHz | UHF 500MHz~900MHz |
| Frequency Stability | ±0.001% | |
| Max Frequency Drift Rate | ±50KHz | |
| Modulation Model | FM | |
| SNR | >105dB | |
| T.H.D | <0.5% @1KHz | |
| Sensitivity | 1.2/UV @ S/N=12dB | |
| Power Supply | DC 12V~17V | |
| Audio Output | independent: 0~400mV mix: 0~300mV | |
| Emitter Parameter | ||
| Power Supply | DC 9V | DC 3V (1.5V AA*2) |
| MIC Power Consumption | 30mA | 100mA |
| Carrier Frequency | VHF 190MHz~270MHz | UHF 500MHz~900MHz |
| Frequency Stability | ±25KHz | |
| SNR | >105dB(S/N Ratio) | |
| Adjacent-channel Interference | >80dB | |
| Dynamic Range | ≥100dB | |
| MIC Type | Condenser | |
| Directivity | Single | |
| Frequency Response | 40Hz~20KHz | |
| MIC Sensitivity | -47±3dB @1KHz | |
| Working Reception Distance | 80~60M(open space) | |

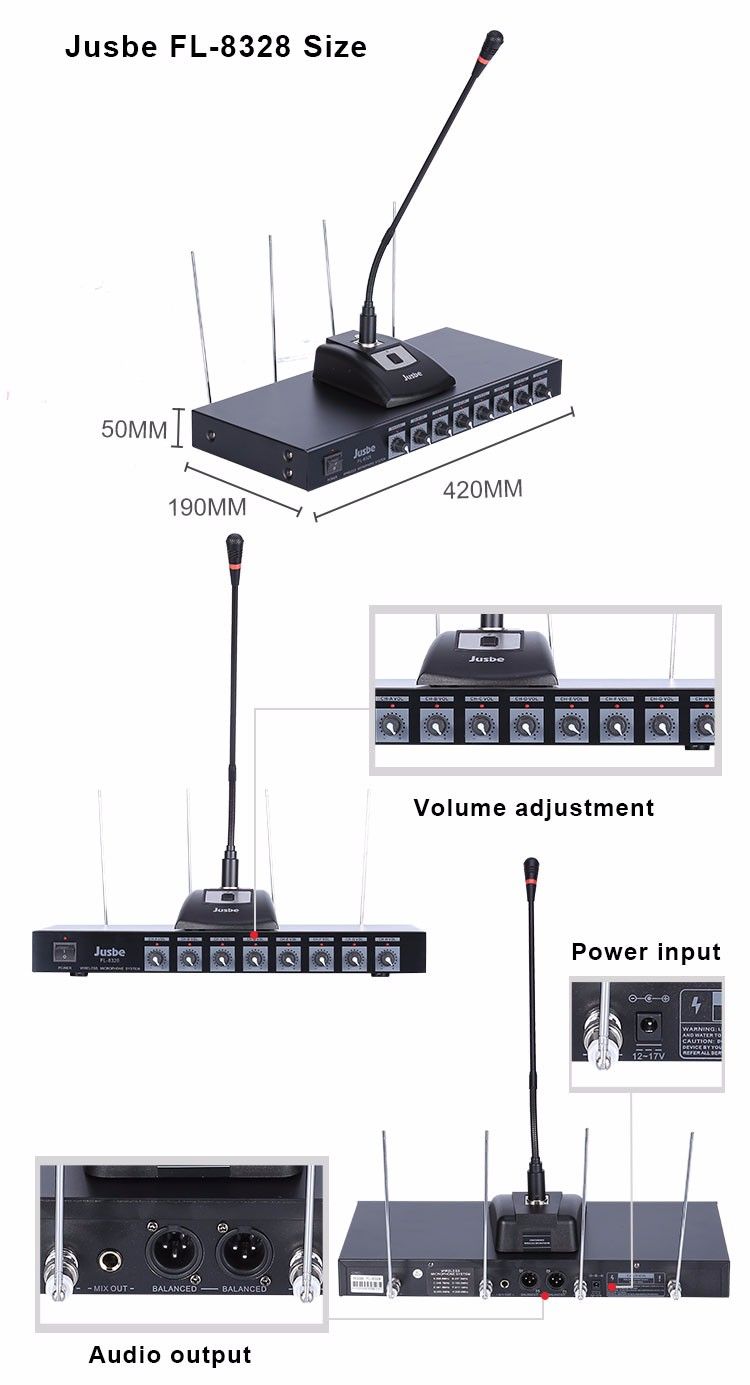

| Product Size | 420*190*50 | 420*220*85 |
| N.W (kg) | 7.5 | 8.5 |
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
| Prod Model: | FL-8328 |
|---|---|
| Frequency: | VHF 190MHz-280MHz |
| Sensitivity: | .2 / UV @ S / N = 12dB |
| Snr: | >105dB |
| T.H.D: | <0.5%@1kHz |
| Oscillation Mode: | Quartz Crystal Oscillation |
| Power Supply: | DC 9V |
| Frequency Response: | 40Hz ~ 20kHz |
| Audio Output: | Independent 0 ~ 400mv, Mixed 0 ~ 300mv; |
| Product Size(mm/Set): | 420 * 190 * 50 |
| N.W.(Kg): | 7.5 |
| Application: | Meeting |
| Signal Transmission: | Wireless |
| Directivity: | Uni-direction |
| Sound Channel: | Stereo |
| Transducer Principle: | Electrodynamic Microphone |
| Sound Field Force: | Pressure Type |
| Wireless Technology: | VHF |
| Output Impedance: | 50-1000Ω |
| Style: | Wireless Microphone |
| Connector(',s): | Wireless |
