95% 96% Alumina Ceramic Disc for Faucet Cartridge
| Price: |
US $ 0.01-0.05/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

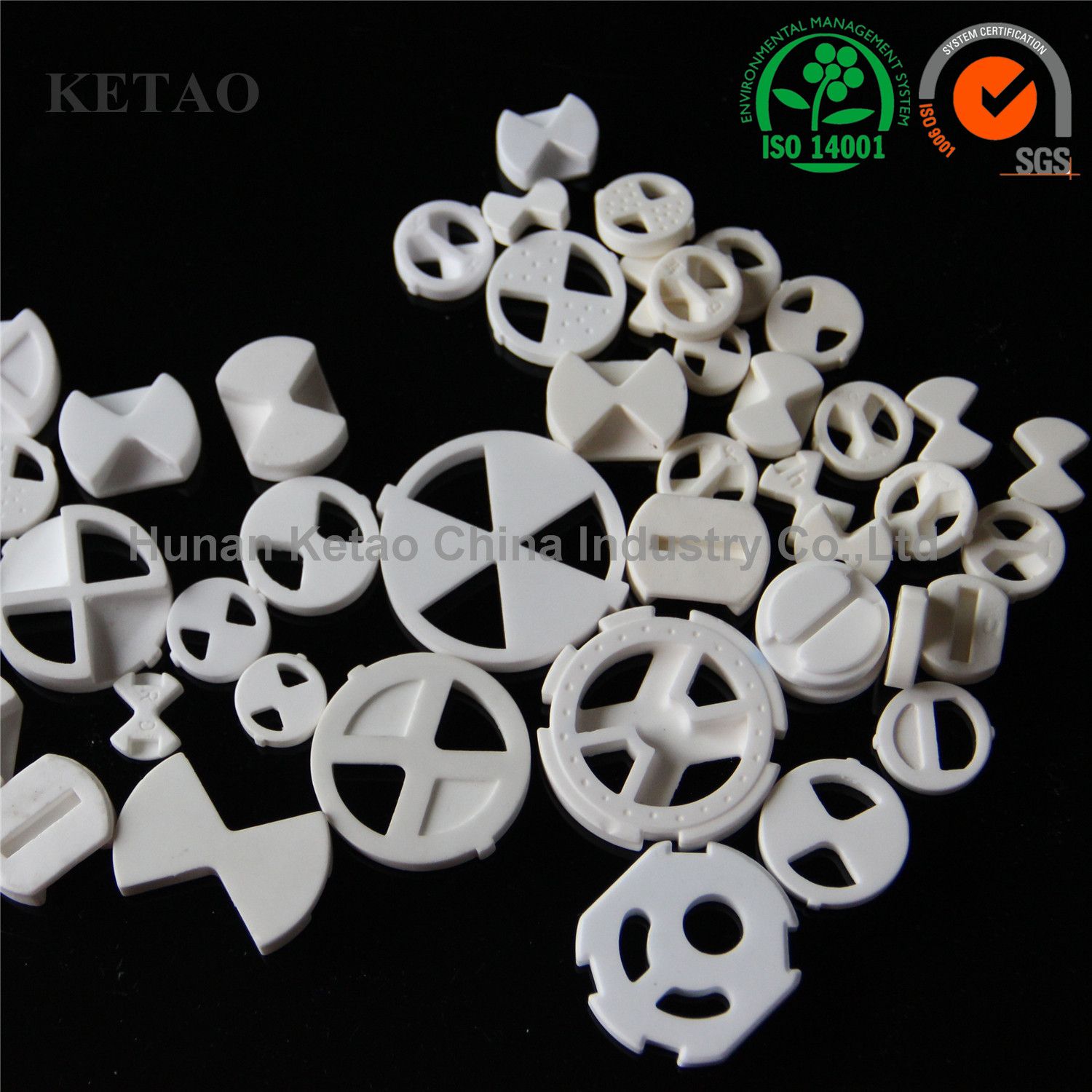

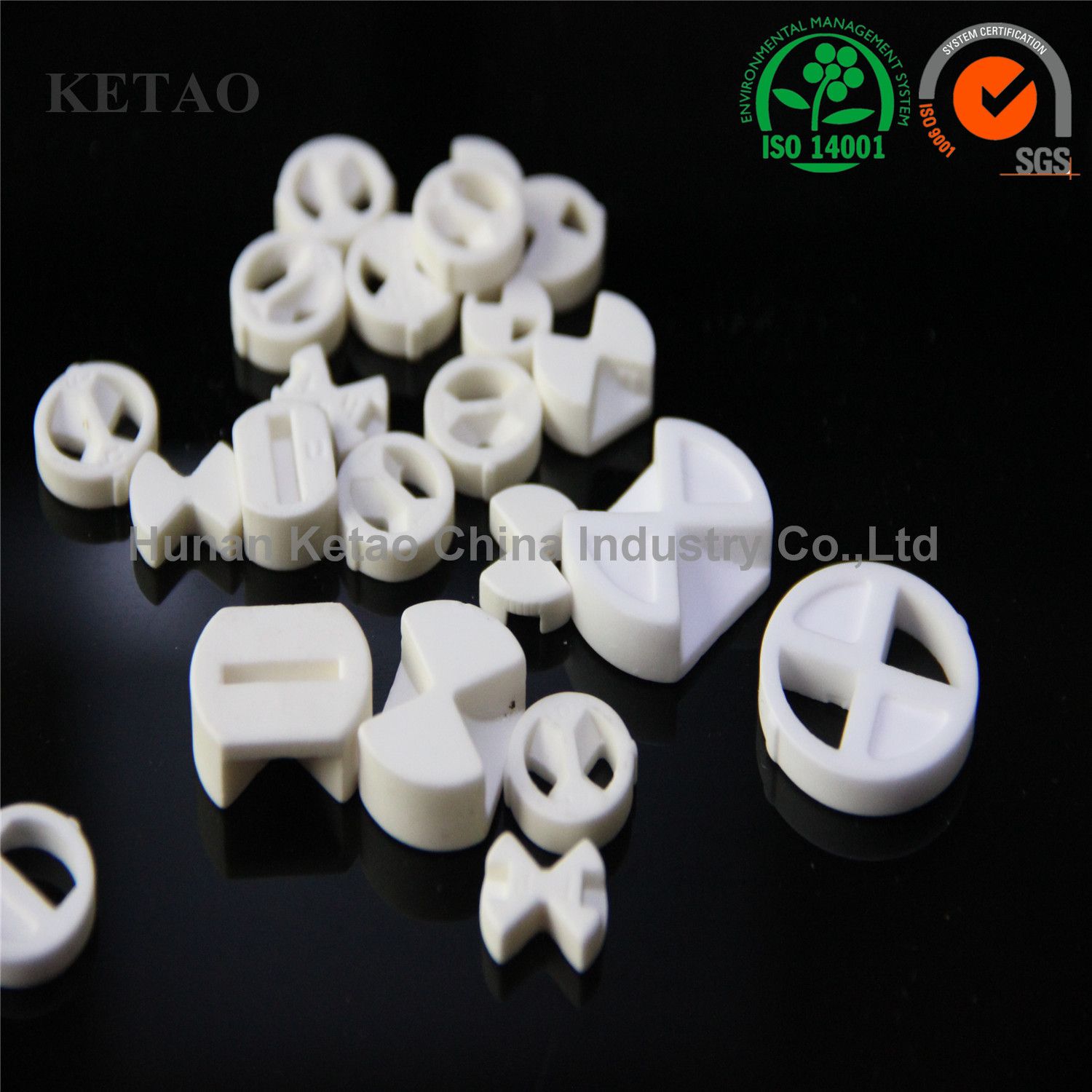

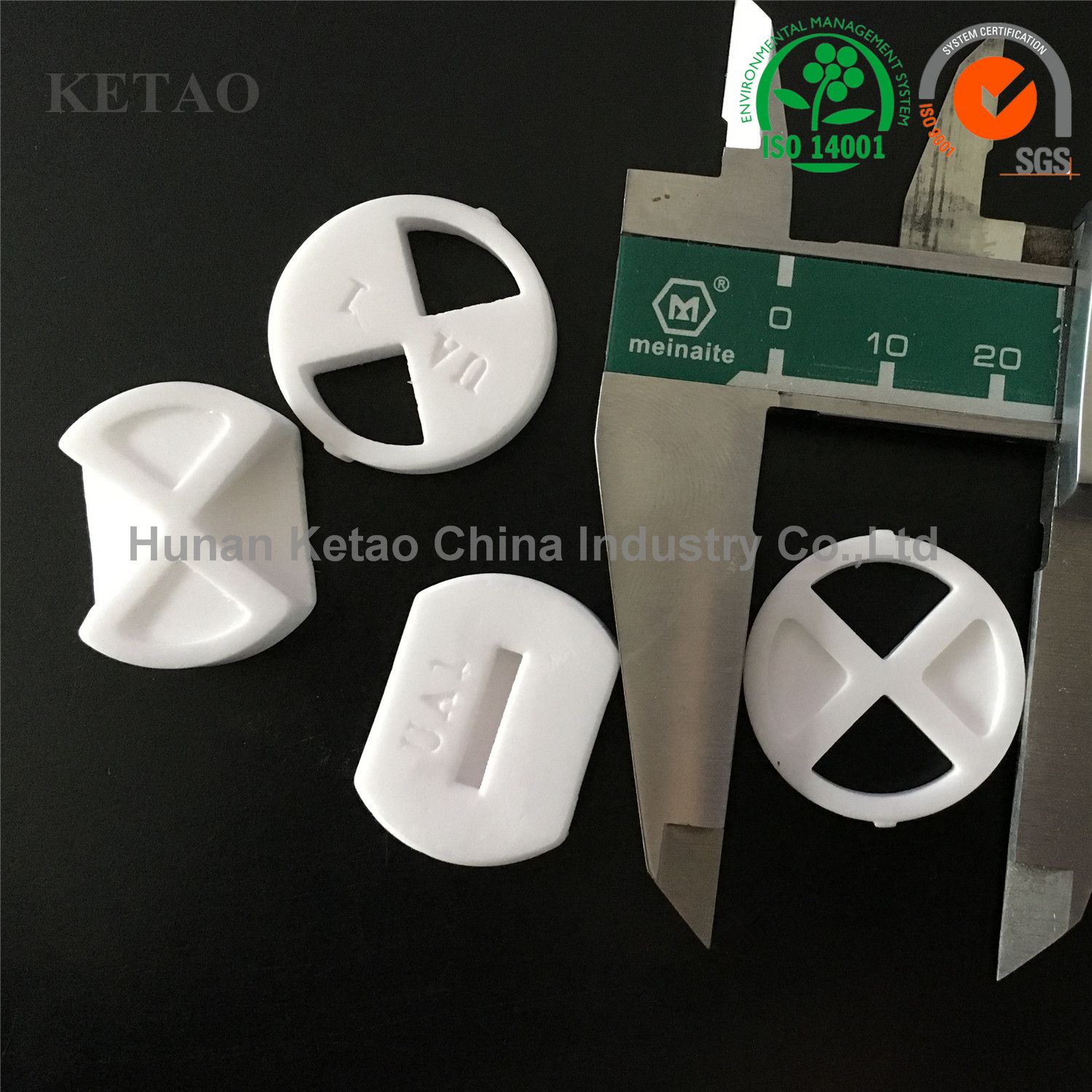

Alumina ceramic disc for faucet cartridge
Porduct Info.- Material:95-99%,Al2O3
- Colour:White,Ivory,Pink,Dark.
- OD: 11.5mm---45mm
| Item | | Unit | 95 Al2O3 | 99 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.8 |
| Water absorption | % | 0 | 0 |
| Mechanical Characteristics | Flexural strength | Mpa | 340 | 400 |
| Hardness Vickers | Gpa | 13.5 | 15.6 |
| Elastic modulus | Gpa | 320 | 370 |
| Poisson's ratio | - | 0.23 | 0.23 |
| Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 6.2-8.5 | 6.8-8 |
| Thermal conductivity | w/(m.k) | 24 | 32 |
| Specific Heat | *10-3J/(kg*K) | 0.78 | 0.9 |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 5 | 1 |
| Dielectric strength | *106V/m | 15 | 15 |
Packaging & DeliveryPackaging Details:(1)Bubble Wrap + EPS + Carton + Wooden Box ( or Wooden Frame) + pallet (2)Carton Size: 550mm x 460mm x 360mm (3)610mm x 310mm x 310mm (4)Export Wooden Box Size: Customized according to the quantity of Carton
(5)Custom package
Production Process
What can we do for you?1. Sample is available.2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.3. Inquiry replied within 24 hours.4. Patented products.5. OEM or ODM is available.6. Some extra accessories can be supplied.7.The larger quantity you order,the more competitive prices you'll get.8. Necessary Certificates can be supplied. Why To Choose Us1. What's your MOQ ;We have no MOQ for your try orders.It won't occupy too much of your money to help you to test the market you're going to enter.2. R & D Center and Factory: We have our own R & D center and factory, so we can supply you products at competitive price.3. Good Service : We treat clients as friends.4. Good Quality : We import top quality accessories to manufacture our products, we have confident we can offer you the best quality. 5. After-sales service:One year's guarantee. Wearing accessories comes with the products to help you to reduce the repair bill.www.hnktgm.com
| Prod Model: |
KT-484 |
| Colour: |
White,Ivory,Pink,Dark |
| Od: |
11.5mm---45mm |
| Type1: |
Heat-Resistant Material |
| Type2: |
Ablative Material |
| Finish: |
Alumina |
| Installation: |
Any |
For more than 20 years, HUNAN KETAO China INDUSTRY Co., Ltd has been a leader in developing and manufacturing the highest quality advanced ceramics. Because of our core focus on ceramic technologies, KETAO is uniquely positioned to provide you with superior products and dedicated service for an unparalleled range of applications. With innovative design and engineering, size capability, capacity, and cost-effective solutions, KETAO products stand ready to meet the most stringent demands of your industry. <br><br>We offer high purity Alumina, Mullite, Silicon Carbide, Silicon Nitride, and fully stabilized Zirconia products. These impervious fine grained ceramic products are used in many applications where it is necessary to provide a protective atmosphere, in corrosive environments, at high temperatures without contamination. Material selection depends upon operating working conditions such as peak temperature, chemical environment, and abruptness of temperature change. <br><br>Standard products include various tubes, rods, crucibles, plates, nozzles, rings and labware items that are available for manufacture and design. We also have a significant capability for producing custom engineered products. Give us a call at or email us, so one of our experienced engineers can assist you in the material selection and design of your advanced ceramic component.
