Introduction

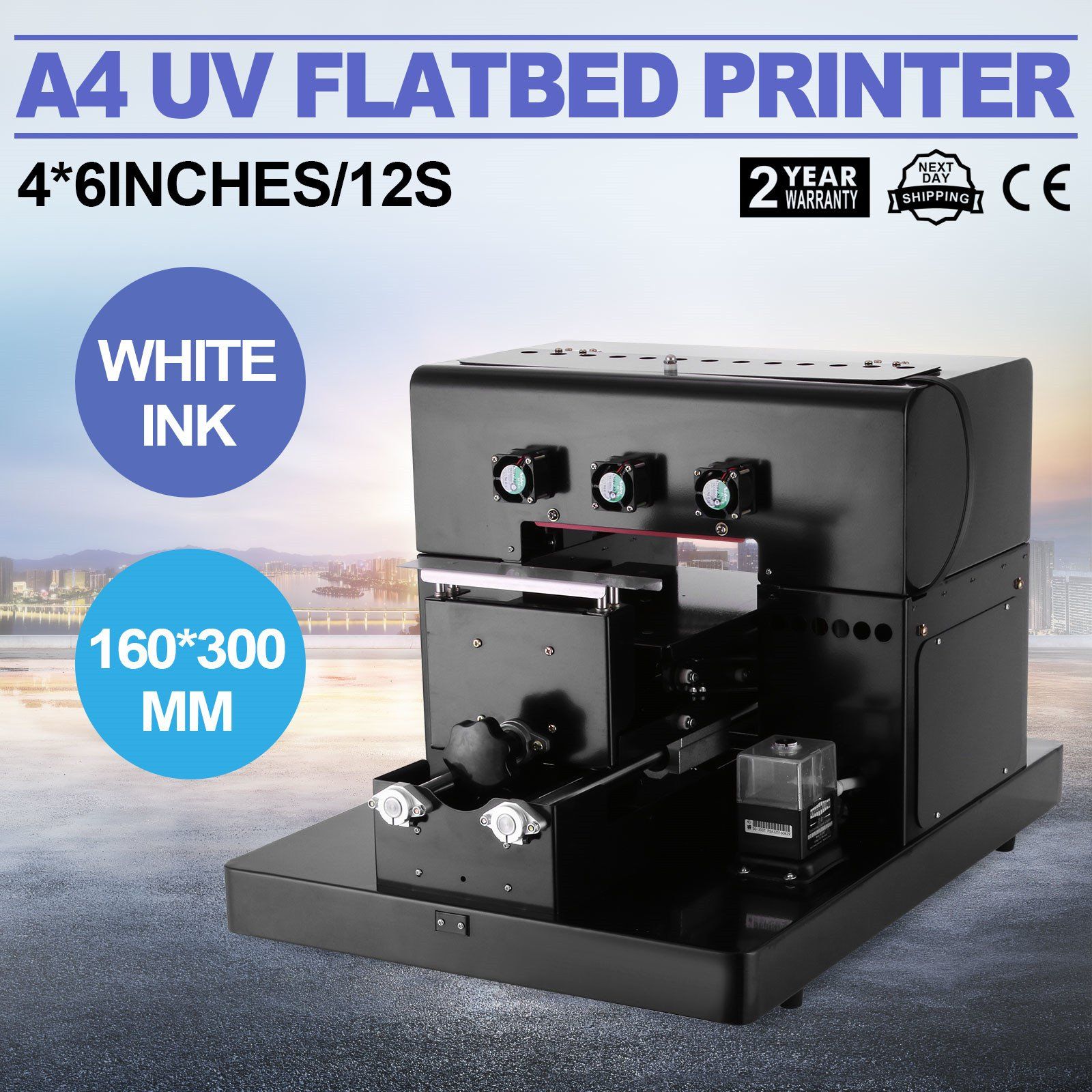

This is a brand new A4 UV printer designed for precise printing on flat surfaces. It is easy operating and of universal usage. Not only is it suitable for different kinds of plastic, fabric, and leather, you can also count on it while printing on metals, wood, bamboo, glass, ceramic, stone and so on. UV printers are widely used for making mobile phone shells, puzzles, scutcheons, labels, decoration pictures, leatherwares, etc.
Products of any color can be printed by using colored and white UV ink. It's able for direct printing without pre-coating, heating or any pretreatment. Our printer is equipped with both air and water cooling, enabling UV ink to dry immediately after printing. We are clear that printers without extraction fan are often faced with the problem that machine can often be polluted by the ink, causing frequent malfunctions. However our printer is equipped with strong extraction fan for extracting ink spray, thus decreasing malfunctions significantly. Combined with anti-corrosion pump, its lifespan is increased obviously.
Applicable Material
Plastic: Acrylic, ABS, PVC, PP, PE, PU, etc.
Fabric: Cotton, nylon, polyester, spandex.
Leather: PVC leather, PU leather, real and artificial leather.
Metal: Gold, silver, copper, iron, stainless steel, aluminum alloy.
Others: Wood, bamboo, crystal, glass, ceramic, stone and so on.
Cautions
It is better to keep some cleaning liquid in stock in case the machine needs cleaning.
If you use white UV ink, shake it on alternate days and check before printing.
Press ink button and check printing every time when printing has been stopped for more than one hour.
Room temperature may influence printing quality. Surroundings are suggested to be controlled between 20-30ºC, humidity 40%-70%.
RIP software is necessary for printing white color, and its inner ICC is very good for all colors.
Will yield the greatest returns on investment for professionals, please think twice before ordering.
Features
CE & FCC certification
Mini led UV flatbed printer
Universal usage on flat surface
Printing height adjustable
CISS system for easy refilling
No pretreatment, coating or heating
Applicable for various materials
No fade of color
Can print out embossed image
Ink drys immediately after printing
Direct print from PC onto flat product
2 years free warranty
Technical
Working Voltage: 110V
Power: 90W
Usable Ink Type: LED UV ink
Print Thickness: 0-50mm (0-2")
Printing Speed: 4*6 inches/12s
Printing Height: 2" (50mm)
Max Printing Size: 6.5"*12" (165*300mm)
Language: English, Chinese
Connection: USB 2.0 port
Working Condition: 68~86F ( 20-30ºC), humidity 40%-70%
Ink System: CISS System, easy for refilling
Print Technology: Non-touch piezoelectric type inkjet printing
Operation System: Windows7-10
Software: Photoshop/coreldraw/Illustrator/BR RIP/Microsoft office, etc
Image Format: TIFF (RGB&CMYK), BMP, PDF, EPS, JPEG, JPG, etc
Gross Weight: 34kg (74.8lbs)
Package Dimensions: 750*560*520mm (30"*22"*20")
Package
1 X A4 UV Printer
2 X Ink Damper
1 X RIP Software Set
1 X CISS Set
1 X High Quality USB Data Line Set
1 X Solvent Resistance Needles and Tube Set
No ink or any liquid included in the package
