Acrylic Glass Sheets/Coloured Plastic Sheet

What is Acrylic?
Acrylic sheet is named PMMA sheet, Plexiglass or Organic glass sheet. The Chemical name is Polymethyl methacrylate. Acrylic holds the physical properties among plastics due to the excellent transparency which sparkling &transparent like crystal, it is praised as "Queen of Plastics" and is very delighted by the processors.
The term "acrylic" is used for products that contain a substance derived from acrylic acid or a related compound. Most often, it is used to describe a clear, glass-like plastic known as poly(methyl) methacrylate (PMMA). PMMA, also called acrylic glass, has properties that make it a better choice for many products that might otherwise be made of glass.

Product Features:

1. Clear, Transparency rate can go to over 95%.
2. Various color available, long-time lasting.
3. Highly glossy, easy clean
4. Easy to mould. No-toxic acrylic sheet
5. Bright, insulated, chemical en durability, anti-bump, easily processed, a virulence, anti-wallop, recycled.
6. Good at anti-UV. Color fades less than 30 & in 3 years outdoor may show color difference for different batch.
7. Density of acrylic sheet: 1, 200kg/cbm
8. Can be used for vacuuming, engraving, silk-screen printing, polishing, processing, etc.

Specification of Acrylic Sheet

Specification: 1000X2000mm,1220 X 1830mm, 1220 X 2440mm, and 2050 X 3050mm
1000 X 2000mm 1270 X 2490mm, 1270 X 1880mm, 1250 X 2470mm
Can be made as your customized
Thickness: From 1mm to 50mm
Colors: Clear, opal, red, blue, yellow, green, brown. More customized color is welcome!

Production Packing & Inspecting.:

 Raw material: 100% virgin material of LUCITE or Mitsubishi for acrylic sheet.
The acrylic sheet was made from the MMA monomer, which was manufactured by worldwide famous factories, after thermal treatment in high temperature drying room for 5-6 hours. It is an excellent product which complies with SGS.
The penetration rate of visible light is 92%. It is well processed and has stable quality.

Our acrylic sheet conforms to the environmental protection standard, already though SGS authentication and CE. With quality inspecting before packing, If these are more than 3 spots, it will be canceled.

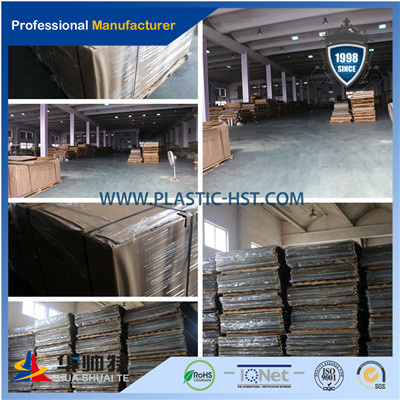

Packing of Cast Acrylic Sheet
Both sides covered with kraft or PET film, several sheets per pallet
Bulk cargo packing
2 tons per tray, use wooden pallets on bottom, with packaging film packages all around ensure transportation security.
Full container load packing: 18-20 tons of a 20 foot container with 10 tray.

Product Application:

 1.Advertisement: Light Box,Signboard,Signs,Display Rack;

  2.Lighting: Daylight Lamp,Ceiling Lamp,Lampshade;

   3.Civilian Goods: Bath Room, Art Work, Cosmetics, Bracket,Aquarium;

   4.Construction:Show Window,Noise Barriers,Daylighting Shade, Telephone Booth;

   5.Vehicle: Door and Window of Car and Train;

   6.Medical: Infant Incubator, Many Kinds of Medical Apparatus;

   7.Industrial: Instrument Surface Panels & Protecting Covers.



Mold Size		Art. No.	Product Size with glue tape		Product Size without glue tape
1270*2470		T	1220*2420		1220*2440and 1220*1830(Standard size) Cut-to-size services also are available which is according to the demand of customers.
1300*1900		Q	1250*1850
1070*2070		Q1	1020*2020
1300*2500		L	1250*2450
1330*2550		L1	1280*2500
1330*2550		LM	1280*2500
1330*2550		LM2	1280*2500
1370*2610		L2	1320*2560
1370*1770		S	1320*1720
1710*2710		R	1660*2660
2050*3050		W	2000*3000
1600*3100		Y	1550*3050
2100*3100		M	2050*3050
2110*3110	M1			2060*3060



1. Excellent transparency.

2. Good mechanical performance.

3. Good electrical insulation.

4. Stable and durable.

5. Non-toxic.

6. Superior impact resistance.

7. Crack resistance.

8. Superior weather resistance.

9. UV light resistance.

10. Chemical resistance.

11. Stable color under outdoor exposure.

1. Indoor decoration board, partition board in office and house.

2. Product design.

3. Engraving and signboard.

4. Making gift items.

5. Making kitchen and sanitary application.

6. Door and window cover.

Thickness (mm) 2 ~ 50

Dimensions (mm) 1020x2020 1220 x 1830, 1220 x 2440, 2050 x 3050,1250x1850

Color clear, milky, opal, black, red, blue, yellow, green


Our Acrylic Average Physical Properties:


Specific gravity	1.19-1.20
Hardness	M-100
Absorptivity of water (24h)	0.30%
Tension
Coefficient of Rupture	700kg/cm2
Coefficient of Elasticity	28000kg/cm2
Bending
Coefficient of Rupture	1.5kg/cm2
Coefficient of Elasticity	28000kg/cm2
Transmittance (parallel rays)	92%
Full rays	93%
Heat Distortion Temperature	100oc
Coefficient of Linear Expansion
Ultimate Temperature of Continuous operation	80oc
Thermoforming Ranges	140-180oc
Insulation Strength	20V/mm


The specification of products


Part size, thickness and weight
Thickness   Size(m)	2mm	3mm	4mm	5mm	8mm	10mm	20mm	30mm
1.25*2.45 122 244	7.35kg 7.14	11.0kg 10.7	14.7kg	18.0kg 17.8	28.2kg	35.0kg	73.0kg	110kg
1.25*1.85	5.6kg	8.6kg	11.4kg	13.8kg	21.6kg	26.7kg	55.6kg	86kg
1.50*2.10	7.6kg	11.2kg	14.7kg	18.2kg	29.2kg	36.0kg	70.5kg	112kg
1.60*2.20	8.5kg	12.8kg	17.0kg	21.0kg	32.2kg	40.2kg	84.5kg	128kg
1.60*2.60	10.0kg	15.0kg	20.0kg	35.0kg	40.0kg	50.0kg	100.0kg	150.0kg
2.05*2.30	11.4kg	17kg	22.9kg	28.5kg	45.6kg	57kg	107.5kg	170kg
2.05*3.05	15kg	22.8kg	29.8kg	37.0kg	56.5kg	68.5kg	150kg	228kg


Why you choose us:

 1. We are professional manufacturer with many years of experiences.

2. We have advanced facilities for production, most of the products are
    welded by automatic machine.
3. We have SGS and ASTM certificates which can assure the quality of our products.
4. We have many years of export experiences, our friendly and professional sales
    team can off er favorable services.
5. We have strong engineering team that can give best solution for your projects .
