Taian Crystal Machinery Co., Ltd. >> Alloy Wheel Rim Repair CNC Lathe Taian Crystal Machinery Wrm28h

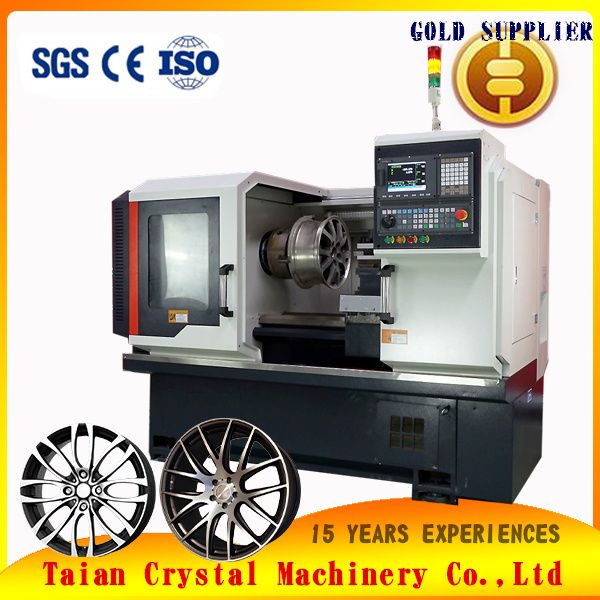

Alloy Wheel Rim Repair CNC Lathe Taian Crystal Machinery Wrm28h

Alloy Wheel Rim Repair CNC Lathe Taian Crystal Machinery Wrm28h
Price: US $ 13700-13900/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Diamond Cutting Alloy Wheel Repair Machine, Rim Repair Machine AWR28H


Specification of Rim Repair Machine AWR28H:
Ø Supply repairing Alloy wheel up to Max 28'
Ø Automated Self-plotting Digitization by Probe System
Ø Easy Operate
Ø CE Certification
Ø Free Training video
Ø Self-developed Curve Optimize software, Easy to Operate
Ø 7x24 Hours Email or Telephone Technology Support

Standard Configuration of Rim Repair Machine AWR28H:
Ø SYNTEC CNC control system
Ø High Precision Ruby Touch Probe system
Ø 3-Jaws Chuck(With Special Soft Jaws)
Ø Diamond Cutter 1 set
Ø Automatic Electronic Pump Lubrication
Ø Manual Quick Change Toolpost, Four-station
Ø Full Enclose(Security Guard Door)
Ø Specific Digital Optimization Software
Ø Training Video CD
Ø Other Accessories
Technical Date Sheet of Rim Repair Machine AWR28H:
ITEMSSpecifications
Max. swig over bed (mm)(inch)Φ770 (30')
Max. Size of alloy wheel (inch)Φ720 (28')
Adjustable stroke of carrier in X direction100mm
Cross slide travel (mm)390
Width of the rail (mm)300
Length of the rail (mm)1300
Size of the three-jaw chuck (inch)12'
Range of spindle speed (RPM)50~2000
Spindle speed controlAutomatic
Spindle bore  (mm)Φ82
Taper of spindle bore1:20(Φ90)
Max. size of tool post25×25mm
Stations of tool carrier4 position
Min. setting unit of motor(Z) long  0.001mm, (X) cross  0.001mm
Moving speed of post(Z) long  8m/min, (X) cross 6m/min
Motor power7.5KW
Mchine base(cast iron base)Whole
Machine size(L×W×H) (mm)2140 ×1600×1860
Package size2300×1750×2100
Net weight2200Kg

See how this machine work at:
https://youtu.be/YYPKc4KcNRQ?list=PLTai_NHPClI1umzgurovTzBRK4v7hkIk4




Prod Model: AWR28H
Color: White, Red, Black, Blue
Manufacturer: Yes
Stock: Yes
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

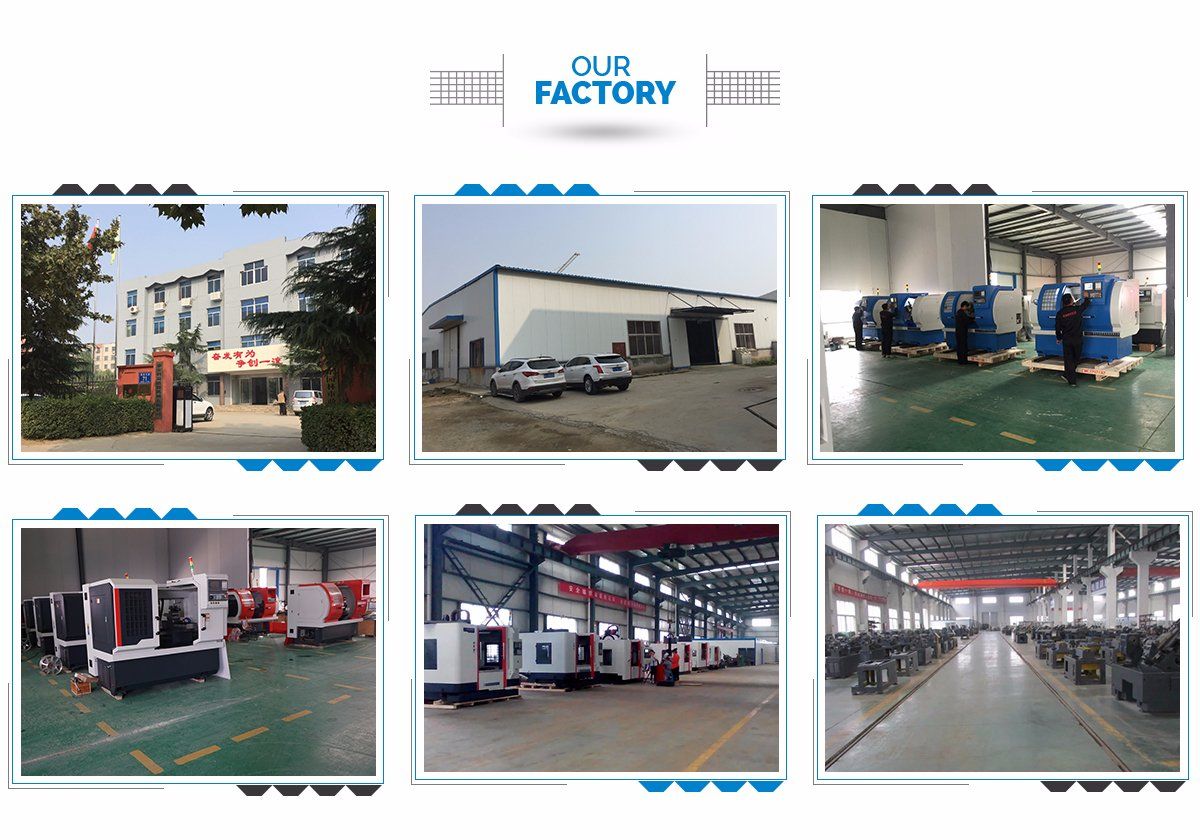

Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
