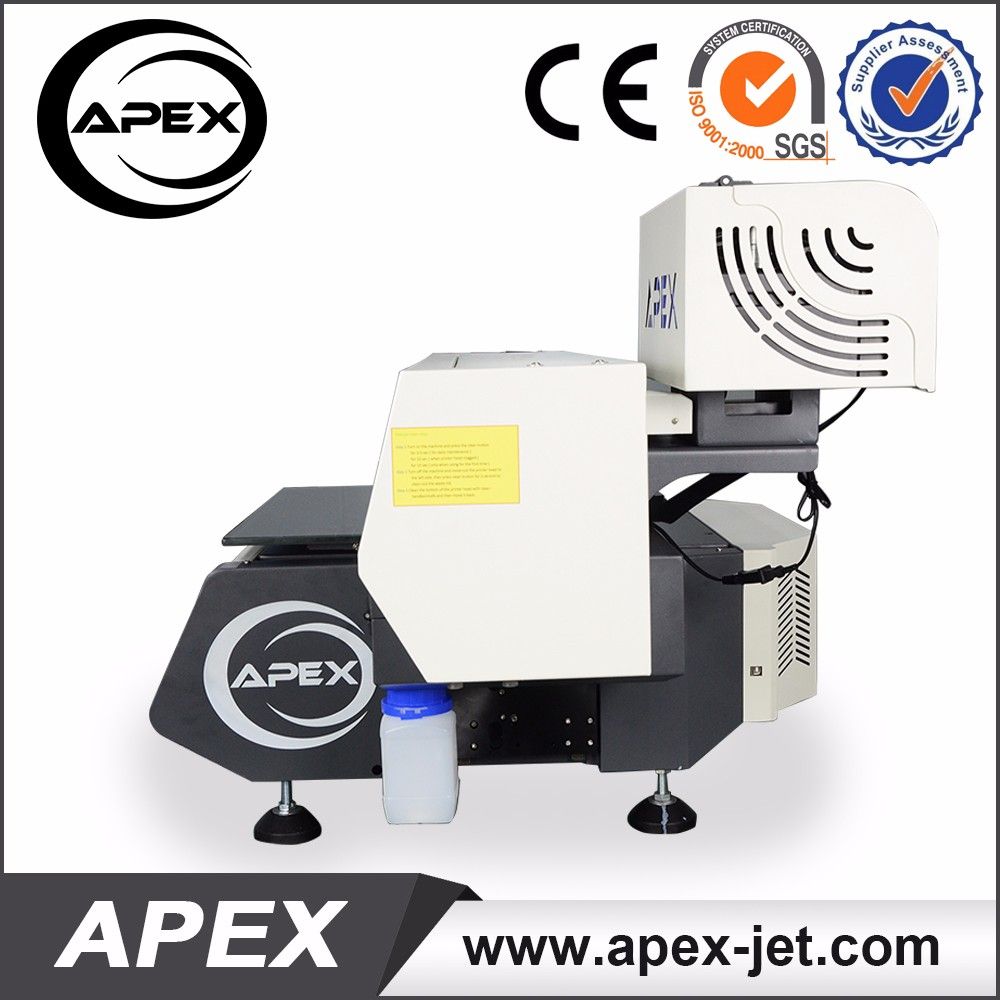

Apex Newest Desktop Automatic UV4060 Screen Printing Machine

Upgrade of Digital UV4060 Flatbed Printer Machine
The digital UV flatbed printer is the latest UV machine of Microtec company. This model is designed for industrial bulk production with high printing speed, which can print on almost any material directly. With UV
light irradiatingduring printing procedure, images on object surface are dry fast and scratch resistance.




· The UV light source can be adjusted
· Auto height measurement
. Power clean
· Can print on any material directly
· Ideal for industrial bulk production with high printing speed
· Finished products is Water proof, UV proof, and Scratch proof
· Finished product is suitable for outdoor use
· Max printing Size: 60*40cm
· With Carry handle
· The printing machine can print white color
· Epson DX5  (Nozzles 180x8) Printer head
· 1 Year Guarantee and lifetime maintain


Function:
* Auto Height Sensor: Smartly Detect the Distance between Media and Printer Head
*  Power Clean:Cleaning Can be Made Without Connection to PC.
*  Water Cooling System: Water's high specific heat capacity, density, and thermal conductivity,  allows *  water to transmit heat more easily. So it can more efficiently cool down UV LED light, in  order to prolong  its lifetime.

UV Light Brightness Adjust:Adjust UV light Brightness to Fit Curing Needs.

Special Fixtures, Bulk Production: To increase the output of production for special product, Apex  supplys specific fixture which makes it possible to implement a batch printing. Contact Now, to custom  your unique fixtures for special promotion  items.

 Vacuum table(is comming soon...):
 1, Consists of a typically flat rigid surface in which exists small holes to evacuate air from under a workpiece, as  to apply varying vacuum from between the desired workpiece and table to maintain a clamping force.
 2, To make the soft printing materials like leather more smooth and level, so as to get the best printing result.




Models	MT-FP4060-UV	MT-FP4060S-UV
Price	US$5800	US$6200
Materials to print	Metal, Plastic, Glass, Wood, Ceramics, Acrylic, Leather, etc (Almost Any Material)
Feature	Can Print on Almost Any Material Directly Ideal for Industrial Bulk Production with High Printing Speed Finished Products is Water Proof, UV Proof, and Scratch Proof Finished Product is Suitable for Outdoor Use Max Printing Size: 60*40cm Print White Ink and Color Ink at One Pass Epson DX5 (Nozzles 180x8) Printer Head Stirring System for White Ink	Based on the Advantage of UV4060, the UV4060S Will Offer More Functions: Auto Height Sensor: Smartly Detect the Distance between Media and Printer Head UV Light Brightness Switch: Adjust UV light Brightness to Fit Curing Needs Power Clean: Printer Can be Cleaned Even Without Connection to Computer
Machine Dimension	118 * 78 *45cm	130*80*55cm
Machine Net Weight	90KG	106KG
Warranty	3 Months Warranty for Printer Head with Using Microtec UV Ink. One Year for All other Machines Parts. Lifetime Maintain. Tips: To Prolong the Service Life, We Recommend Not Work More than 8 Hours Per Day.




Materials to Print	· Metal, Plastic, Glass, Wood, Ceramics  Acrylic, Leather, etc
UV Curing System	LED UV Lamp (air cooling)
Max. Print Format	24''*16'' (60x40cm)
Max. Print Gap	14cm
Power Requirement	50/60HZ   220V(±10%)>20A
Environment	20 ~ 28 C  HR40-60%
Print Head	Epson DX5  (Nozzles 180x8)
X/Y/Z-axis motors	Servo Motors
RIP Software	Photo Print RIP
Software Language	English/Chinese
Operation System	Microsoft Windows 98/2000/XP/Win7
Ink Type	UV Ink
Ink color	K C M Y W W W W
Ink Supply System	Continuous Ink Supply System(CISS)
Interface	USB2.0
Machine Net Weight	106KG
Machine Dimension	130 * 80 *50cm



Company Introduction

APEX develops, manufactures and markets the most economy and good performance solution in direct flatbed UV and DTG printers for many years. APEX is strongly backed by seasoned professionals with extensive experience in the digital printing industry. Our mission is to provide one-stop service, including full ranges of printing substances supply. APEX UV and DTG Printers are designed for industrial bulk production with high printing speed, which can print on almost any material. Widely used in promotion items (medals, photo frames, package printing, leather, customized gifts ), signage (home decoration), phone and pad case, t-shirt printing etc. Images on the object surface are dry fast and scratch resistance.

At the same time, APEX is positively establishing distributor network all over the world to provide nearby technical support and printer maintenance. With experienced R & D Department, Molding Department and Injection Department, APEX keeps developing the state-of-the-art UV Printers & DTG Printers and printer trays to meet customers' needs. We have also established close relationship with banks and freight forwarding agents to guarantee our customers satisfactory services. Whether you are a new business starter, medium business runners for promotional items, or large company considering enhancing your existing product line or cutting the production cost, at APEX, we can provide the tailored solutions matching your requirements.

Our Services

Free product samples.
Free machine operation training in factory.

Warranty:
• Only once usage warranty for printer head(If the first operation is normal working, Microtec will not undertake any responsibility of this printer head.)
• One year for all other machines parts;
• Lifetime maintain;
Tips: To prolong the service life, we recommend not work more than 8 hours per day.
Why Apex?
1. 16+ Years Manufacturer
2. ISO9001, CE, MSDS Certificated
3. Free on site Training in Factory
4. Door to Door installation & maintenance
5. Constant R & D
6. Double Quality Control
7. International shows
8. 24-7 on line
9. Life time maintenance.
10. Worldwide agents
In addition, our constantly expanding network of agents and distributors spanning over 70 countries on six continents means you will be supported by one of the largest and most responsive customer service organizations within the industry.

Trade Show
