Atc CNC Woodworking Machine 1325

Atc CNC Woodworking Machine 1325
Price: US $ 18000-21000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union

Product Specifications


Prod Model: DW25M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Size: Customize Accepted
OEM: Accepted
Driver Motor: Japan Yaskawa Servo Motor
The Manner Of Change Knife: Circular Disk (Linear for Optional)
Operating System: Syntec
Spindle: 9kw Italy Hsd Atc Spindle
The Number Of Knife: 8 PCS
X, Y, Z Rail: Taiwan Hiwin or PMI 25mm Linear Guide Way
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Manual
Controlling Mode: CNC
Certification: SGS
Type: Engraving and Cutting Router

Product Description

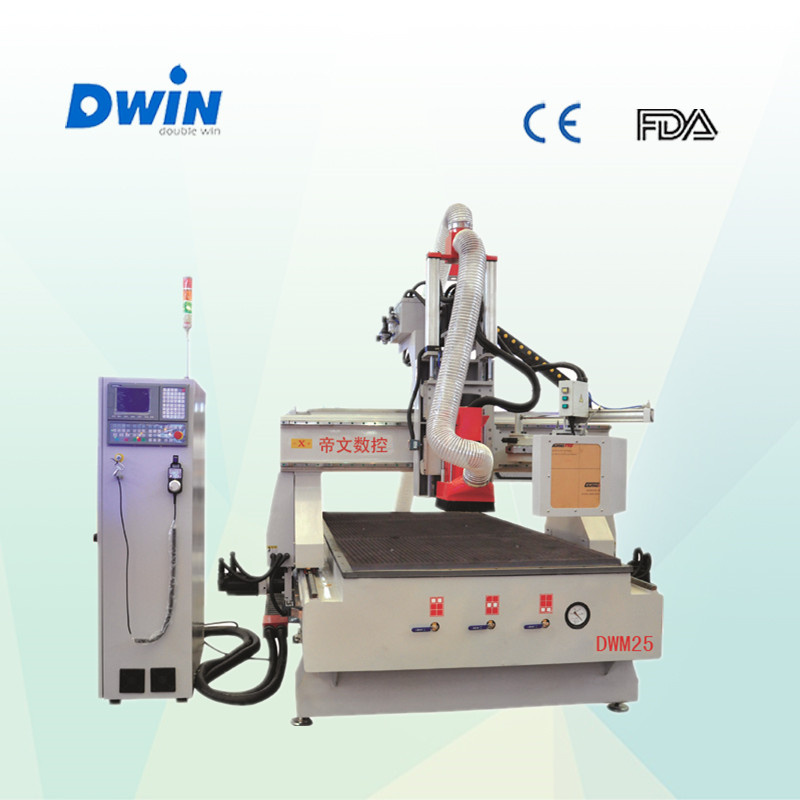

              ATC cnc woodworking machine DW25M
Brief introduction of ATC CNC Woodworking Router Machine:
1. This is an economic tool changer CNC router; it can change 8 tools automatically.

2. This model chooses Italian 9KW HSD ATC air cooling spindle, Japan Yaskawa servo system inverter.

3. We use spray and 4mm thickness stainless steel tank for stone processing.

4. SYNTEC control system to avoid the mistake of the software. It can protect the table and the machine. This is a simple auto-tool changer CNC router for wood working. It can save the time to change the tools.



Technical Parameters:



working area

1300X2500X300mm

Max moving speed

40000mm/min

Max Engraving Speed

25000mm/min

Reposition Accuracy

<0.05/300mm

Spindle

9KW Italy HSD ATC spindle

Inverter

11kw Taiwan Delta inverter

Spindle rotation:

6000-24000rpm

Tool magazine and number of tools

Circular disk  ATC (Linear for optional), 8 tools

Tool diameter

2mm-20mm

Transmission

X, Y axis: High precision helical rack; Z axis: imported Taiwan TBI Ball Screw

X, Y, Z Rail

Taiwan HIWIN or PMI 25mm linear guide way

Beam

cast Steel

Frame

Tube structure

Table surface

vacuum & T-slot combined

Control System

Taiwan SYNTEC

Software

Type3, Art CAM

Motor/ Driver

Japan YASKAWA servo motor

Voltage:

AC380V/50HZ


ATC CNC Router machine Features:

1, Welded structure by thick profiled steel

2, Assembled with precise parts.

3, Automatic lifting device for vacuum suckers allows the easy operation for the job on the   side of working   pieces. Vacuum working table is with double cavities and bakelite material  with high absorption power.

4, Imported Germany Siemens high performance control system, separated keyboard control, color LCD display.

5, With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.



Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal wordmaking, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4.Relief sculpture and 3D engraving
5.Cylindrical object

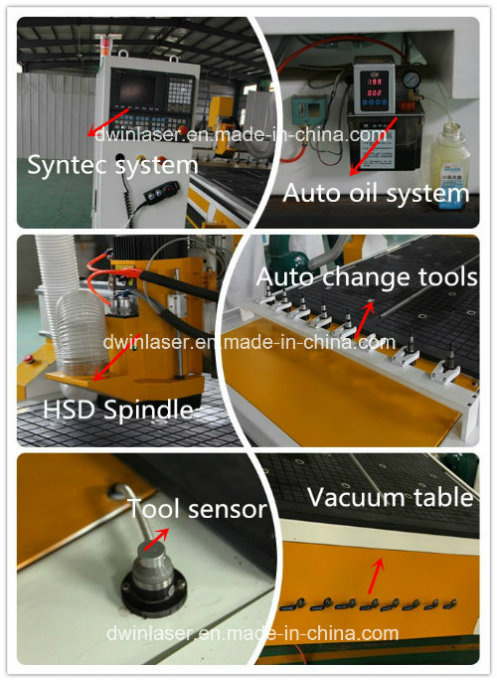

Machine parts

Samples:


After-sale service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts hav
e any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the cnc router
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
