Main Features1, Full automatic performed bags packaging system suitable for large and medium size production industries.
2, Typical advantages of preformed pouch packaging system are minimum material wastages, easy product and bag size changeover, better sealing property especially for boil-in-bag and pasteurize bag products, excellent packaging presentation, versatile and suitable for all types of preformed bags packaging including sides seal bags, fin seal bags, gusseted bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc. Only by quick adjustment without size parts change over.
3, Operators'friendly in design
4, Easy to clean and low in maintenance.
5, Complying with GMP standard, all product contact parts are in stainless steel and food grade materials
6, Sate of the-art PLC and touch screen electric control system Optional
7, Wash down and anti-rust construction
8. Possibility to lick-up and synchronize with other up and down stream packaging equipment
Applications 1. Solid: Candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, dailycommodities, cooked food, pickles, puffed food, pet food, etc.
2. Granule: Grain, refined monosodium glutamate, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, granular drug, pesticide, fertilizer, feed, etc.
3. Powder: Spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, washing powder, pesticidesfertilizers, chemical raw materials.
4. Liquid: Rice wine, soy sauce, ricevinegar, fruit juice, beverages, detergent and so on.
5. Thick liquid: Tomato sauce, peanutbutter, jam, chili sauce, bean paste and so on
Parameter| Model | MR8-200R |
| No. of working station | Eight |
| Function | Bags dispensing, Coding Opening, Dosing#1, Dosing#2, Heat sealing#1, Heat sealing#2 and Bag discharge |
| Pouch Type | All type of heat sealable preformed side seal bags, fin seal bags, gussetedbas, bloc bottom bas, zip-lock erecloseable bags, stand-up pouch with or withou spout etc. |
| Bags size | W100-205mm L: 100-300mm |
| Filling Volume | 5-1500g(depending on type pf product) |
| Capacity | 25-60bags/min(depending on type of product and packaging material used) |
| Total power consumption | 2.5Kw |
| Mahine Weight | Approx. 1200KG |
| Machine Dimension | Approx 1140*1500*1560mm |

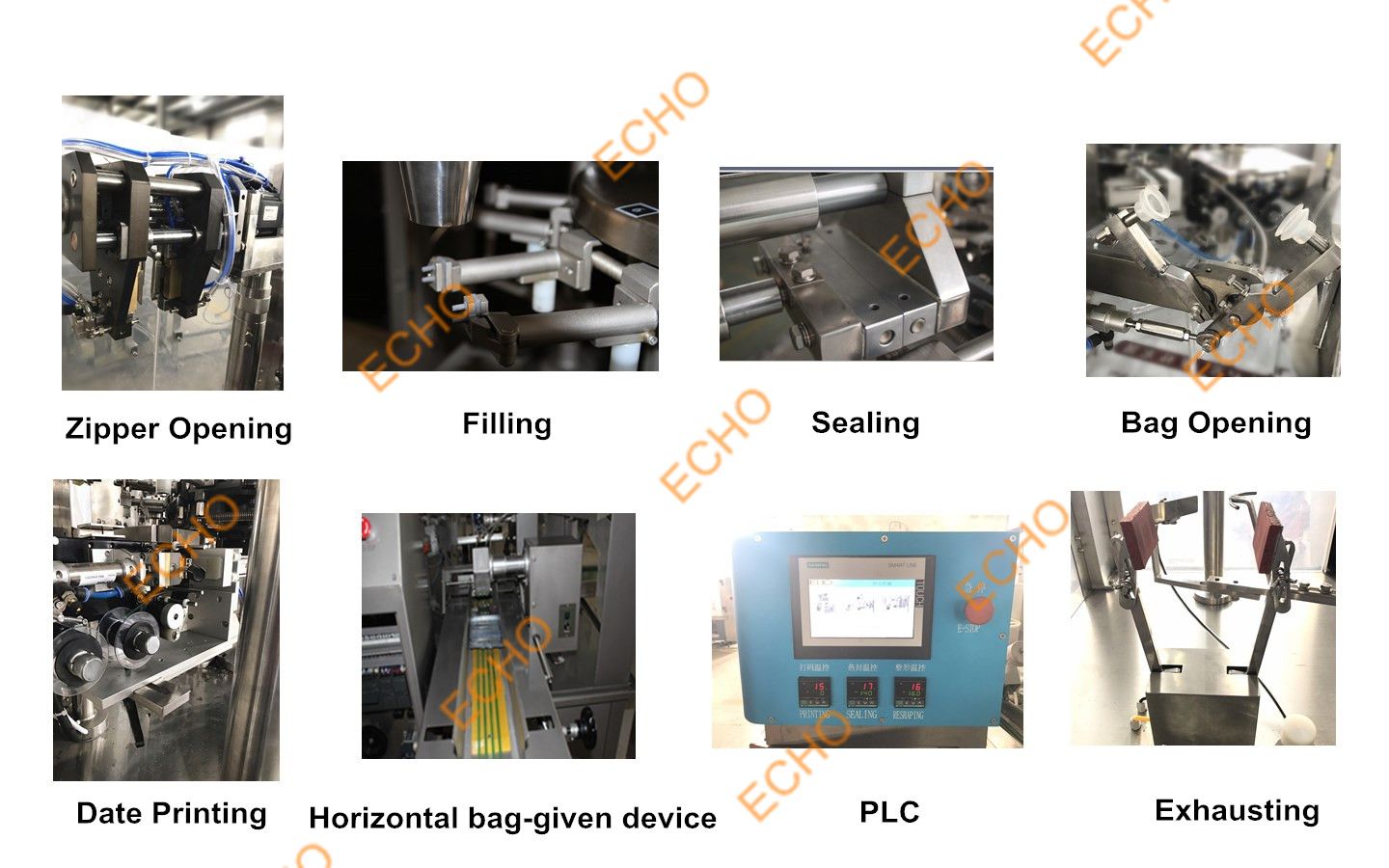

Machine details
FAQ:1.How many days can finish install all machine ?Generally need 1 week, finish all machine installing, adjustment and training worker. 2.Should we pay any cost for engineer?Yes, for engineer visa cost, accommodation, food, round airtickets, and subsidy(100USD/day) by buyers. 3.How about warranty?One year guarantee.Defective spare parts can be replaced for free charge by express within this period. 4.If over warranty how to do ? If over warranty, we also can do service for customer, send to spare parts by express or our engineer go to your side check and adjust machine. The buyer pay for all charge. 5.Do your engineers know English?Our engineers know English, and every engineer have five years experience of installing and adjusting machine.Our engineer have been to USA, South America,Europe, Africa etc. 6. How can we solve the problem when machine break down?Generally speaking ,there is no big problem after first machine installing.If machine has any small problem, you can tell us.Meanwhile we can teach you how to adjust machine by phone call, skype, e-mail or take a video to show operation process. 7.When engineer can arrive our factory? Generally after machine arrived,enginner reached within one week . If any question , pls feel free contact me.
Wenzhou ECHO machinery Co; Ltd establish in 2010, is located in the important birthplace of zhe nang mode-Ruian. The company is specialized in automatic given bag packing machine and vacuum packing machine. ECHO packing machinery is a National high and new technology company combined with research, manufacturing, marketing and service, and possess the largest research and development institutions in the domestic industry, perfect production system and huge marketing service network, annual output and market share all reside the ex-row in profession.
At present, the company marketing network through the country, and exported to Europe, America, Southeast Asia, West Asia, the Middle East and other dozens of countries and regions. Our various products are applied in food, medicine, commodities, chemical industry, pesticides and other industries.
The company take "superior quality, user first, excellent service, continuous improvement" as guidance. To making incessant innovations on behalf of their customer for the mission. And in the first place through the IS09001 quality management system certification and CE certification in the industries. In the future, ECHO will develop in depth in for ares: " Technology, institution, management and culture. " With outstanding product quality and good market reputation to meet customer' S inspection!
