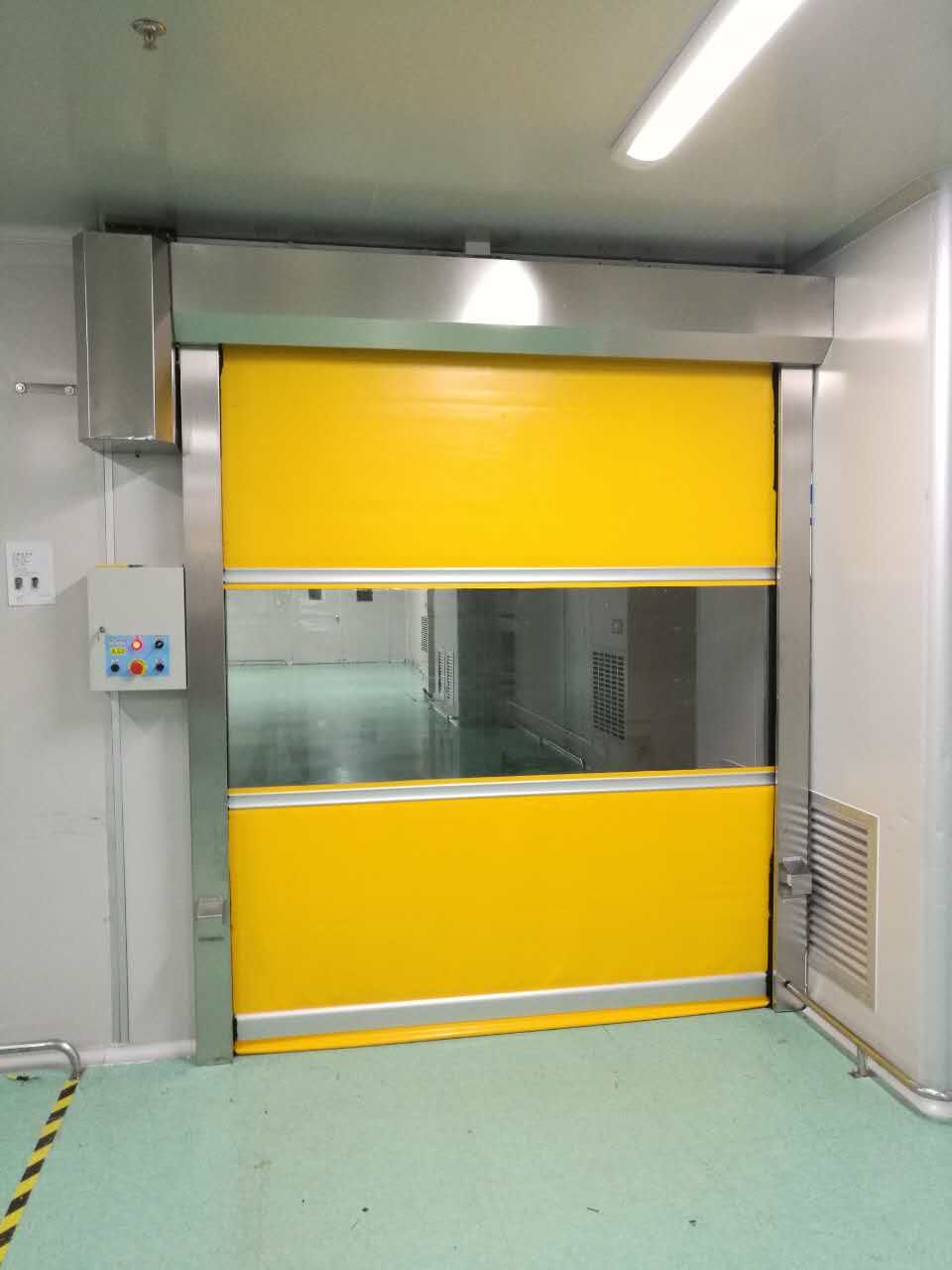

Automatic High Speed Roller Shutter Door
Product details
| Rapid PVC door | Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red
Color curtain:0.8mmthickness. Transparent curtain:1.2mm.
Function:insect prevention |
Reinforce girder | Aluminum alloy 45mm width.
Function:reinforce the curtain and wind resistant |
Bottom bar | Aluminum alloy 95mm width
Function:reinforce the crutain to keep the door opening without a hitch |
Radar sensor | The place on the cover box. Can detect 3 meters area!
Function: detect the moving thing and open the door.
For the place which has more people through. |
Photocell sensor | Function:It's stop the door when the door is closing and someone through the door. |
Drive system | High speed door motor: Germany brand(SEW)and Our own brand Hofic.
Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.) Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW) |
Control system | Control box:Include control system+PLC+transducer+encoder+airbag system.
Brand:Japan Mitsubishi and Our own Hofic
Function: all the control system are inside in it. |
Cover box |
Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof
|
Opening way: |
Radar sensor+push button for People through
Magnetic loop+push button for forklift through |
Opening way
Forklift cross --Magnetic loop with push button
People cross --Radar sensor with push button
Photocell sensor/Airbag to avoid hurt people when the door closing and someone cross.
Company Information
Hofic Intelligent Technology Co.,ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Material Selection :
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength 600/600N. Fire-proofing level: German standard DIN75200 Usage temperature: -30 C +70 C.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken, save your cost.
9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.
10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Controlling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP: With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 Fault recovery function: All Hofic's production is with fault recovery function, system will self-recovery after power cut off.
15. Delivery time: About 7 business days with contract and deposit confirmed.
16. Payment item: 50% before production, and the other 50% before shipment.
F A Q
1. What's the payment details?
Deposit before production, and balance before shipment.
2. What's the delivery time?
For common order, about 7 days only.
3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.When the product quality appear.
4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.
5. What's the MOQ?
We accept 1 set as sample order.
6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
