Beautiful Automatic 3D Wood Carving CNC Router with DSP Control System

Beautiful Automatic 3D Wood Carving CNC Router with DSP Control System
Price: US $ 7500-8000set
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: ELE 1325
Voltage: 220V, 1phase, 50Hz
Dimension(L*W*H): 3200*2140*1850mm
Control System: DSP A11 Control System
Spindle: Changsheng Water Cooling Spindle
Spindle Power: 5.5kw
Spindle Speed: 0-24000rpm/Min
Motor: 750W Panasonic Servo Motor
Driver: Panasonic Servo Driver
Inverter: 5.5kw Fuling Inverter
Table Surface: T-Slot and Vacuum Working Table
Spindle Layout: Spindle Over
Spindle Number: Single-Spindle
Feed Mode: Mechanical
Controlling Mode: CNC
Certification: SGS BV TUV

Product Description

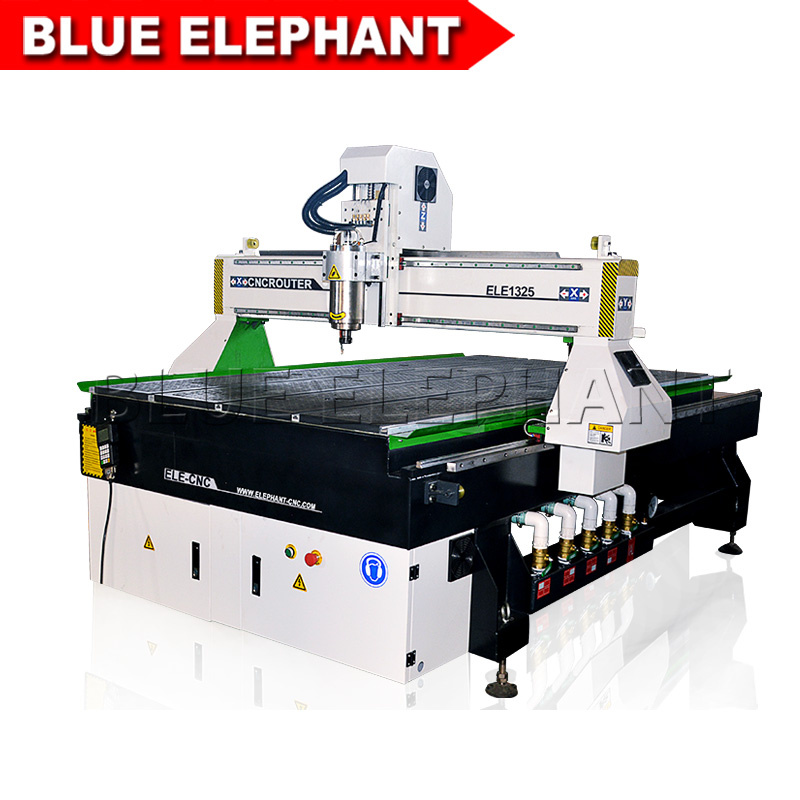

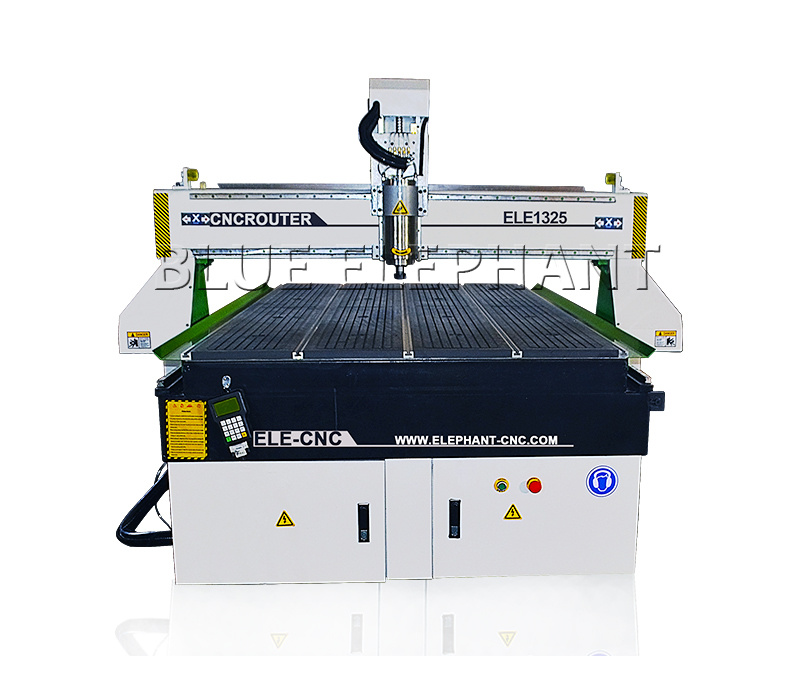

Beautiful Automatic 3D Wood Carving Cnc Router with DSP Control System

Advantages of 4*8 cnc router:

  • New type thicker and bigger heavy duty welded frame and gantry, long life time.
  • T-slot and vacuum working table with 4 zones, with very powerful absorbing power, can absorb materials of different sizes.
  • DSP A11 control system, easy to use, don't need connect with computer, support 3 axis works.

Features of 4*8 cnc router:

  • Working area: 1300*2500*200mm
  • Control system: DSP A11 control system
  • Spindle: 5.5kw Changsheng water cooling spindle
  • 750w Panasonic servo motor & driver
  • 5.5kw Fuling Inverter
  • T-slot and vacuum working table
  • Manual lubrication system
  • Simple tool sensor calibration
  • CW3000 Industrial Chiller
  • Taiwan HIWIN Linear Guide & bloks for XYZ axis
  • helical rack & gear transmission for XY axis
  • Taiwan TBI ball screw for Z axis
  • working voltage:220v 1ph 50hz

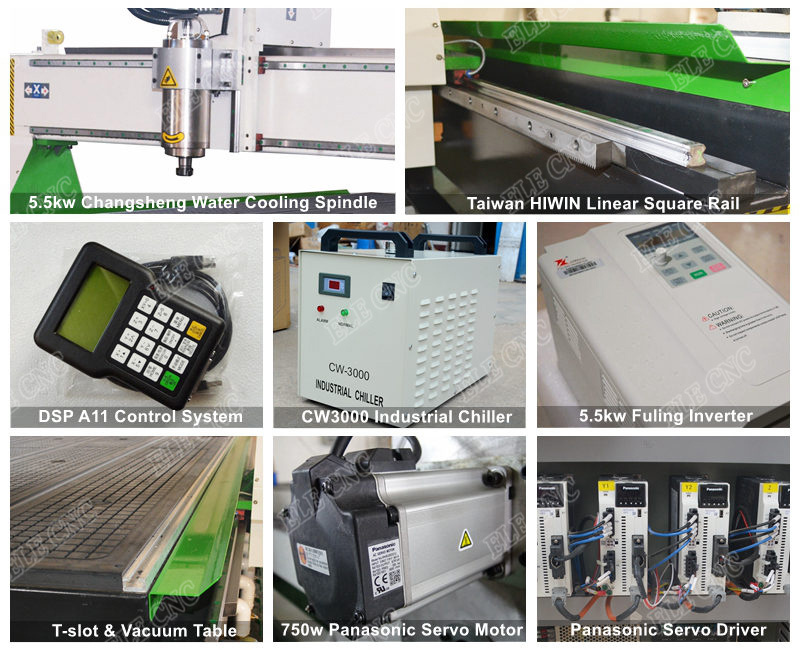

Product details of 4*8 cnc router:

  Parameters of 4*8 cnc router:

DescriptionsParameters
ModleELE1325
Working area1300*2500*200mm
Control systemDSP A11 control system
SpindleChangsheng 5.5kw water cooling spindle
Spindle speed0-24000RPM
Motor750w Panasonic servo motor
DriverPanasonic servo driver
Inverter5.5kw Fuling Inverter
Table surfaceT-slot and vacuum working table with 4 zones
StructureNew type thicker and bigger heavy duty welded frame and gantry
Voltage220v, 1ph, 50Hz (380v for optional)
Lubrication systemManual lubrication system (automatic for optional)
Transmission

X,Y rack and pinion drive; Z Taiwan TBI ball screw

Taiwan HIWIN linear square rail 20# for X,Y,Z axis

Traveling speed32m/min
Working speed20m/min
ColletER25
Tool sensor calibrationSimple tool sensor calibration
OptionalCW3000 Industrial Chiller

PS:All the working area and specifications can be customized according to your requests.

Applications:

  • Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
  • Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
  • Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
  • Relief sculpture and 3D engraving.

Samples:

Packaging & Delivery:

Packaging Details:  1.Outside package:Standard marine export plywood case.

                                  2.inner package:Stretch film and plastic film for humidity.

                                  We can package according to your requests.

Delivery Detail:  Shipped in 15 working days after payment.

Feedback:



Our Service:

1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.

2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.

3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.

4, We offer 24 hours technical support by call, and email.

5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.

6, We can record videos of operating the laser machine.

7, Free training course in our factory.

8.Machine will be adjusted before it is delivered, operation disk/CD was included.

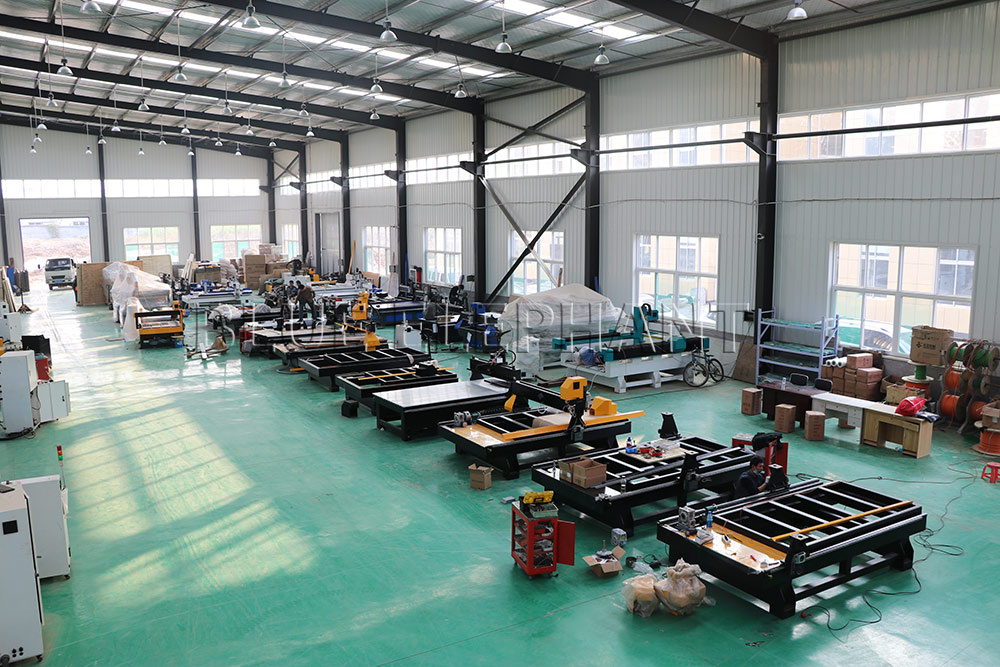

Welcome to our factory:

  • Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
  • Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
  • Just looking forward to service every customer, like you.

Contact us:



Mobile: 0086-15064026772

Web: www.elephant-cnc.com

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

We have always been devoting to the research and manufacture of CNC engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking, advertising, model, electric, CAD/CAM industry model, clothing, package printing, marking, laser sealing and so on.

We can offer you the high quality products with the competitive price. Our products have got CE certificate. Our main products are as follows: CNC router, laser engraving and cutting machine, laser cutting machine, marble CNC router, cutting plotter, plasma metal cutting machine, advertising CNC router and so on.

Business Type: Manufacturer, OEM, ODM

Main Products: Wood CNC router machine, laser engraving and cutting machine, stone CNC router, plasma cutting machine, laser machine

Location: Shandong, China (Mainland)

Year Established: 2013

Number of Employees: 11 - 50 People

Total Revenue: US$10 Million - US$50Million

Main Markets: Oceania, Western Europe, North America, Africa, Southeast Asia
