Best Quality Clock Marine Quartz Clocks

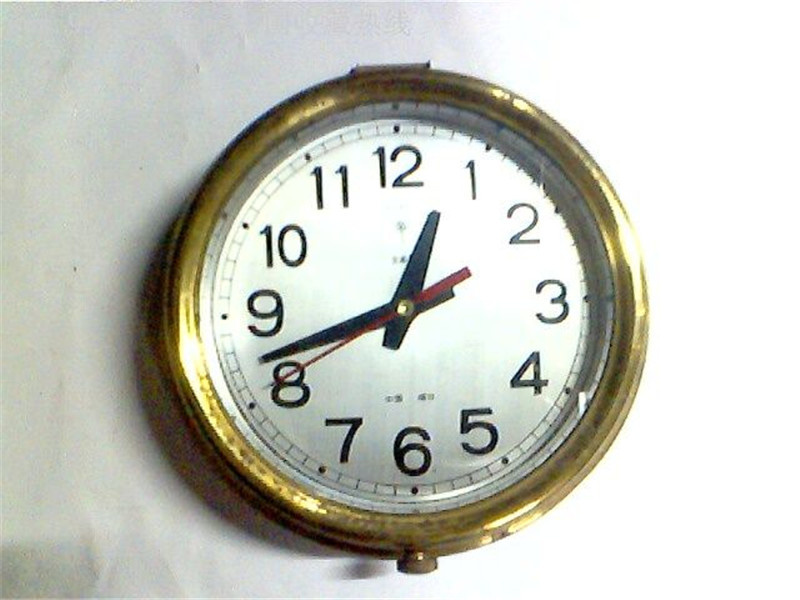

Marine Clock

 IMPA CODE: 370204

A quartz,battery operated clock, The case is backed with rubber to provide resistance to shock and dust.
Quartz clock is using the latest electronic technology and the traditional mechanical watch manufacturing technology combined with new products and core made of metal materials. The product with high frequency crystal by a CMOS integrated circuit to drive the stepper motor drives the pointer to indicate the time. It has accurate timing, reliable work, convenient use, less power consumption for ship with clocks and other timekeeping clock.


specification:


1, quartz resonator: 4.194304MHz

2, integrated circuit: pulse width 46.875ms, output frequency 0.5Hz.

3, a pair of eccentric type transducer: stepper motor, the output torque is greater than 8 * 10-3Nm. minute

4, travel time accuracy: +24 C + 3 C error is less than 10 seconds / month.

5, the use of temperature range: -10 to +50

6, a section of two battery for more than a year.

7, anti vibration, impact performance: (1) vibration: 2G, 80Hz; impact 5g, 30 minutes, can work properly.

8, antimagnetic performance: no less than 7 OE.

9, size: 208 x 62mm, weighing about 1.2kg, dial diameter 150mm.
