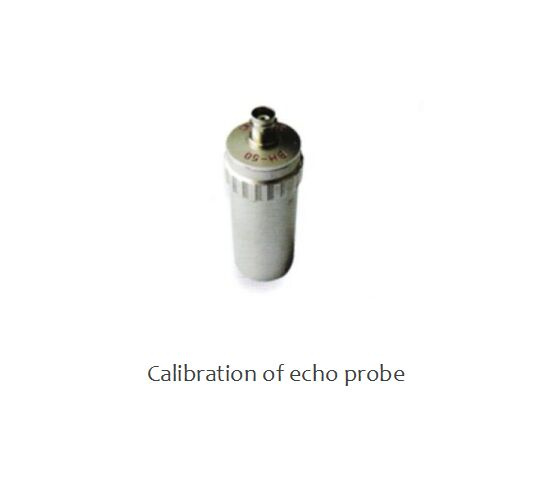

Calibration of Echo Probe, Custom Ultrasonic Transducer/Converter (GZHY-Probe-006)

Calibration of Echo Probe, Custom Ultrasonic Transducer/Converter (GZHY-Probe-006)


The transducer, also known as the converter, converts the electrical energy from the generator to the mechanical vibrations used for the welding process. It consists of a number of piezo-electric ceramic discs sandwiched between two metal blocks, usually titanium.
Between each of the discs there is a thin metal plate, which forms the electrode. As the sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing an axial, peak-to-peak movement of 15 to 20μm.
Transducers are delicate devices and should be handled with care. Once the elements are broken, the transducer will not function.

Benefits of Ultrasonic Welding

Very neat weld seams - due to no additional adhesives or parts needed the welding joins created with ultrasonic welding are extremely neat and visually attractive. This means the process can be used for joins that will be visible once final assembly has been completed.
High level of quality - as all of the welding part of the operation is automated each part produced will be of high quality. Human error plays a very small part in the operation and so accuracy and repeatability will also be high.
Low cycle times - the actual time it takes for a part to be welded is typically less than one second. This means that the loading and unloading of the machine will take up the majority of the cycle time, keeping cycle times to a minimum. This low cycle time means that large batches can be produced in a very short space of time.

Applications:
child toy`s, medical apparatus, household appliances, gift articles, packaging material, office organisation articles, bottle openers, tubes, ballpoint pens
Special Features:
The joining zones on top of each other of the plastic parts are vibrated by the effect of the ultrasonic sound, plastified by the generated adjacent surface friction and welded during the cooling time using the welding pressure.
Extremely short cycle times and thus very economic.
Low energy requirement.
