Product Specifications
| Prod Model: |
GS6040/9060/1280/1490/1612/1910 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Hermeic and Deached CO2 Laser Tube |
| Laser Power: |
60W-180W |
| Cutting Speed: |
0-36000mm/Min |
| Engraving Speed: |
0-64000mm/Min |
| Reseting Positioning Accuracy: |
< 0.01mm |
Product Description
Goldensign is the China leading complete maufacurer that produce laser
tube,laser power supply and laser machine .
Goldensign S-GS series co2 laser engraving ,Automatic focus laser machine (CE/FDA)
co2 laser engraver machine,laser engraver,engraver machine
Applicable Materials:ABS double color sheet, acrylic
CO2 laser engraving machine Feature Description
1. 64 DSP high speed processor: Adopts 64 DSP high speed control system, which highly improved the data processing speed and stability.
2. Support of USB and U disc: USB connect to the machine or U disc independently, which can use only one computer to control many laser machines.
3. Storage function: The main board has EMS Memory which enables the user to store more than 100 files.
4. Real time regulation: Users can regulate the laser power according to needs to improve the engraving effect.
5. Easy operation: Control panel and software system have both English and Chinese language so that satisfies the need of different custom.
6. Rotary clamps for engraving cylinders (optional): can engrave not only sheets, but also roll materials and cylinders such as pencil vase, flute, bottle and so on.
CO2 laser engraving machine Application of Industry
Advertising signs and logos, crafts and gifts, crystal ornaments, paper cutting techniques, relief, the printing plate, leather, clothing, embroidery, decoration, frame productions.
CO2 laser engraving machine Applicable Materials
ABS double color sheet, acrylic sheet, wood, glass, paper, leather, cloth, plastic, rubber, marble, ceramic tiles and other nonmetallic materials.
CO2 laser engraving machine Technical Parameters
Co2 laser engraving machine factory price .pls contact below .
Contact person : Shanghai Yuetai Machinery (Goldensign Group)
-The Most Stable Laser Machine In China!!
-The only manufacturer in China who not only produce laser machine but also produce laser tube!!
Factory add: No.9 ,jiangyin Road ,Heqing Town .Pudong .shanghai 201201 ,china
China Office add:Room 2212-2216, 22nd Floor, No.58, Jinxin Road, Pudong New District, Shanghai, 201206, China.
:American Office add:5581 Daniels St,Unit C,Chino,CA 91710
Website:www.gslaser.com
This is Sherry From Goldenisgn . welcome to ask all laser cutting machine questions !

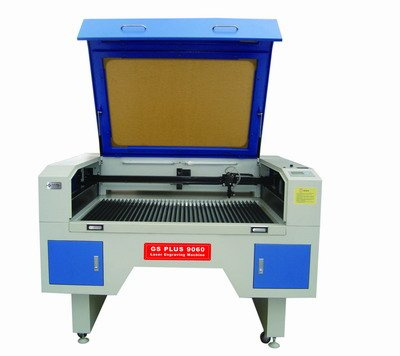

GS1612 laser machine
Model |
GS6040/9060/1280/1490/1612/1910 |
|
Laser type |
Hermetic and detached CO2 laser tube |
Laser power |
60W-180W |
Cutting speed |
0-36000mm/min |
Resetting positioning accuracy |
< 0.01mm |
Resolution radio |
0.025mm |
Highest Scanning Precision |
2500DPI |
Smallest character engraving |
Chinese 2.0mm×2.0mm,English 1.0mm×1.0mm
Character 2.0mm*2.0mm,English 1.0mm*1.0mm |
Graphic format |
Al, Plt, Cdr, Dxf, Dst, Nc, BMP, JPG, DST, PLT, DXF |
Power supply |
220V/50HZ |
whole power |
<1250W, <1550W
|
| Model | Dimension(mm) | Processing area( | Net Weight(KG) |
| GS6040 | 1130x860x1000 | 600x400 | 150 |
| GS9060 | 1430x1060x1000 | 900x600 | 220 |
| GS1280 | 1730x1380x1000 | 1200x800 | 294 |
| GS1490 | 1930x1480x1000 | 1400x900 | 325 |
| GS1612 | 2130x1780x1000 | 1600x1200 | 380 |
| GS1910 | 2430x1580x1100 | 1900x1000 | 480 |
Shanghai Yuetai Machinery Co., Ltd., is an experienced manufacturer&exporter in Signage equipment. We have rich experiences in R&D, manufacturing and marketing in this field. China's first a inkjet printing and laser equipment integrated manufacturers. More than 80% products are exported to more than 60% countries and regions around the world. For some machines, such as wide format digital inkjet printer, CNC router / engraving system, laser engraving machine, cutting plotter, cold laminator, hot stamping machine etc., we have more than seven years professional experiences.
In the past years, our products have won high reputation for their high quality in domestic market as well the overseas market. They have many excellent features: Easy to be handled, sensitive control system, stable&reliable quality, low electricity consumption, low noise, long life time, etc.
The mission of Goldensign is to specialize in digital sign equipment and realize two wins between Goldensign and clients, and provide the over-value products and service for our distributors.
We are working hard to pursue the higher and upper goals.
