| Price: | US $ 6050/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 1530 |
|---|---|
| Service: | Offering Oversea Service |
| Vo: | 220/380V |
| Voltage: | AC380V/50Hz |
| Rotary Axis: | Optional |
| Motor And Drive: | Stepper 3.5kw |
| Software: | Type 3 or Artcam |
| Controller System: | Weihong or DSP |
| Table: | Vacuumm or Aluminum |
| After-Sales Service: | Engineers Available to Service Machinery Overseas |
| Spindle: | Hqd Spindle |
| Function: | Lettering |
| Control: | CNC |
| Current: | AC |
| Application: | Stone Industry |
| Application Material: | Wood |
| Automation: | Automatic or Manual for Opitional |
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1500x3000x200mm |
2 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
3 | X,Y,Z Repositioning Accuracy | ±0.03mm |

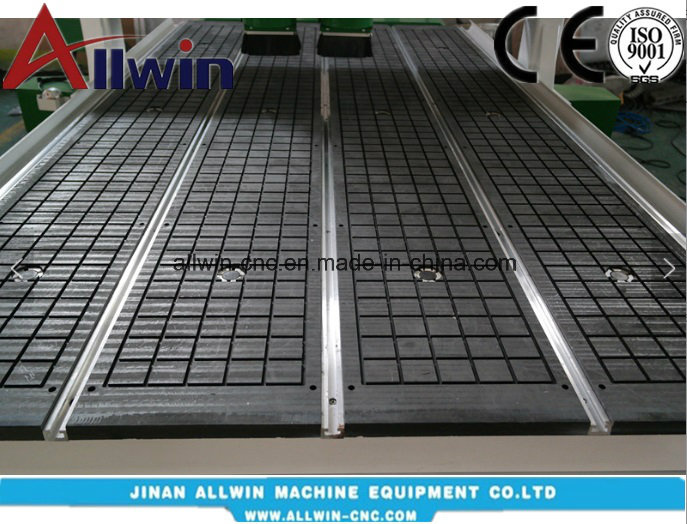

4 | Table Surface | Vacuum or T-slot Table |
5 | Frame | Welded Structure |
6 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Guide |
7 | Z Structure | Hiwin Rail Linear Guide and TBI Ball Screw |
8 | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
9 | Max. Rapid Travel Rate | 25000mm/min |
10 | Max. Working Speed | 18000mm/min |
11 | Spindle Power | 3KW water cooling spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Motors | Stepper Motor |
14 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
15 | Command Language | G Code |
16 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
17 | Computer Interface | USB |
18 | Flash Memory | 128M(U Disk) |
19 | Collet | ER25 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
24 | Inverter | Delta/Fuling |
25 | Electrical components | Schneider |
26 | Limit switch | OMRON |

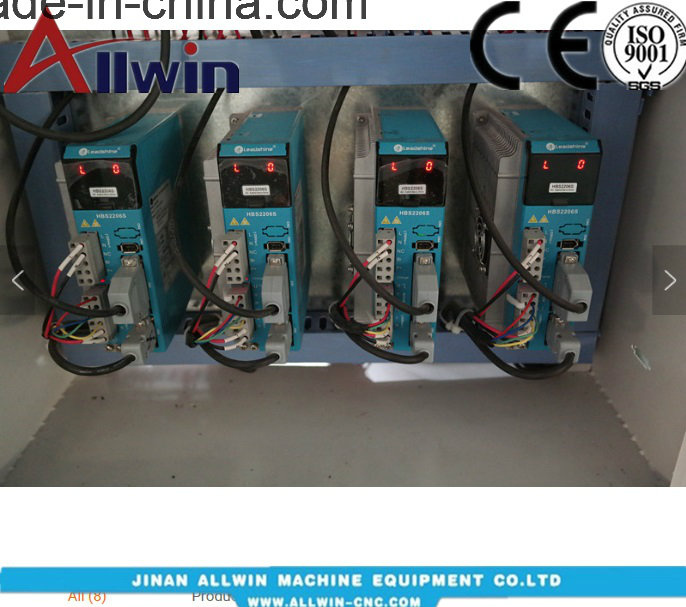

27 | Driver | Leadshine or Yako |
1. Free samples(I can help you process samples for free.)
2.Advertising/artwork/woodworking
3.CE, SGS,ISO
4.Customized:Yes
5.High sensitivity
6.High efficiency
7. Warranty: 1 year
8.Door-to-door technical service and 24 hours technology online support
Application Industry and Materials:
Advertising industury:Cnc router can engrave all kinds of signage,logo products,trademarks,nameplates,badges,decorative gift,embossed
medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards
(drilling and engraving),Double color boards,acrylic etc.
Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,
MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside
cabinets,folding screen etc.
Artwork industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
Packing & shipment :
Save space as much as possible for container loading.
