CNC Router Machine for Aluminum 1530 Sculpture Wood Carving CNC Router Machine
| Price: |
US $ 18000-21000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

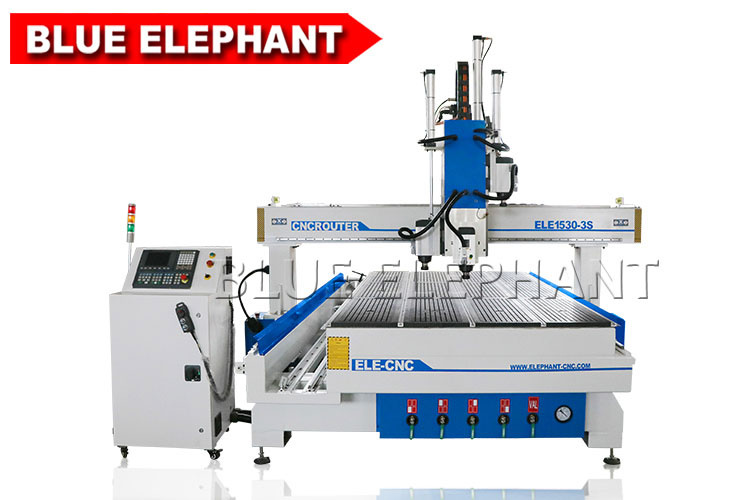

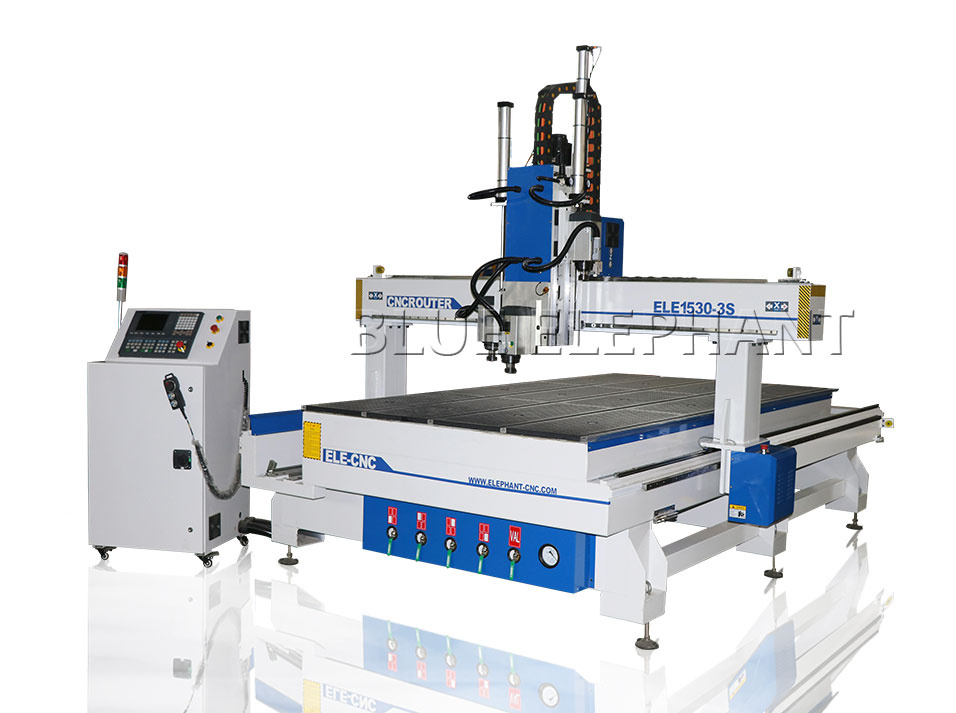

Cnc Router Machine for Aluminum 1530 Sculpture Wood Carving Cnc Router Machine
Introduction of cnc multi head router:
New type thicker and heavy duty frame and gantry,high precision,more stable
Three heads,do different works one by one,like simple ATC cnc machine
With 200mm rotary for cylinder processing,It's very popular in wood industry
Features of cnc multi head router:
- 1500*3000*200mm effective working area
- Original Italy HSD 4.5KW ATC air cooling spindle
- Taiwan 5.5kw DELTA inverter
- Japan YASKAWA 850W servo motor and drivers
- Taiwan SYNTEC control system 6MB model
- Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel, All axis with Taiwan HIWIN #20 Linear guide
- French Schneider safety switch;
- Vacuum and T-slot working table
- Japan OMRON limit switch for X, Y, Z axis
- Highly flexible towline, fire-resistant double-sheathed Shanghai Gardiff cable
- Type 3 or Artcam or Ucancam software for free;
- 200mm Rotary

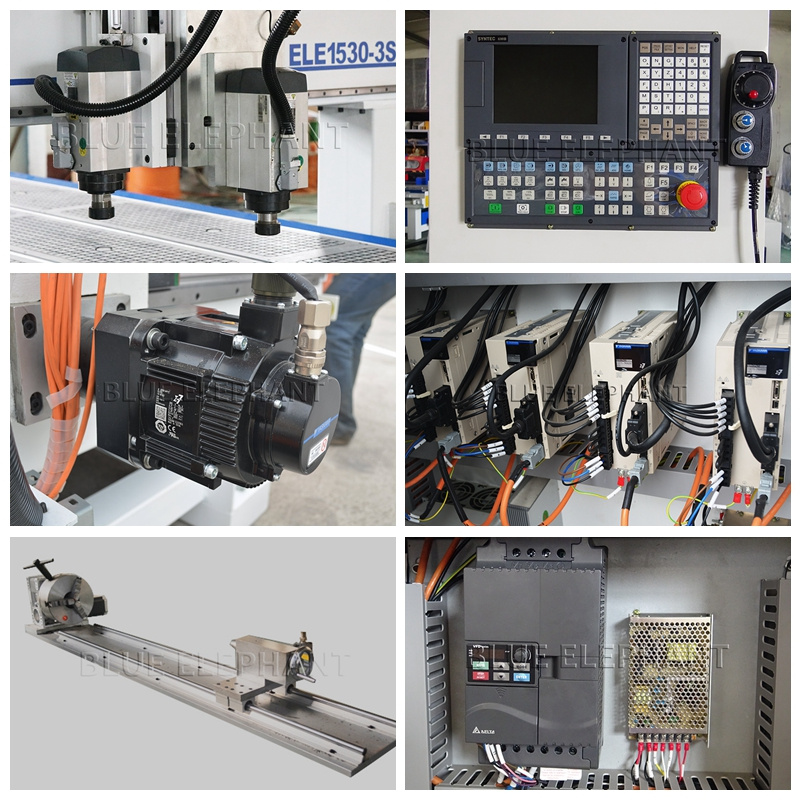

Product Details of cnc multi head router:
Parameters of cnc multi head router:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x3000mm |
Table Surface | T-slot & vacumm working Table |
Frame | Welded Structure |
X, Y Structure | #20 Tiwan HINWIN linear guide rail,helical rack gear |
Z Structure | #20 Tiwan HINWIN linear guide rail,Taiwan TBI Ball Screw |
Max. Power Consumption | (Without Spindle)6Kw |
Spindle Power | 4.5 KW Italy HSD air cooling spindle for all heads |
Spindle Speed | 0-18000RPM |
Drive Motors | 850w Japan YASKAWA servo motor and driver |
Working Voltage | AC220V/50/60Hz,3PH (Option: 380V) |
Command Language | G Code |
Operating System | SYNTEC 6MB control system |
Collet | ER32 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software |
Running Environment Temperature | 0 - 45 Centigrade |
PS:All the working area and specifications can be customized according to your requests.
Application:
- WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, MDF, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
- Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,
- crystal word making, blaster molding, and other advertising materials derivatives making.
- The machine is specially designed for woodworking industrial, with multiple spindles auto-changing.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

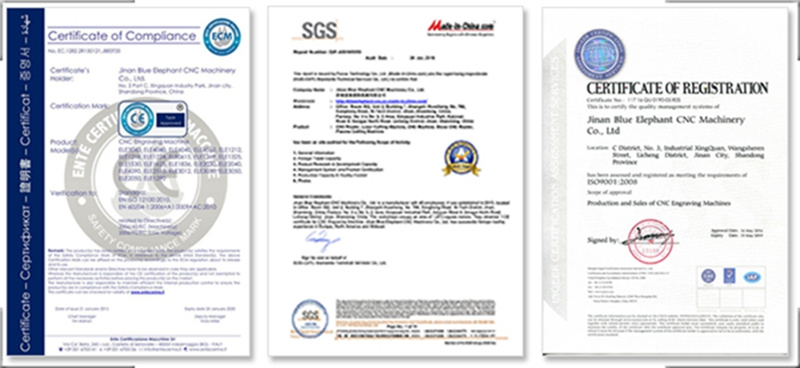

Certificates:

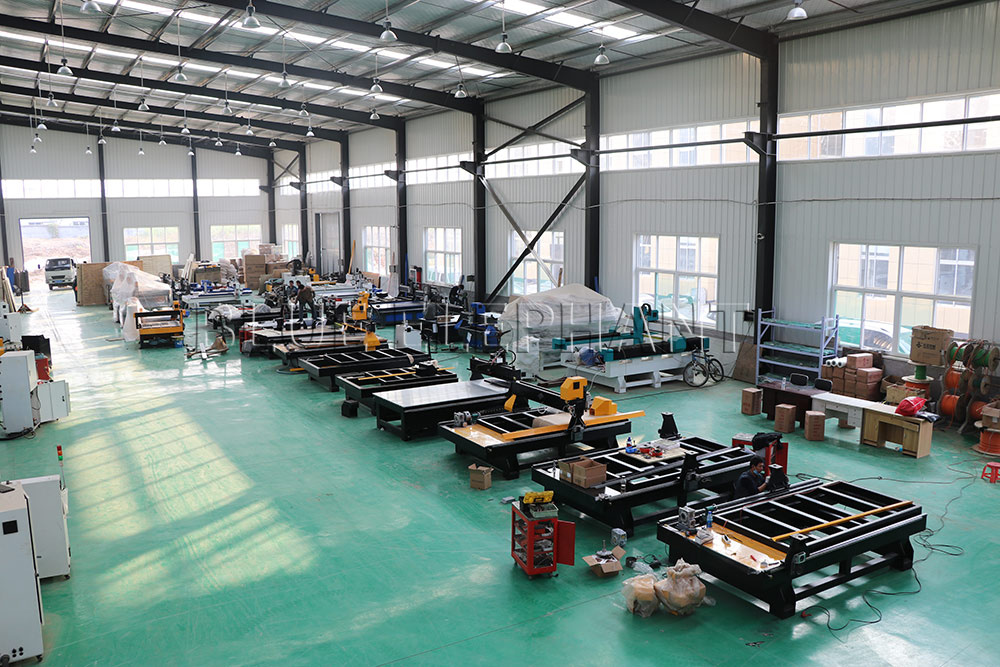

Welcome to our factory:
- Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
- We have our R & D department, Quality control department, and after sale & service department.
- Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
- We had got CE and ISO9001 certification always offer best quality machine.
- Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
- Just looking forward to service every customer, like you.
Contact us:
Mobile: 0086-15064026772
Web: www.elephant-cnc.com
| Prod Model: |
ELE1530 |
| Voltage: |
380V, 3pH, 50Hz |
| Dimension(L*W*H): |
3050*1940*2200mm |
| Control System: |
Syntec 6MB Control System |
| Spindle: |
4.5kw Hsd Air Cooling Spindle * 3 Sets |
| Inverter: |
5.5kw E Type Taiwan Delta Inverter |
| Motor And Driver: |
850W Japan Yaskawa Servo Motor and Driver |
| Linear Rail: |
Taiwan PMI 25# Linear Guide |
| Table Structure: |
New Type Thicker and Bigger Heavy Duty Welded Fram |
| Rotary Device: |
Diameters: 200mm |
| Table Surface: |
T-Slot and Vacuum Working Table |
| Spindle Layout: |
Spindle Over |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
FDA |
| Spindle Number: |
Three Spindles |
