Price: | US $ 1-3500/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union |

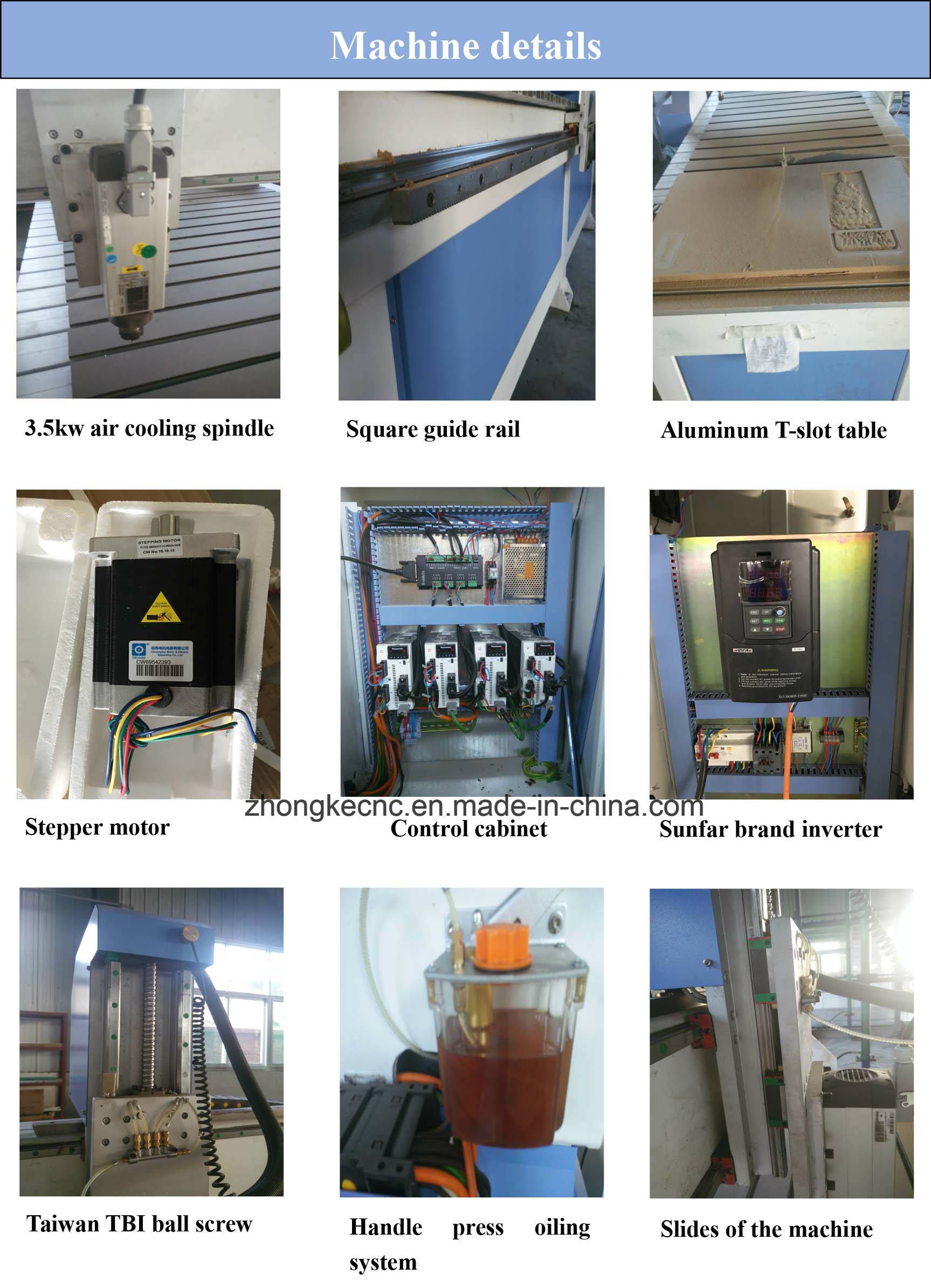

1. T-slot table can fix materials of different sizes effectively
2. Taiwan TBI balls screws, HIWIN square guide rails, high precision, large load
bearing and stable running.
3.Gantry-travelling, sturdy, reliable and stable, non-deforming, high locating accuracy.
4.Y axis use servo/stepper motor drive, select matching to ensure smooth movement.
5.Large compatibility of drawing software, such as Type3, artcam and some other CAD or CAM.
Applied area:
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen,
craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting,
crystal word making,blaster molding, and other advertising materials derivatives making.
3.Relief Sculpture and 3D Engraving & Cylindrical object.

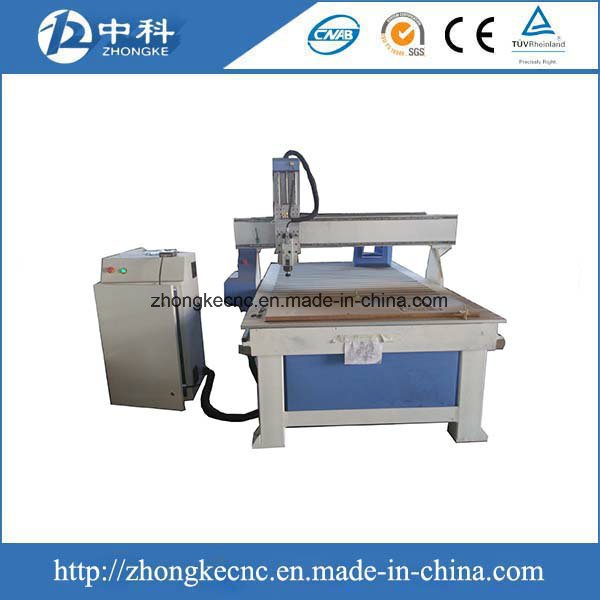

Prod Model: | 1325 |
---|---|
Rail: | Hiwin Square Guide Rail |
Inverter: | Sunfar Inverter |
Transmission: | Helical Rack |
Lubricating: | Handle Press Oiling System |
Motor: | Stepper Motor |
Table: | Aluminum T-Slot |
Control System: | Ncstudio |
Spindle: | Water Cooling Spindle |
Application: | Wood Working |
Spindle Power: | 3.2/4.5/6kw |
Spindle Layout: | Vertical |
Spindle Number: | Single-Spindle |
Feed Mode: | Manual |
Controlling Mode: | CNC |
Certification: | ISO |
