CNC Router Metal Cutting Carving Engraving Machine

Product Specifications

Prod Model:	DW9015
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Table:	T-Slot Use Material Hold to Fix Raw Material
Spindle Power:	6.0kw
OEM:	Accepted
Customization:	Accepted
Machine Structure:	Aluminium Alloy and Cast Steel
Carving Material:	Stainless Steel

Product Description

This is the CNC Router Metal Cutting Carving Engraving Machine of our company, this machine with water tank equipped, can be used for cutting stainless steel, aluminum or other metal, and also acrylic wood, etc, This cnc router use high power (6.0kw) water cooling spindle, can also be used for engraving flat stone, with good design and good qulaity machine, it can help you do  a  lot of work.

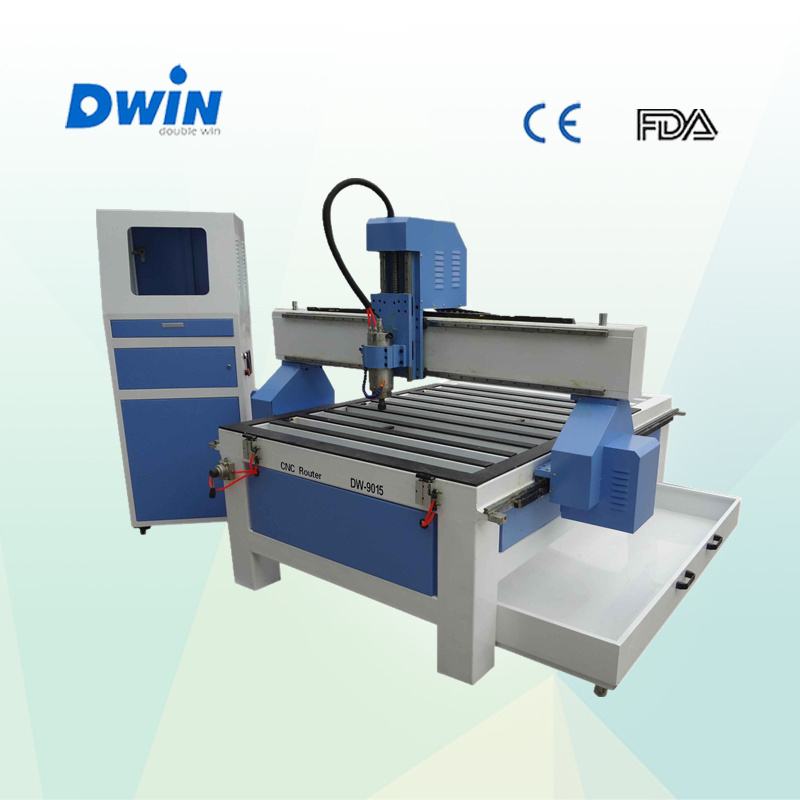

CNC Router Metal Cutting Carving Engraving Machine

Specifications of  cnc metal router:

Number	Description	Parameter
1	X,Y,Z Working Area	900x1500x200mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum&T-slot Table
6	Frame	Welded Structure,heavy duty T-structure
7	X, Y Structure	Helical Rack gear,  Taiwan Hiwin/PMI Rail Linear Bearings
8	Z Structure	Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
9	Max. Power Consumption	2.0KW
10	Max. Rapid Travel Rate	45000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	3KW HSD air cooling spindle(optional)
13	Spindle Speed	0-24000RPM
14	Drive Motors	Delta servo motor (optional)
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
16	Command Language	G Code
17	Operating System	DSP  (Options: Ncstudio /Mach3 Software)
18	Computer Interface	USB
19	Flash Memory	128M(U Disk)
20	Collet	ER25
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3 Software, (Option: Artcam Software)
23	Running Environment  Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%


Features of  metal cnc router:

1. DW-9015 is an economic processing center, with a row of knife. It is equipped with leading
international components.

2. The work table is international leading vacuum adsorption. It is made from bakelite with
high-strength, vacuum adsorption. It can adsorb different size materials.

3. Optional wheels help move the machine,more convenient.  Optional air gun help clean the
worktable.

4. With DSP control system, It can support offline operation.

5. HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetime
is 10 times longer than common rail way.

6.Standard configured with Italy HSD air cooling spindle, high power and efficient. Very famous brand,
has after-sale service all over the world. Matched with Taiwan DELTA inverter.

7.Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longer
lifetime,and it makes the machine more stable.

8.Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful. For option,we
can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.


Applications of metal cnc router:

1) Metal processing industry: Stainless steel, aluminum, carbon steel, iron, titanium, etc, all this materials engraving, thin material cutting, debossing, etc.

2)WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,
composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

3)Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,
 blaster molding, and other advertising materials derivatives making.

4)Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

5) Relief Sculpture and 3D Engraving

6)Cylindrical object

7) Thin stone engraving, becacuse this machine has water tank attached, so it enables to engrave stone materials like, granite, marble, jade, etc.

8) Other related industry.


Our service:

1.Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for main parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.
