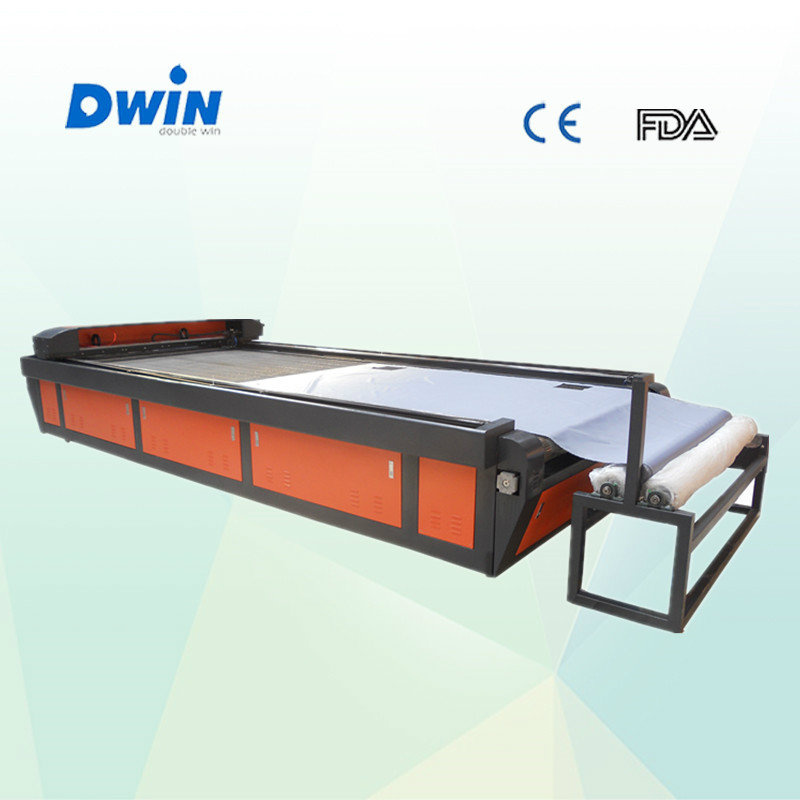

CNC1640 Automatic Roll Fabric Laser Cutting Machine

                      cnc1640 automatic roll fabric laser cutting machine

This machine is dwin's auto feeding laser cutting machine, which is widely used in textile industry and other realted lines, this machine can feed roller material automatiocally, this saves a lot of time and energy for you. And because this machine is laser cutting machine, it automatically has burnt sealing edge, avoid thread loosing of the raw materials.


Machine Features :

1. Front and rear hole to pass long materials
2. Modern design and beautiful appearance
3. Use imported Taiwan Hiwin linear guide, more durable and high precision
4. Water protection switch ,safety switch and limit switch
5. Adopt DSP control system, and USB offline operation, LCD screen

Application Industry

Engraving and cutting of fabric and leather in garment, embroidery, toy, handbag, glove precision cutting of decoration board and non-mental board, like acrylic and MDF board in ads, upholstery, electrical appliance and plastic industry, cardboard box industry, rubber printing plate engraving. Ultra-thick material surface carving.

Application  Materials :

Wood, paper, leather, cloth, organicglass, resin, acrylic, wollens, plastic, rubber, ceramic, crystal bowlder, bamboo and other non-metal materials.

Parameter

Model	DW1626	DW1640
cutting area	1600x2600mm	1600x4000mm
Laser power	80W/100W/130W
Laser type	CO2 Laser tube
Engraving speed	0-60000mm/min
cutting speed	0-24000mm/min
Resetting positioning accuracy	0.01mm
Power supply	220V/50HZ 110V/60HZ
Operating temperature	0 - 45 °C
Operating humidity	5-95%
Min. shaping character	English 1.0x 1.0mm
Graphic format supported	PLT,AI,DXF,BMP,DST
Software supported	CorelDraw, PhotoShop, AutoCAD, TiandaoTajima
Driving system	Stepper motors
Cooling mode	Water-cooling and protection system
Recommended Spare Parts	Laser Tube and Lens

Our service
Professional Service
From producing in our factory to shipping the goods directly to your port or company, we supply all-inone service for our customers.
With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time.
No matter your quantity is our MOQ or very big, we take each customer as the only one.

Warranty for the machine
1. Two years quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 12 hours online service each day, free technical support.

FAQ
1. How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

2, How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

4, How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.
