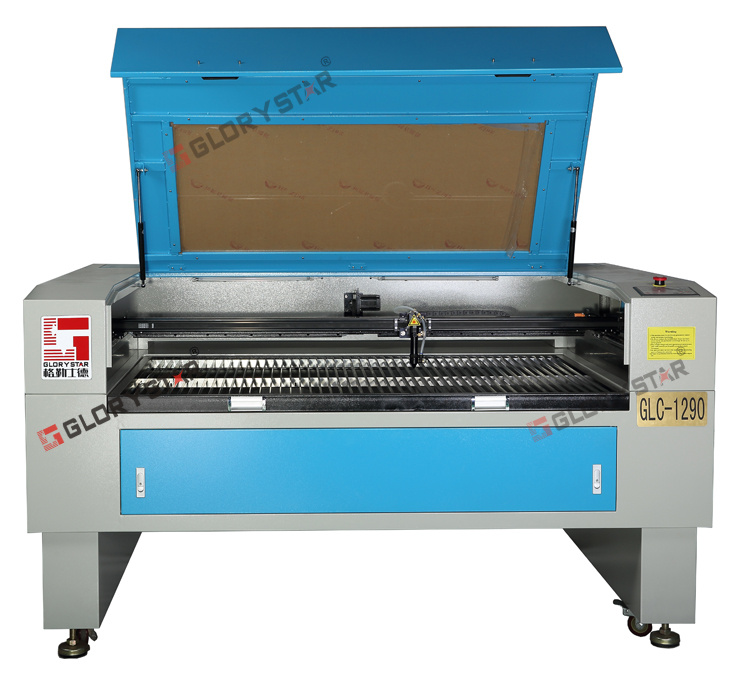

CO2 130W Laser Cutting Machine and Engraving Machine
| Price: |
US $ 2900-10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Features:
CO2 Laser cutting engraving machines series are very popular in the market around the world. They have high speed, high cutting accuracy and high stability. The quality and price ratio is very high.
This series laser cutting machines imported originally division stepping motor and driver from USA. Original straight-line-guiding-track from Japan. High speed USB 2.0port, LCD and silicon panel, water-cooling system, domestic-made glass CO2 laser tube, sealed laser beam by use of the imported Lens and mirrors, ensure high cutting speed and long life time of laser tube.
1.The original-exported straight-linear-guide rail is adopted and the laser tube with high quality is equipped as well.
This series of laser machines use the best quality parts and accessories to ensure the top stable performance at the top high velocity.
2.Optical Design :
The optimized optical hardware design facilitates the laser beam control conveniently and stably.
3.Mechanical Design :
The machine adopts high precise linear guide rail. It runs with much higher rated load than normal guide rail in straight reciprocating motion.Also it performs high precise line ar motion under the overloads.
Applications:
Engraving&cutting of farbric and leather in garment, embroidery, toy, handbag, glove precisioncuting of decoration board and non-metal board, like Acrilic and medium-density board in ads, upholstery, electrical appliance and plastic industry, Cardboard box industry, rubber pritting plate engraving. Ultra-thick material surface carving.
Applicable Materials:
Wood, paper, leather, cloth, organicglass, resin, acrylic, wollens, plastic, rubber, ceramic tile, crystal, bowlder, bamboo and other non-metal materials.
Technical parameters:
| Technical Data | GLC-1290 |
| Laser power | 130W (option) |
| Carving Area | 1200*900 (mm) |
| Carving speed | 0 - 1500 mm / s |
| Cutting speed | 0 -800 mm / s |
| Repetition Accuracy | ±0.05mm |
| Operating system | CNC control system |
| Cooling Method | Water cooling with protection system |
| Power Consumption | ≤1250W |
| Working Voltage | 220V ±10% 50Hz(60Hz) |
| Working Temperature | 0ºC - 45ºC |
| Working Humidity | 5% - 95% |
| Control Software | Glorylaser Software |
| Cutting Graph | CAD,BMP,JPG,PNG,TIF,PCX,TAG,LOO,GIF,PLT,DST |
| Unit weight | 300KG |
| Laser type | Sealed Glass CO2 Laser Tube |
| Laser power | 60W / 70W / 80W / 100W / 130W / 150W |
| Engraving area | 1800mm*1000mm |
| Engraving speed | 0-64m/min |
| Cutting spees | 0-36m/min |
| Repeating lacating | ± 0.05mm |
| Moving system | CNC control system |
| Cooling mode | Water-cooling and protection system |
| Whole power | ≤ 1250w |
| Working voltage | 220V± 10% 50Hz(60Hz) |
| Operating temperature | 0~45º C |
| Prerating humidity | 5%-95% |
| Controlling sofeware | Glory star laser software |
| Graphic format supported | CAD BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Gross weight | 720KG |
If you would like to have your samples processed in Glorystar laser Company, we would be pleased to do for you.
If you have questions on applications or problems, please contact us, we would be pleased to help you.
| Prod Model: |
GLC-1290 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Glc-1290 |
| Laser Type: |
CO2 Laser |
| Laser Power: |
130W |
| Working Area: |
1200mm*900mm |
| Moving System: |
CNC Control System |
| Cooling Mode: |
Water Cooling |
Dongguan GloryStar Laser Technology Co. Ltd is a Sino-German cooperation laser machine manufacturer in China, which integrates mechanical, optical, electronic technology together. GloryStar laser Tech is one famous brand in China as well as the world. We have exported our machines to over 100 countries and supply the professional laser application for our customers. More than 10K sets laser machines are working in the market by now.
We specialize in export and service of various types of laser machinery, such as:
1. Diode Pump (Side) series laser marking machines. (Apply for electronic component, hardware, tooling, telecommunication, clocks and watches, plastic and glass parts, automobile, medical equipment, jewelry, architecture construction, packing fields. )
2. End Pump laser marking machines. (Apply for plastic products, digital products, precise machinery, jewelry, sanitary appliance, measuring and cutting tooling, clocks and watches, electronic components and applicants, hardware accessories and tools, telecommunication, automobile parts, architecture construction, packing fields, etc. )
3. Fiber laser marking machines. (Widely used in electronic components, medical equipments industries, watches and glasses, IC card industry, plastic tooling industry, mobile phone and PC keyboard, kitchen and bathroom appliance, etc. )
4. CO2 Series laser marking machines. (Widely used in various consumer products, food and beverage packing garment accessories, cloths and crafts, leather and rubber, nameplates, construction and ceramic, jeans, etc. )
5.3D Dynamic Focus Large-Scale laser marking machines. (Apply to art crafts, bamboo and wooden products, advertising decoration, clothing and leather, jewelry and architecture model, etc. )
6. On-Line laser marking machines. (Widely used in medical, chemical, electronic, tobacco, wine, food and beverage industries)
7. Laser cutting/engraving machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
8. Two Head laser cutting machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
9. Video Camera laser cutting machines. (Widely used in woven labels, logos and trademarks, various embroidery badges and crafts, etc. )
10. Shoes Industry Double heads laser cutting/engraving machines. (Widely used in vamp and outsole of shoe manufacturing process, also apply to the leather bag manufacturing industries. )
11. Specially applied for acrylic or MDF cutting machines. (Widely used in Acrylic and MDF board processing)
12. Movable and Exchanging Table laser cutting machines. (Apply for costume, shoes, cases and bags, computer embroidery, model making, electronic components and appliances, toys, furniture decoration, advertisements, arts and crafts, packing and printing, etc. )
13. Rotary Lifted Flat laser cutting machines. (Widely used in leather, cloth, organic glass, acrylic, rubber, plastic, wood, bamboo, ceramic industries. )
14. Auto Feeding and Unloading laser cutting machines. (Apply for garment, toy and handbag industries. )
15. Sheet metal fiber laser cutting machine. ( widely used for cutting steel, Iron, Stainless steel, Aluminum, Copper and other metal materials)
Glory Star can also manufacture the product designed by the customer' S requirement (OEM). We can arrange and negotiate everything for you: Price, transport, import duties, insurance, and taxes. All you have to do is tell us what you want.
Our Motto: Offer good quality, fair price and excellent service
We sincerely welcome our friends from all over the world.
