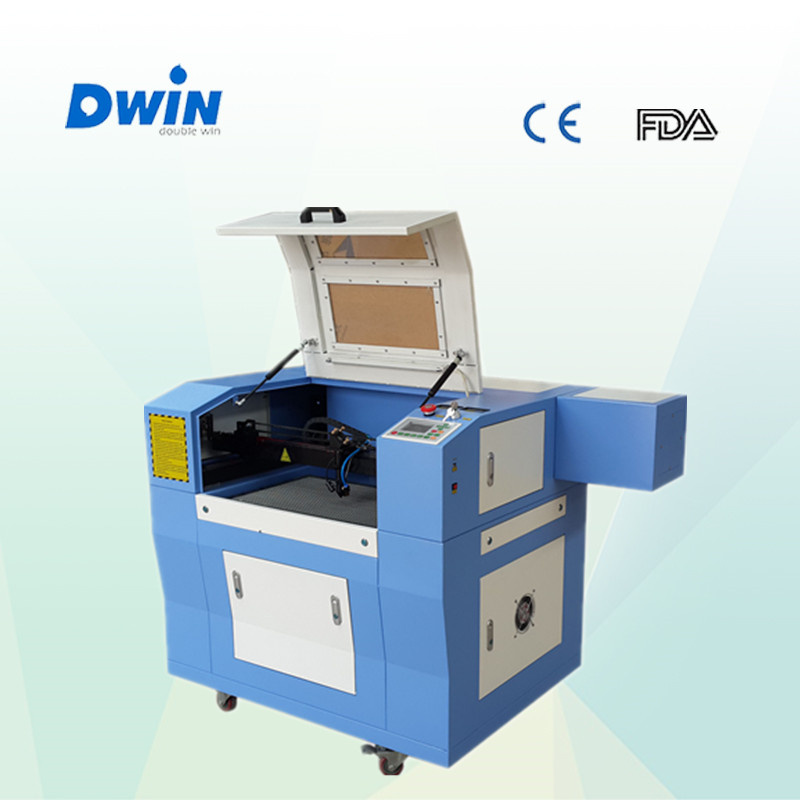

CO2 Laser Cutting and Engraving Machine 600*400mm



                   CO2 Laser Cutting and Engraving Machine 600*400mm

Product Features:
CO2 Laser cutting/engraving machines series are very popular in the market around the world. They has the high speed, high cutting accuracy and high stability. The quality and price ratio is very high. This series laser cutting/engraving machines imported origionaly division stepping motor and driver from USA. Origional straight-line-guiding-track from Japan. High speed USB 2.0 port, LCD and silicon panel, water-cooling system, domestic-made glass CO2 laser tube, sealed laser beam by use of the imported Lens and mirros, ensure high cutting speed and long life time of laser tube.

Applications:
Engraving/cutting of fabric and leather garment, embroidery, toy, handbag, glove precisioncutting of decoration board and non-metal board, like Acrylic and medium-density board in ads, upholstery, electrical appliance and plastic industry, Cardboard Box industry, rubber printing plate engraving. Ultra-thick material surface carving.

Materials:
Wood, paper, leather, choth, organicglass, resin, acrylic, wollens, plastic, rubber, ceramic tille. Crystal bowlder bamoo and other non-metal material.


 Tehnical Table:

Parameter	Model	DW-6040	DW-9060	DW-1080	DW-1290	DW-1490	GLC-1610
	Working area(mm)	600*400	900*600	1000*800	1200*900	1400*900	1600*1000
	Laser power	60W/80W/100W/130W/150W
	Laser type	CO2 glass tube
	Control system	DSP
	Drive mode	Stepping Motor Microstep drive
	Cooling mode	Water-cooling and protection system
	Working speed	0-1000(mm/s)
	Graphics mode	Plt, Dxf, Bmp, Pcx, Dst, etc
	Platform types	Honeycomb table, blade strip table (Optional)
	Repeatability precision	≤ 0.02mm
	Working voltage	AC 220± 10%/50-60Hz
	Overall power consumption	≤ 1250w
	N. W.	200KG	220KG	340KG	400KG	500KG	530KG
	G. W.	290KG	320KG	440KG	520KG	600KG	660KG
	Package Dimension(mm)	1630*960*1270	1850*1250*1270	1700*1500*1270	1900*1600*1270	2100*1600*1270	2240*1660*1270
Body configurations	Optical design	Adopting the imported lens and mirros to ensure long lifetime of laser tube and high cutting efficiency
	Mechanical design	1. The patented body adopts the most solid design which can ensure no deformation long time operation and transportation.
		2. Adopts imported stepping motor and driver with its unique high speed outer guide rail.
	Software design	1. Adopts International advanced DSP control technology, ensure high cutting engraving speed, high accuracy and high stability.
		2. The machine system can be commanded by U disk without PC connection.
		3. Can be directly support Autocad, Coreldraw software or their output, the documents like PLT, PCX, DXF, BMP etc.,
Working Environment	Operating Humidity	5%-95%
	Operating Temperature	0-45º C
Applications	Applicable industry	Applicable for the garment, toy, handbag, glove industries, also inclusive of precise cutting and engraving like acrylic and MDF board, mold, advertisements, decoration, electrical appliance and plastic industries.
	Materials	Wood, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, bamboo, and other non metal materials



Samples:


>>> Package
Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.

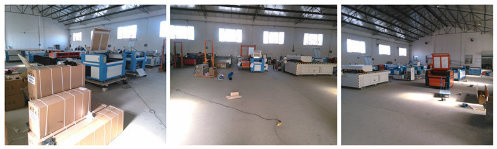

>>> Our Factory
Our company located in Jinan,china's laser capital, which have a very long history of laser equipment manufacturing.

The products cover laser cutting machine, laser engraving machine, laser marking machine and laser welding machine.

The main products of the company are CO2 laser cutting machine and the high-tech fiber laser cutting machine for print&packing industry.

Our company have very strong R&D group which  develops new features for the products very year.

Every new generation machine will performance much more better than the old types and more energy saving and environment protecting.

Every machine is well tested before shipping and all the products have obtained CE and FDA for the high-end users.



>>> Our Customer and After Sales Service
1. Our machine is guaranteed for one year, not including normal replacement of wearing parts.
2. 24 hour technical support by email or calling +86-15098894955.
3. User-friendly English manual and Video CD for machine using and maintaining.
4. Our self-developed English software can do all kinds of pattern recognition.



Any more product information, please contact us !
