| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | HSCO2-30W |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: | CNC Engraving Machine |
| Control: | CNC |
| Current: | AC |
| Laser Type: | CO2 |
| Usage: | Plastic |
| Cooling Way: | Air Cooling |
CO2 Nonmetal Laser Marking Machine for Plastic.CO2 laser marking machine is a laser beam in a variety of different substances on the surface marked with a
permanent mark. The effect of marking is through the evaporation of surface substances exposed deep
material, which engraved exquisite patterns, trademarks, dates, LOGO or text, the current CO2 laser marking
machine is mainly used in some requirements more sophisticated, more accurate occasions. It is used in food,
medicine, wine, electronic components, integrated circuit (IC), electrical appliances, mobile communication,
building materials, PVC pipe and other industries, CO2 laser marking machine and inkjet printer than the
main advantage is no supplies and permanent.

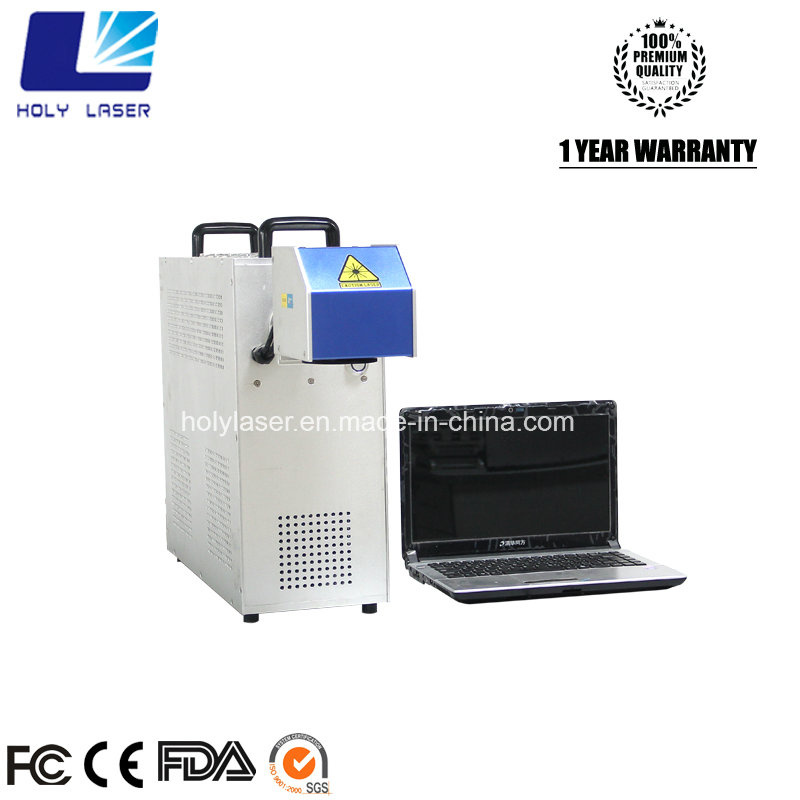

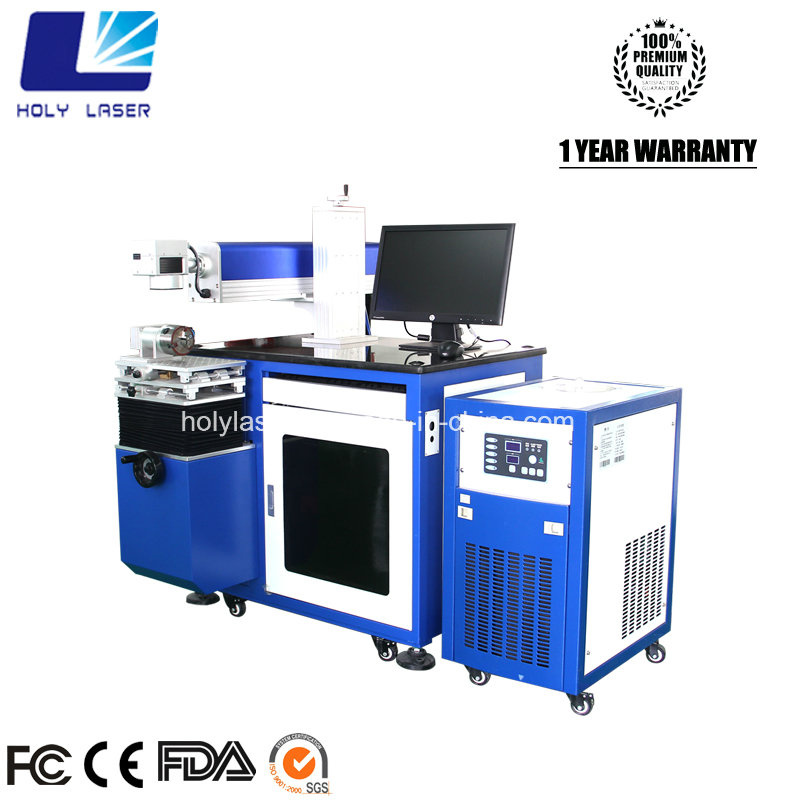

Product Pictures
Technology Parameters
| Model | DESKTOP-A | DESKTOP-W | PORTABLE-A | |
| Laser Source | USA COHERENT | |||
| Max.Working Area | 70*70/110*110/140*140/175*175MM | 70*70/110*110MM | ||
| Laser Power | 30W/60W/100W/150W | 30W | ||
| Laser Module Lifetime | >=20000 hours | |||
| Max.Working speed | 0-7000 mm/s | |||
| Making Depth | 2-6mm | |||
| Min.line width | 0.1mm | |||
| Response Time | 0.8ms | |||
| Laser wavelength | 10.64 ± 10nm | |||
| Cooling | Air Cooling | Water Cooling | Air Cooling | |
| Power supply | AC220V or AC110V ± 10% 50HZ | |||
Application
The use of carbon dioxide laser, is a common model, after focusing mode, small size, high degree of
integration. The machine for the vast majority of non-metallic materials marking, such as paper packaging,
plastic products, label paper, leather fabrics, glass ceramics, resin plastic, bamboo products, PCB board.
1) used in medicine, such as pharmaceutical paper packaging, pharmaceutical glass packaging
2) used in the cosmetics industry, such as paper boxes, glass boxes, plastic boxes and so on
3) applied to tobacco line, such as each cigarette to be marked with regional codes
4) food and beverage packaging
5) wine on the box
6) clothing accessories
7) electronic components, such as capacitors marked on the certification mark
8) chemical products on
9) building materials on the identification of PVC pipes and so on
10) manufacturers LOGO logo text information

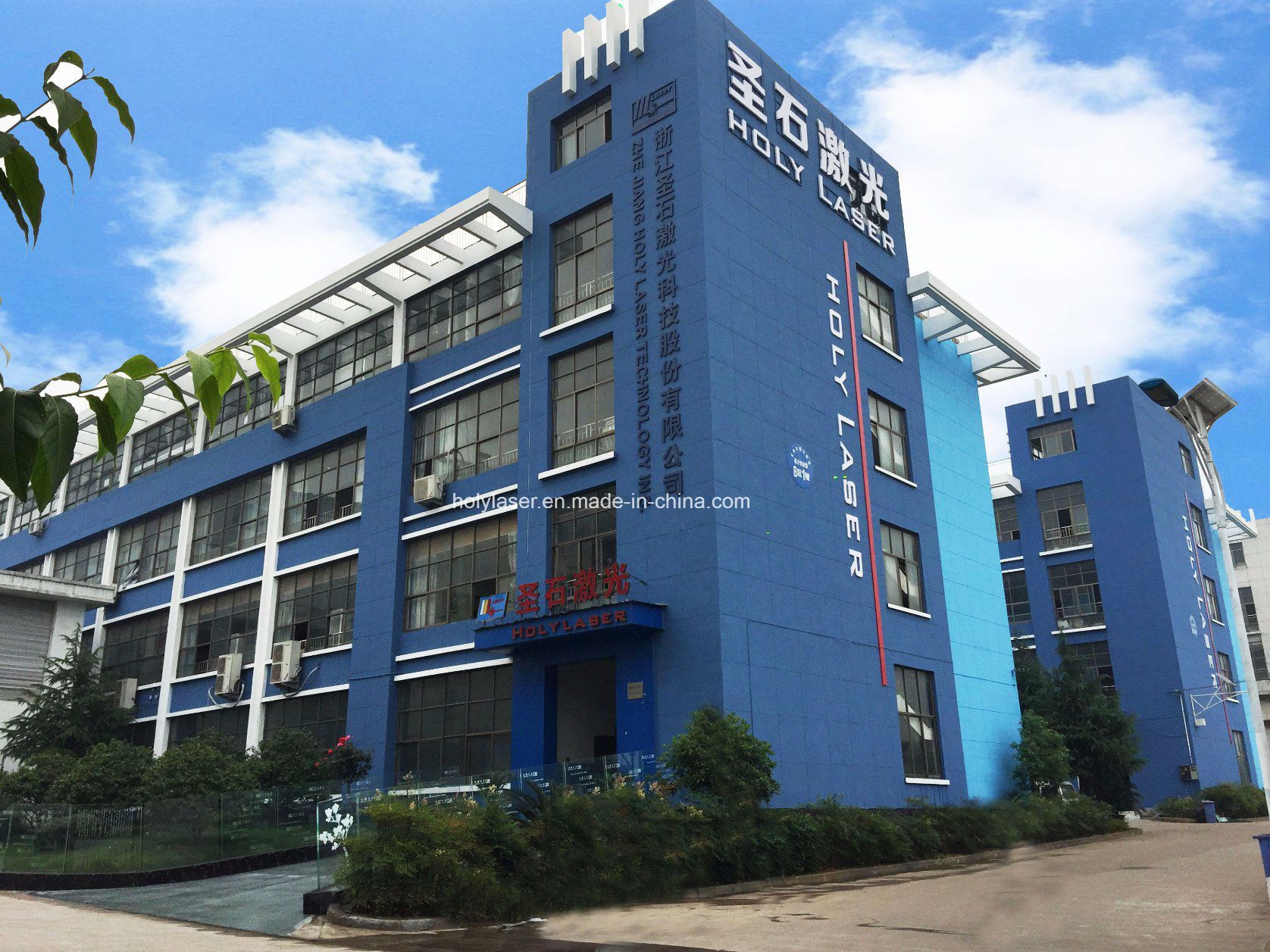

Factory & Workshop
Holy Laser ,we are professional laser equipments and 3D printing Series machine manufacturer located in
yiwu as a listed company.We are selling these machine to all over the world ,South America,Europe,middle-
eastern,Asia countries.etc.For now we already have Exclusive agents in these countries:Turkey ,Algeria,Italy,
Spain,Bangladesh,UAE United Arab Emirates,Israel,Jordan,Lebanon,Palestine,Mexico.
