Jinan Hongye CNC Machine Co., Ltd. >> Color Plate Lettering Badge Production Ql-1224 Advertising CNC Router

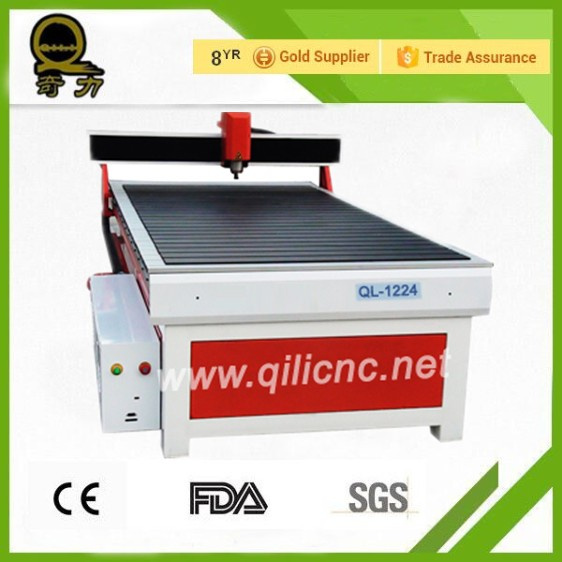

Color Plate Lettering Badge Production Ql-1224 Advertising CNC Router

Color Plate Lettering Badge Production Ql-1224 Advertising CNC Router
Price: US $ 2400/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T

Product Specifications


Prod Model: QL-1224 QL-1325 QL-1212 QL-1218
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Optional
Engraving Machine Type: CNC Engraving Machine
Working Area: 1200*2400*120mm

Product Description

Product Features
1. German double-nut ball screws and imported guide rails ensure high precision and perfect effect of both metal engraving and use in advertisement



2. Linear guide ensures a longer life of the machine;
3. High-speed driver;
4. Axis X with dust-proof system ensures the good performance of the machine;
5. The CNC Engraving Wood Machine continues to work after the point-break and blade-brake, holding as many as 9 points;
6. Strong compatibility: CAD/CAM software, including type, artcarm, castmate, proe, corelerow...
7. Wide Range of Use: Advertising, mould, stone, architecture model...


Standard Configurations
O Steel-structure bed and table of sectional material
O Three axis with imported round guides and double ball screw nuts

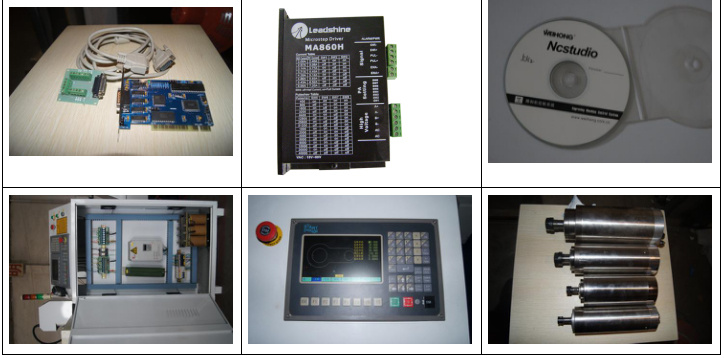

O NCSTUDIO system
O 1.5W water-cooling transducer motor
O Leadshine driver

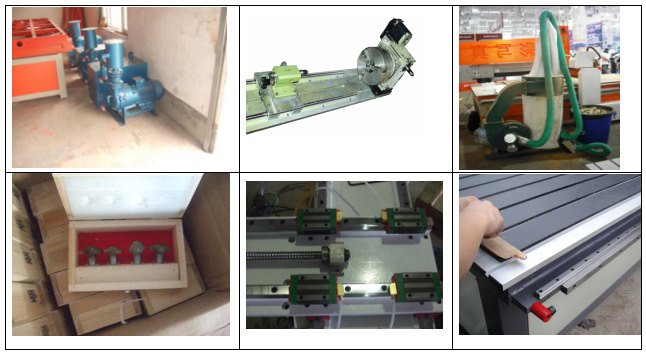

O Optional: 2.2KW Dust Collector, water sink, square guides, rotary, servo motor, vacuum system, higher-power spindle and more as your request.

Application
Material: Various wood materials; Aluminum, plastic; PVC, acrylic, double-color board, MDF, crystal plate and other advertising materials; And soft man-made marble and other non-metallic materials and light metal.
  X/Y Working Area  1200mm*2400mm
  Z Working Area  120mm
  Table Size  1340mm*2680mm
  Maximum Speed  6m-7m/min
  Maximum Working Speed  3m-3.5m/min
  Dpi  0.005mm
  Repositioning Accuracy  0.05mm
  Feeding Height  120mm
  Command Code  G Code, *. u00, *. mmg, *. plt
  Working Software  Windows 98/2000/xp
  Power (not including spindle)  550W
  Working Voltage  AC220V/50Hz
  Spindle Power  1.5KW
  Spindle Running Speed  0-24000rpm
  Motor  Stepper


if you have any questions, pls kindly contact with me

contact
seagle yang






Jinan Hongye CNC Machine Co., Ltd., is a professional manufacturer for CNC Routers, Laser Engraving Cutting Machines and Vinyl Cutting Plotters. Since the company has been founded, devotes in carves the CAD/CAM technology, the CNC numerical control technology research and development, makes the considerable progress in the precision engraving machine design theory and the processing technology aspect, the success has realized the automation control technology the process which transforms to the industrial production. The wonderful strength product selection fine fitting, vigorously promotes the packaging technique, caused the product to move toward stably, in the advertisement profession, the carpentry profession, in the metal mold profession held the small space.

The wonderful devoting for in the national relatively well-known product brand, by it especially superior performance-to-price ratio, high quality perfect and the post-sale service, the market share expands unceasingly, has determined Qi Li in same profession status gradually. The wonderful strength person presently unceasingly develops the innovation by the full enthusiasm, carries forward ours brand, realizes the product multiplication, will be better, a more superior product to offer to the user community.
