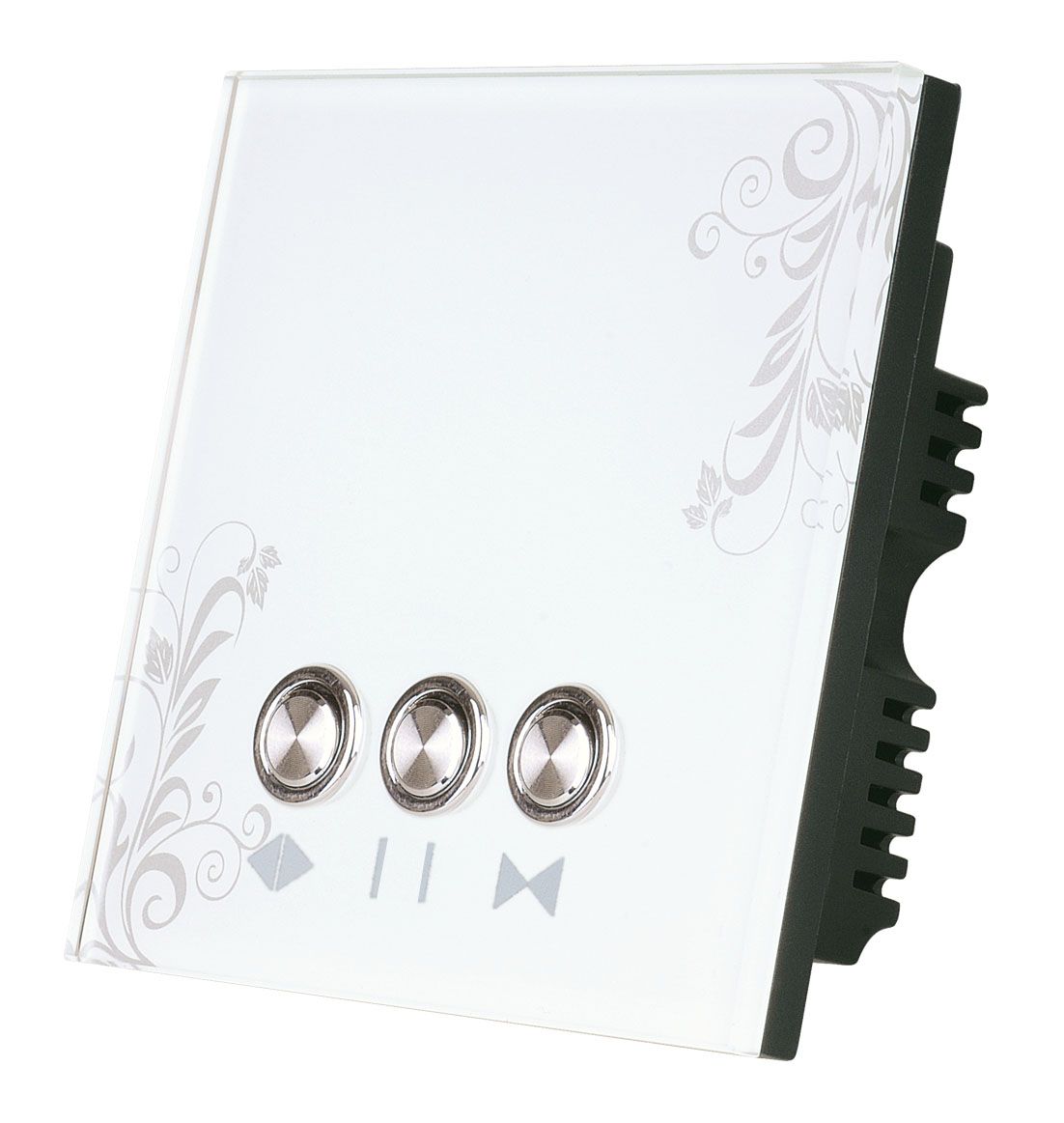

Crystal&Elegant Smart Remote Curtain Controller Switch

Smart Curtain Controller
3.1 Single curtain controller
The smart curtain controller adopts RF wireless technology. It receives the command from remote controller and smart host to realize remote control works with curtain motor and track.
3.1. 1 Feature
(1) Easy to install, built-in limitation controller
(2) Safe and stable with over current protection
(3) AC power driver, no need converter
(4) Low noise dealing
(5) Belt driver, widely used in family or office
3.1. 2 Technical
Working voltage: AC220V± 10% 50/60Hz
Output voltage: AC220V± 10% 50/60Hz
(3) Working frequency: 303.825/315/433.92MHz
(4) Sensitivity: -108dBm
(5) Remote distance: 30m
(6) Environment temperature: -10~+50
(7) Environment humidity: <85% RH
(8) Dimension: 86× 86× 35mm
(9) Connection: Live wire + neutral wire
3.1. 3 Installation
Same to smart switch
3.1. 4 Wire connection
Please cut off power before installation and connect the wire according to the instruction.
Note: It is forbidden for shot circuit or connect the live and neutral wire to one port.
3.1. 5 Pairing
Open: Press the OPEN button on the curtain controller for 5 seconds, the buzzer will sound "Di", then release the button, press the OPEN button on the remote controller, the curtain controller receives signal and sound "Di-Di", the pairing is finished. Press the button again or after 5 sec, the controller quit pairing status.
Stop: Press the STOP button on the curtain controller for 5 seconds, the buzzer will sound "Di", then release the button, press the STOP button on the remote controller, the curtain controller receives signal and sound "Di-Di", the pairing is finished. Press the button again or after 5 sec, the controller quit pairing status.
Close: Press the CLOSE button on the curtain controller for 5 seconds, the buzzer will sound "Di", then release the button, press the CLOSE button on the remote controller, the curtain controller receives signal and sound "Di-Di", the pairing is finished. Press the button again or after 5 sec, the controller quit pairing status.
Delete: Press the button you will delete for 10 sec, the buzzer will sound "Di" at 5 sec, do not release the button, at 10 sec, the buzzer will sound "Di--" longer, then all the pad or remote controller are deleted.
Note:
(1) When the curtain controller is paired by tablet pad, please make pairing OPEN for open function and CLOSE for close function.
(2) Each gang can pair up to 20 different codes, if make the 21st pairing, the 1st one will be covered.
3.2 Double curtain controller
The double curtain controller uses one controller to control two curtain motors and two tracks, used for double layer curtains.
3.2. 1 Installation
Same to smart switch.
3.2. 2 Wire connection
3.2. 3 Pairing
Same to single curtain controller.
3.3 Curtain motor
3.3.1 Technical data
(1) Working voltage: AC220V/50Hz
(2) Working current: 0.2A
(3) Speed: 160rpm
(4) Power: 45W
(5) IP level: IP41
(6) Environment temperature: -10~+50
3.3.2 Installation
Put the axis of the motor to the track connection port, and lock the motor by bolt.
3.3. 3 Wire connection
(1) Connect the black, brown and green wires to the motor, yellow and green wires to the ground.
(2) Change the position of black and brown wire, the motor will be reversion.
3.4 Curtain track
