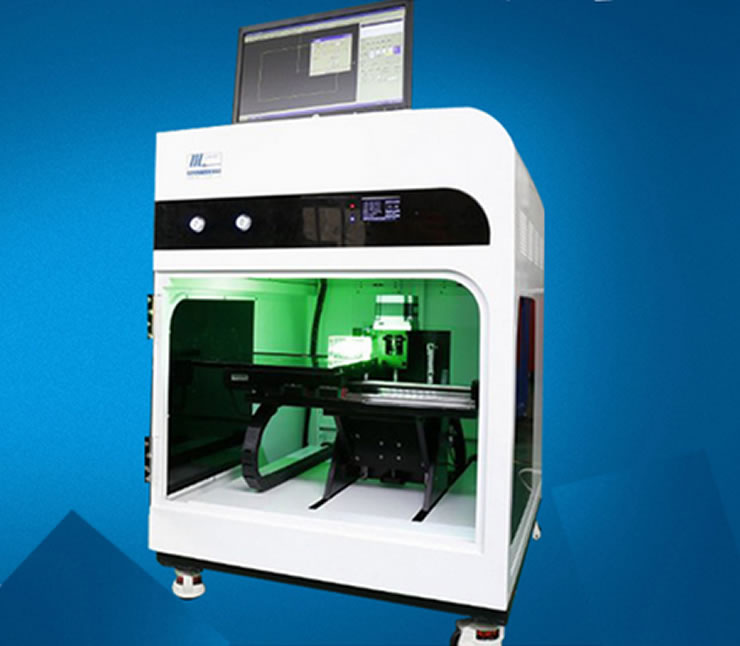

Crystal / Glass Laser Engraving Machine with High Engraving Speed
Feature:The hardware of the control system is made of speed, galvanometer scanning and full automatic five axis linkage. The multi motor control and early warning function of the system are realized.
Body structure, exquisite appearance, more in line with light, machine, electricity layout.
This product has been CE, FC, a number of utility models patent certification, all electrical devices comply with 3C certification.
Provide a copy of the HOWLASER calculation point and the original copyright certificate of the engraving software
A copy of the patent certificate of utility model for HOWLASER laser is provided
532nm laser from the king's R & D, production and maintenance capabilities, and has a king independent, one million laser purification workshop, engraving machine production workshop for field trips.| FYD-03 | technical data |
| laser power | 3W |
| Maximum pulse energy | 1.2MJ |
| Maximum engraving range | 150*200*80mm |
| Laser pumping | Semiconductor diode |
| Laser wavelength | 525nm |
| Laser lifetime | 25000hour |
| Stability and refrigeration | ≥24(Continuous processing)Cold wind |
| Maximum frequency of laser power supply | 3Khz |
| Laser pulse/Resolving power | 7ns/800-1200DPI |
| Engraving speed | ≤3000points/sec |
| Machine power | ≤1.2KW |
| Dynamic axis response time | ≤1.2MS |
| Work power | AC220V±10%/50-60HZ |
| Repeatability positioning accuracy | ±0.001mm |
